Labgear Products Uk

Labgear All In One 4k CCTV Meter

All In One CCTV Meter 4K/H265/IP with Digital Cable Tracer

Compact 5-in-1 CCTV Tester Kit with Digital Cable Tracer

Designed for testing installations of IP, analogue and HD coaxial cameras as well as other security equipment.

The tester supports several ONVIF PTZ and analogue PTZ controls.

There’s no need carry a variety of testers, this compact all-in-one unit is designed to make CCTV installations and service work simpler.

Compact 5-in-1 CCTV Tester Kit with Digital Cable Tracer


£0.00
£359.99

QTY


Labgear All In One 4k CCTV Meter 50037pi

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Labgear All-in-One CCTV Meter, a compact device that simplifies CCTV system management. With a high-resolution display, it provides real-time video signal monitoring for optimal image quality. Compatible with various formats and cameras, it streamlines installation with voltage measurement, signal testing, and cable checks.

This meter also offers advanced features like PTZ control testing, audio analysis, and network connectivity assessments, ensuring a thorough examination of your CCTV system. Portable and durable, it's the ideal tool for on-the-go professionals, providing efficient and accurate diagnostics for peak performance.

Stay ahead with the All-in-One CCTV Meter – your solution for hassle-free surveillance system optimization.

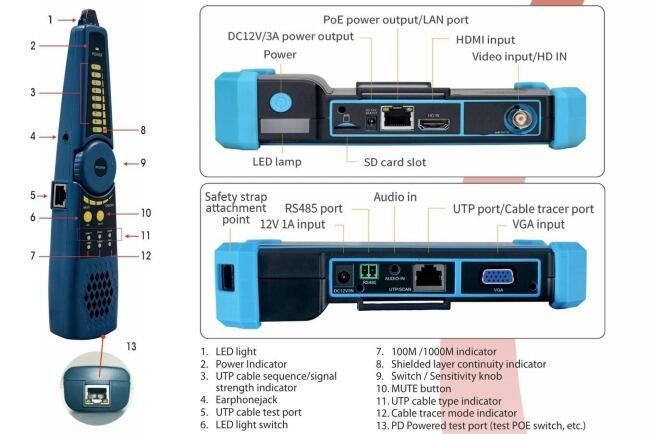

Kit Contents

  • 1x CCTV tester unit with built-in Li-ion battery (7.4V DC 3350mAh)
  • 1x Digital network cable tracer
  • 1x 12V 1A Plug-in charger/PSU
  • 1x Hard protective carry case
  • 1x 3.5mm Jack to crocodile clips test lead
  • 1x RS485 to crocodile clips test lead
  • 1x Jack power test lead
  • 1x BNC test lead
  • 1x Wrist strap 1x Safety cord 1x User guide

Applications:

  • CCTV system installation
  • Network cabling projects
  • 4K H.265 IP camera testing
  • Video transmission channel testing
  • PTZ controller
  • Camera tests:
  • AXIS, Hikvision camera test, enter ONVIF app,input username and password to test
  • CVBS camera test and PTZ control
  • IPC TEST (Non – ONVIF test), HIK test tool (Hikvision camera),
  • DH test tool (Dahua camera)
  • IP discovery, one key to detect all network cameras IP addresses
  • Rapid video, one key to detect all network cameras and auto display
  • DC12V 3A power output/PoE DC48V power output, Max power 25.5W
  • Built in Wi-Fi, display image from the wireless camera, creates a Wi-Fi hotspot
