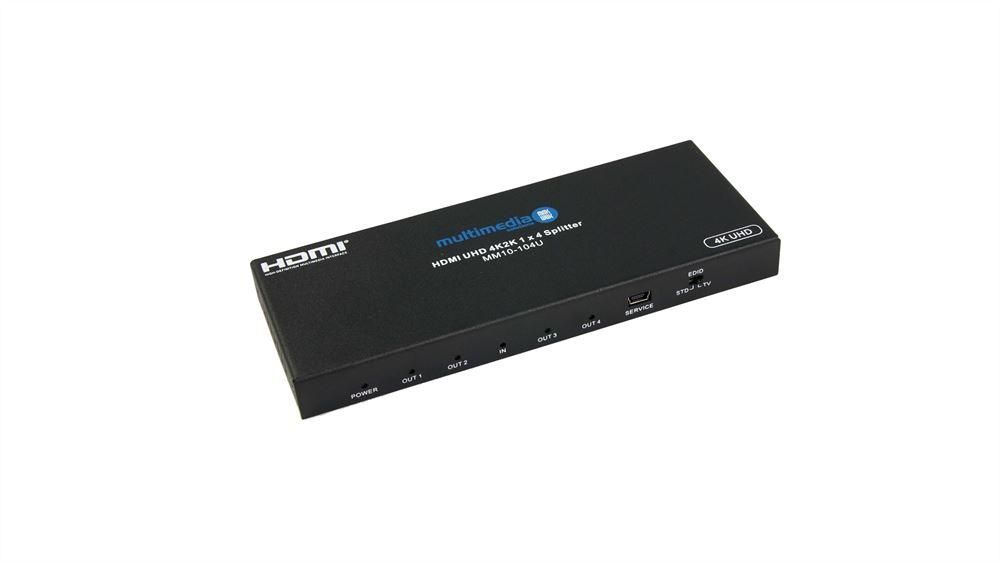

MMS HDMI 1x4 4K Splitter MM10-104U

MM10-104U - 1 x 4 HDMI GREEN Series 4K Splitter
Multimedia Solutions

MMS HDMI 1x4 4K Splitter MM10-104U

Ultra HD 4-way splitter HDMI 2.0 HDCP 2.2 4K2K 60Hz (fps)

High-performance 4-way HDMI splitter designed for professional installations, distributes a single HDMI source to 4 HDMI outputs. Supports high-definition display resolutions up to 4K (60Hz, 60fps).

  • HDMI splitter ideal for professional installations
  • Distribute an HDMI source to 4 HDMI outputs
  • Smart EDID control for optimum display settings
  • Supports up to 1080p Full HD resolution @60Hz
  • Ultra-HD support: 4Kx2K 24-bit @30Hz and up to 4Kx2K @60Hz, 36-bit colour
  • DTS-HD Master Audio, Dolby TrueHD and LPCM 7.1CH digital audio formats
  • 18Gb/s video bandwidth (600MHz)
  • Compliant with HDMI 2.0b, HDCP 2.2
  • SKU:-122321

See our range of HDMI Cables

Trade log in

£0.00
£43.04

QTY


MM10-104U - 1 x 4 HDMI GREEN Series 4K Splitter

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Ultra HD 4-way splitter with HDMI 2.0 and HDCP 2.2 is a device that allows you to distribute a single HDMI source signal to four separate displays simultaneously, while maintaining high-quality Ultra HD (4K) resolution and HDCP 2.2 copy protection.

Here's what each of those terms means:

HDMI 2.0: This is the latest version of the HDMI (High-Definition Multimedia Interface) standard, which supports higher resolutions (up to 4K at 60Hz) and greater bandwidth (up to 18Gbps) than previous versions.

HDCP 2.2: This is a copy protection protocol that is designed to prevent unauthorized copying of digital content, such as movies and TV shows. It is required for most 4K content, so any splitter that supports 4K must also support HDCP 2.2.

4-way splitter: This refers to the number of outputs on the splitter. In this case, there are four, meaning that you can connect to four separate displays to the splitter.

MMS Ultra HD 4-way splitter with HDMI 2.0 and HDCP 2.2 is a useful device for anyone who needs to distribute high-quality 4K content to multiple displays, such as in a home theatre or commercial setting.

Model MM10-104B 1 x 4 HDMI splitter

Input HDMI 2.0 female HDMI 2.0, HDCP2.2 & DVI 1.0

Output 4 x HDMI 2.0 outputs female

HDCP Protocol HDCP2.2

HDMI 2.0 format 3D support for all 3D formats up to 1080p at 60Hz (fps)

Resolution support (1) 480i ~ 1080p @120Hz : 1080p 3D @ 60Hz

Resolution support (2) 4K x 2K at 30fps 24bit RGB/YCBCR 4:4:4 / YCBCR 4:2:2 : Up to 4K2K@60Hz 12bit YCBCR 4:2:0

Digital Audio Format DTS-HD/Dolby True HD/LPCM 7.1/DTS/Dolby-AC3/DSD

Video Bandwidth 300Mhz / 10.2Gbps

EDID Mode Supports smart EDID control

LED Indicators Power : Source connected : Output connected & active

Power requirement 5V / 1.0A PSU adapter included with UK standard plug top : Max consumption 1.5W

ESD Protection ±8kV (air gap discharge) : ±4kV contact discharge

Dimension / Weight 56 x 96 x 17mm / 100g

Operation temperature 00C to 400C
