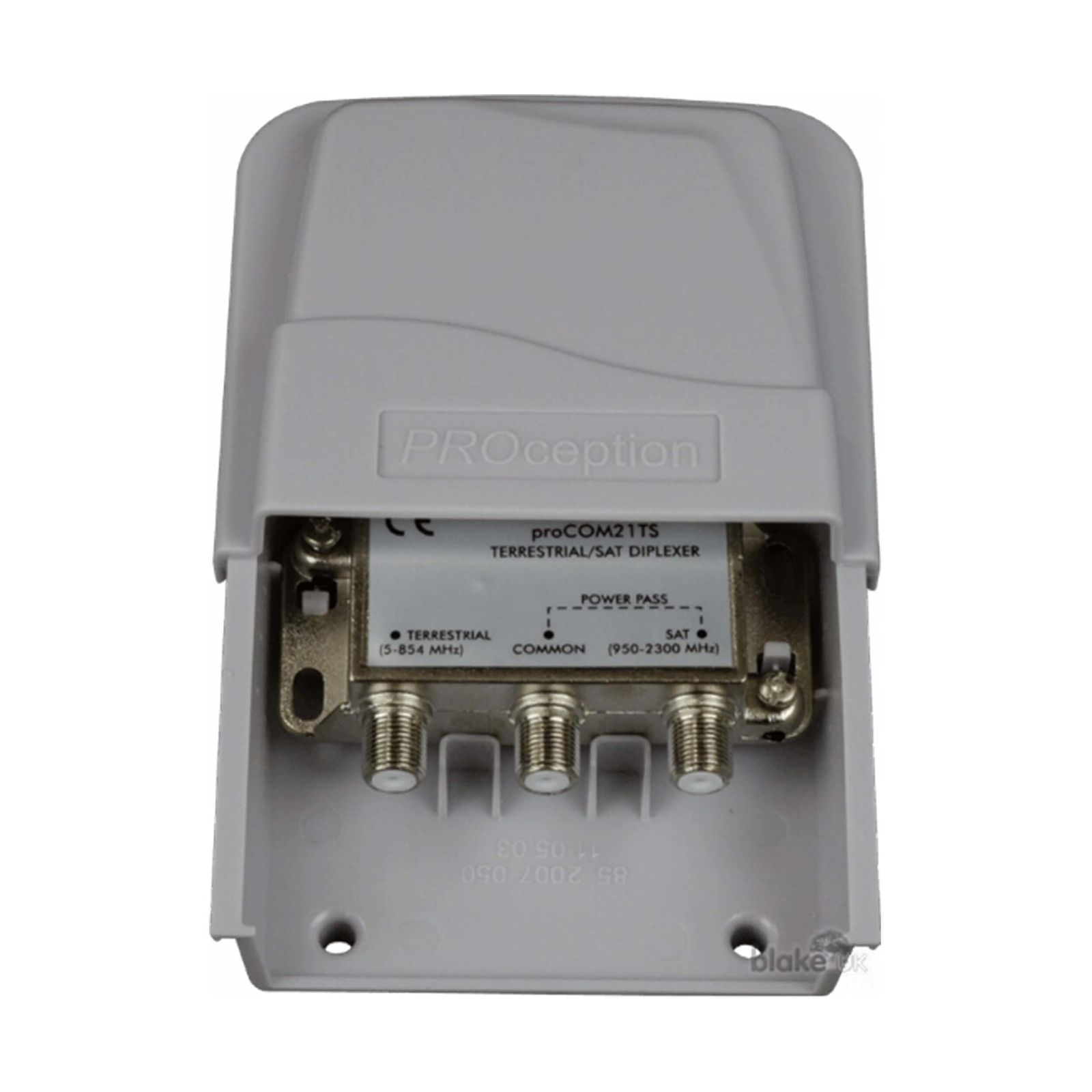

Masthead Diplexer – Satellite & Terrestrial Signal Combiner

The Proception Masthead Diplexer is a high-performance RF device designed for satellite and terrestrial TV installations. It combines signals from a satellite dish and a terrestrial aerial onto a single coaxial cable, simplifying cabling and improving installation efficiency in residential and commercial TV distribution systems.

Engineered with high-isolation frequency-selective technology, this masthead diplexer ensures minimal signal interference between satellite IF and terrestrial UHF/VHF bands, maintaining strong and stable signal performance.

Designed for professional installation environments, the unit is fully screened and housed in a robust diecast enclosure with strong cast-in F connectors for long-term durability. It is suitable for both indoor and outdoor use.

Features

  • Combines satellite and terrestrial signals onto a single coaxial cable
  • High-isolation frequency-selective RF design
  • Supports terrestrial bands from 5–854MHz plus satellite IF
  • Fully screened diecast enclosure for durability and interference protection
  • Strong cast-in F-type connectors for secure connections
  • Power pass support (20V, 400mA max) to selected port
  • Includes Band III support for DAB and TV signals
  • Equipped with an equipotential bonding point
  • Suitable for indoor and outdoor installations
  • Professional-grade signal combining and splitting unit

Trade log in

£0.00
£23.82

QTY


Masthead Diplexer | Satellite & Terrestrial TV Signal Combiner (5–854MHz)

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Used in situations where both satellite and terrestrial signals are needed, but only one cable can be run to a receiver.

The diplexer is installed at the masthead, which is the point where the satellite dish and terrestrial antenna cables converge. It works by separating the satellite and terrestrial signals into separate frequency bands and directing them to the appropriate output port.

The diplexer typically has three ports: a satellite input port, a terrestrial input port, and a combined output port. The satellite input port is connected to the satellite dish, the terrestrial input port is connected to the terrestrial antenna, and the combined output port is connected to the coaxial cable that runs to the receiver.

The diplexer is designed to provide minimal signal loss and distortion, and it typically has a high-quality construction to withstand harsh weather conditions.

Terrestrial Satellite Masthead Diplexer is a useful device for combining satellite and terrestrial signals onto a single cable in satellite TV installations, and it allows for the efficient use of cabling without compromising signal quality.

Technical Information:


Terrestrial Port

Satellite Port

Operating frequency range

5 .. 854MHz

950 .. 2300MHz

Insertion loss

=1.5dB1

=2.5dB2

Isolation in Band II (FM)

-

-

Isolation in band III (DAB or TV)

-

-

Isolation in Bands IV-V (UHF)

-

-

Isolation in terrestrial band

-

=36dB

Isolation in SAT band

=36dB

-

Line-power pass from common port

No

-

Line power-pass ratings

20V max. at 250mA max.

Signal Connector Type

Type-F (IEC 60169-24)

Operating temperature range

-20 .. +50C

EMC standard

BS EN 50083-2:2001 (Class B)


Product

Type

HF RTN

VHF B II

VHF B III

UHF B IV-V

Terr.1 Wide

SAT IF

Isolation VHF/UHF2

Isolation UHF/SAT2

PROCOM21TS

Diplexer

-

-

-

-

?

*

-

=50dB

PROCOM31T

Triplexer


?

?

*

-

-

=30dB

-

* Return band: 5 - 30MHz. 1 All 'terrestrial' bands: 5 - 854MHz. 2 See full data sheet for detailed insertion loss and isolation info.

Symbols: ? dedicated band input; band covered by UHF input; * band input with power pass to COM port.


1.= 2.8dB in band edge region 780 .. 854MHz 2.= 5.5dB in band edge region 950 .. 1100MHz

3.= 0.7dB in return-path band 5 .. 30MHz 4. Applied over 5 .. 854MHz - typical performance >60dB

5.= 23dB in band edge region 950 .. 1100MHz 6.= 2.7dB in band edge region 780 .. 862MHz
