Triax United Kingdom

Triax QR12 Lte700

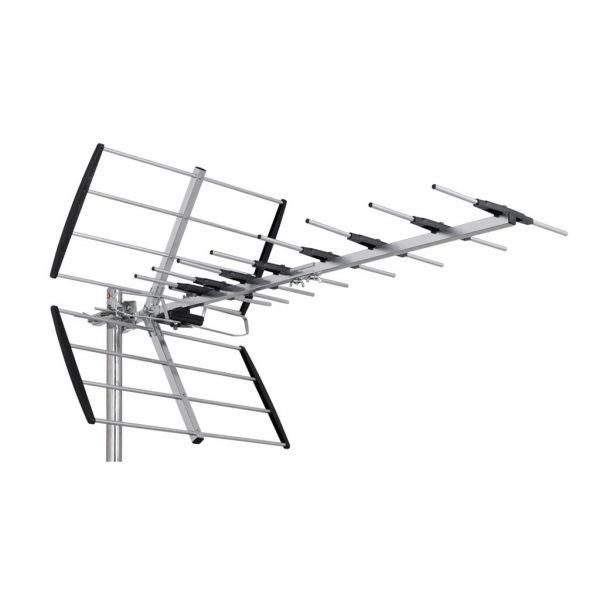

Industry standard leading yagi aerial, 21-48 12dBi

Triax QR12 Lte700 21-48 12dBi is a directional antenna designed for use with LTE700 cellular networks.

  • LTE Protected

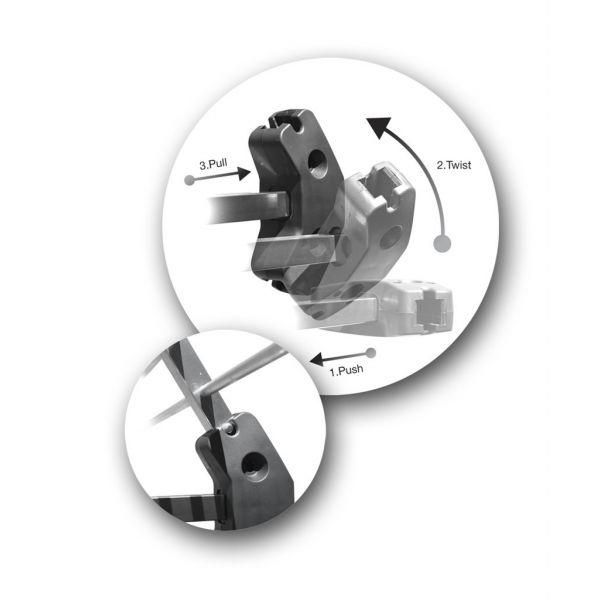

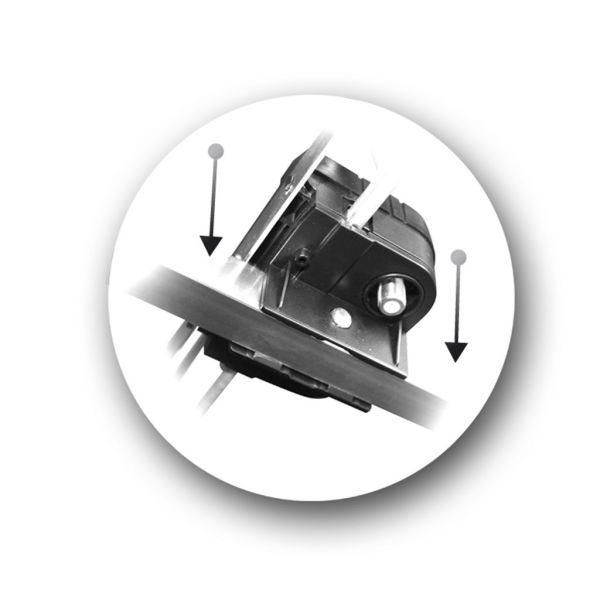

  • Tool free assembly - Quick lock dipole and reflector
  • Strong, rugged construction
  • F-Connector dipole housing
  • Excellent F/B ratio and performance across the whole UHF band

SKU :- 108070

Trade log in

£0.00
£34.67

QTY


QR12 Lte700 21-48 108070

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Intended for outdoor use and features a gain of 12dBi, which means it can amplify the signal strength of the LTE700 network.

The "21-48" in the product name refers to the frequency range that the antenna can operate within, which is 698-806 MHz. This is the frequency range used by the LTE700 network in many countries.

The antenna is manufactured by Triax, a company that specialises in the design and manufacture of antennas and other communication equipment. The Triax QR12 Lte700 21-48 12dBi is designed to be mounted on a mast or pole and can be used in a variety of applications, including rural broadband, remote monitoring, and machine-to-machine communication.

ORDER INFORMATION

  • EAN Number      5702661080708
  • CHARACTERISTICS
  • Antenna use      outdoor
  • Polarization        vertical or horizontal

FREQUENCY RANGE

  • Band      UHF
  • Channels             21...48
  • Frequency range              470-694 MHz
  • LTE protection   @ 700Mhz
  • CONNECTORS
  • Connector Type 1 x F connector, 75 Ohm

MECHANICAL

  • Elements             12
  • Windload @42 m/s         58 N
  • Beamwidth horizontal    ± 18 °
  • Bracketry             Mast bracket - rear
  • Main material    Aluminium
  • Weight (kg) TB(D)            1.25 kg
  • Colour   Black

Packaging            Scantainer

  • Packing QTY        65
  • Product Length 1010 mm
  • Product Width   555 mm
  • Packaging Height              0.000 m
  • Packaging Width               0.000 m
  • Packaging Depth              0.000 m
  • Packaging Volume           0.000 m3
  • Net Weight         1.290 kg
  • Tara Weight       0.068 kg
  • Total Weight      1.358 kg

GAIN

  • Gain       12 dBi
  • ELECTRICAL
  • Front to back ratio - horizontal   >20...26 dB
  • Impedance         75 Ω
