Pyronix Deltabell E G2 Module

Pyronix Deltabell E G2 Module
Pyronix Security

Pyronix Deltabell E G2 Module

  • Audible and visual deterrent
  • Lid, base, and power tamper protected
  • Various colour combinations available

Trade log in



Pyronix Deltabell E G2 Module

Share the love with your friend

Complete the form below and we'll email your friend about this product

You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

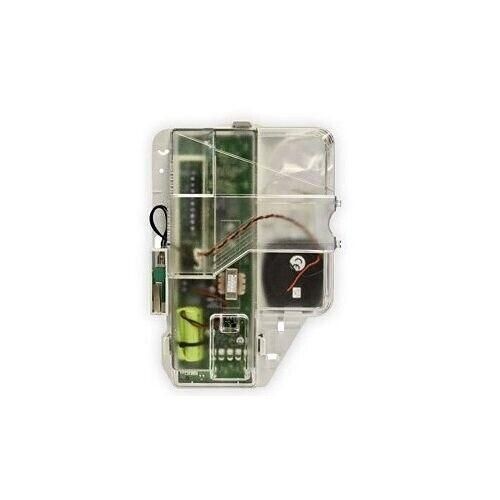

The Deltabell E, a standard warning device for wired installations, serves a dual purpose by delivering both audible and visual deterrence. In the event of an alarm, this device effectively notifies nearby individuals through its low-power, high-performance piezo and a flashing strobe, ensuring that both auditory and visual warnings are provided simultaneously.

  • Loudness    104 dB(A)
  • Optional comfort LED    Yes
  • Sound and light indication on alarm    Yes
  • Engineer hold off    Yes
  • Number of Piezos    1
  • Flashing LED    Yes
  • Comfort LED    Yes
  • Back-lit    No
  • Tamper protection    Yes
  • Strobe duration and frequency    10mS, 1Hz
  • Sounder maximum duration    15 mins
  • SAC (self actuating bell) / SAB (self activating bell) option    Yes
  • Self levelling    Yes
  • Environmental and operating features
  • Certified operating temperature    -25C to 60C
  • Nominal operating temperature    -30C to 60C
  • Physical dimensions (H x W x D)    290 x 285 x 50mm
  • Electrical & battery
  • Battery type    NiMH 7.2V, 250mAh
  • Battery life    2 - 5 years
  • Operating voltage    9-16V
  • Alarm current    <250mA
  • Quiescent current consumption    <30mA
  • Certifications and warranty
  • Security Grade    Grade 2 and 3
  • Environmental class    IV
  • EN Certificate    EN50131-4:2009
  • Certification type    Self-certified
  • Electrical conformity    CE
  • Warranty    2 Years
