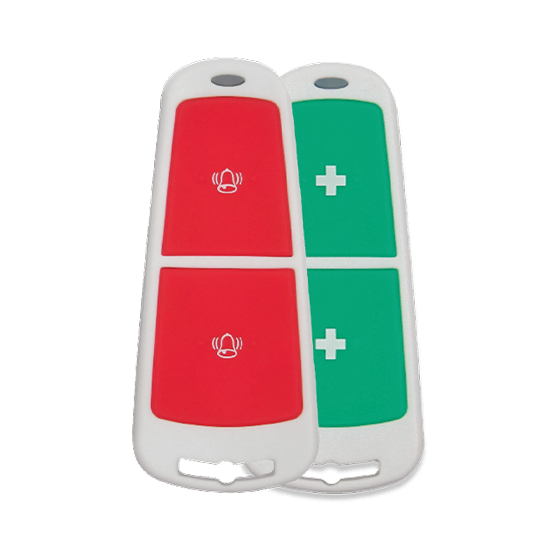

HUD/MED-WE Two-way wireless Hold Up Device


Raise the alarm in an emergency

Medical keymat also supplied

Enforcer two-way wireless technology

300m wireless range


LED signal strength indicator

Easily replaceable battery

Comes with lanyard, keyring, belt clip and wall mount options for ultimate flexibility

Compatible with the UR2-WE



Pyronix HUD/MED-WE

Share the love with your friend

Complete the form below and we'll email your friend about this product

You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

With a wireless range of up to 300m in open space, press the centre of both buttons down for two seconds and the alarm is activated. Furthermore, if the system is connected to an Alarm Receiving Centre (ARC) they will be alerted immediately.

Loaded with great features and extras, including: one-push-to-learn, LED signal strength indicator, an easily replaceable battery, positional press marks and the option to modify it to a Medical Alert (MED).


Whether in a nursing home or a hospital, there could be a MED next to every bed, in every ward or worn by staff. This could provide much needed reassurance to families or patients, as well as deliver an immediate alert of any incidents, such as falls, faints or other medical emergencies.


If the user works in warehousing, shipping or any other dangerous environment, this device could be used as a compulsory part of the uniform to signal for help. So, should any employee become trapped or injured, help can be signalled quickly and effectively.

Banks, offices, shops

As the HUD is subtle in design and wireless, with multiple wearing options, it can be easily positioned in various locations to raise an alarm, such as: under desks, on a keyring or on a safety lanyard. So, should there be any danger or need, such as witnessing an intruder breaking in, being confronted or vandalism taking place, the user can inconspicuously activate an alarm condition.

The new HUD can also be used in schools for teachers to wear, in nurseries or playschools, leisure centres, arenas, city halls or even prisons. Whether worn directly by individuals, subtly positioned or obviously positioned, the HUD/MED can be utilised to raise an alarm to generate the desired reaction, whether medical help or a direct police response.

(Depending upon programming – please speak to your engineer regarding this).

Please note that the HUD/MED-WE is only compatible with the Wireless HUB version 3.54. It is not compatible with the UR2-WE.

Setting devices technical characteristics

Hold-up function              Yes

LED indication    Red, Amber, Green

Two-way wireless technology     Yes

Enforcer two-way wireless technology

SSI (Signal Strength Indicators)   Yes

One push to learn            Yes

Transmission method    Fully encrypted rolling code

Environmental and operating features

Storage temperature     -20°C to +50°C

Certified operating temperature               -10°C to +40°C

Nominal operating temperature -10°C to +50°C

Dimensions (H x W x D) 72 x 30 x 20 mm

Electrical & battery

Battery type       CR1/3N

Battery voltage 3V

Threshold            2.1V +/- 5%

Certifications and warranty

Security grade   Grade 2

Environmental class        II

EN Certificate    EN50131

Electrical conformity       CE

Warranty             2 years
