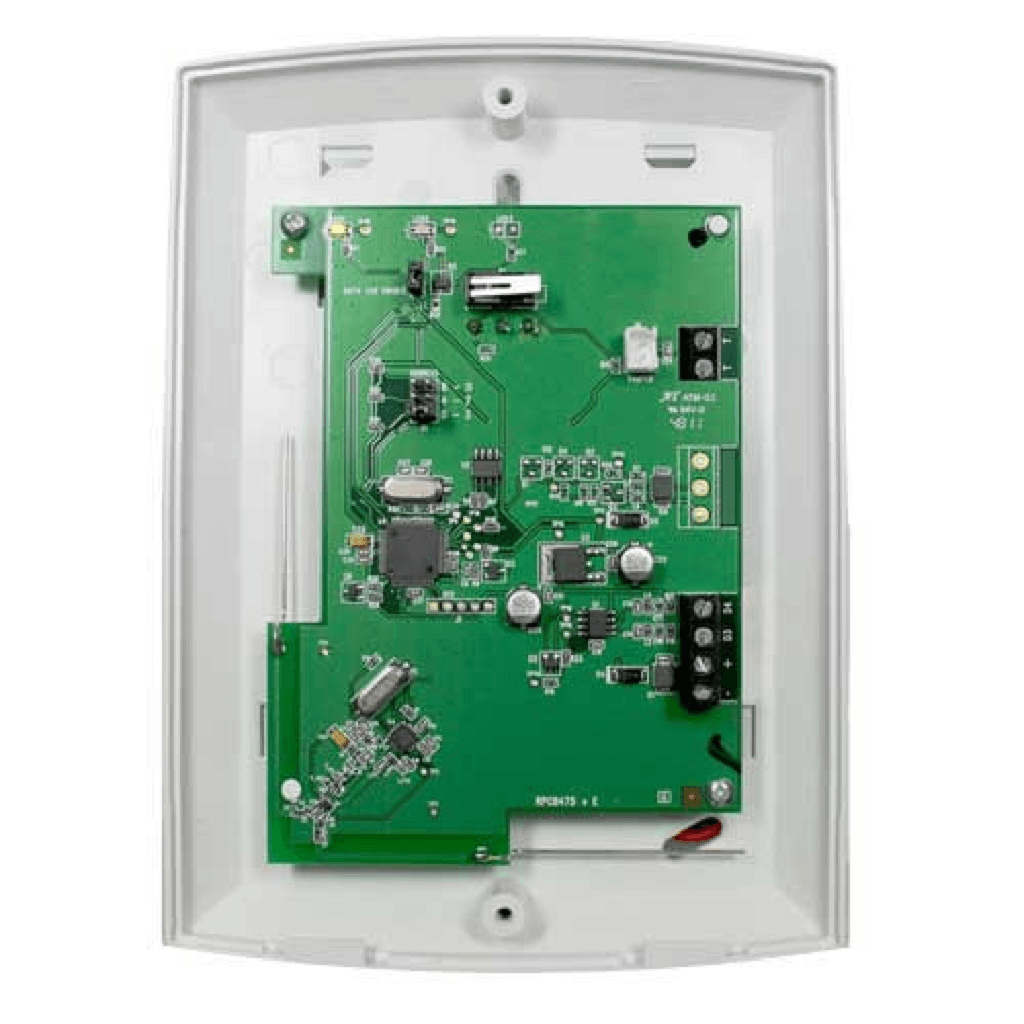

Pyronix Enforcer Wireless EURO-ZEM32-WE Expander 32 Zone

EURO-ZEM32-WE

Pyronix Enforcer Wireless EURO-ZEM32-WE Expander 32 Zone

Expand your Pyronix hybrid control panels with the Enforcer two-way wireless security devices, giving you flexibility in your installations.


Signal Strength Indicator (SSI)

One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time.

Instant two-way Device Control (ITDC)

The ITDC technology enables instant wake-up and instant sleep of each device on the system, allowing continuous communication between the control panel and wireless devices while preserving battery power. This technology not only provides installers with total control of each device, but also gives users peace of mind that they have a reliable and secure wireless system.

Ensuring that all wireless detection devices know when the system is armed and disarmed.
Ensuring that they are awake as soon as the system is armed.

Two-way wireless technology

Each wireless device on the Enforcer system, including movement detectors is a transmitter and a receiver. The wireless technology used on the Enforcer system holds a significant advantage over one-way and some two-way wireless products currently available on the market.

  • SPECIFICATIONS

    Pyronix High Security Wireless Protocol Encryption

    The two-way wireless protocol has been developed by Pyronix to ensure that the communication between all wireless system components is protected on a very high security level. The protocol uses the 128 bit Pyronix advanced encryption.

    Input and output expanders technical characteristics

    Plastic housing

    Yes

    Tamper protection

    Front and rear

    Enforcer two-way wireless technology

    Instant two way device control (ITDC)

    Yes

    Pyronix high security two way wireless data encryption protocol (TDE)

    Yes

    Pyronix intelligent jamming detection

    Yes

    Programmable wireless supervision time

    Yes

    868MHz transceiver FM technology

    Yes

    Tranmission method

    Fully encrypted rolling code

    Transmission range

    1.6 km in open space

    Inputs & outputs

    Two-way wireless inputs

    32

    Two-way wireless keyfobs

    32

    Two-way wireless sirens

    2

    Environmental and operating features

    Storage temperature

    -40C to +80C

    Certified operating temperature

    -10C to +50C

    Nominal operating temperature

    -10 to +50C

    Physical dimensions (H x W x D)

    173 x 125 x 32mm

    Electrical & battery

    Operating voltage

    9V 15V

    Quiescent current consumption

    60mA

    Certifications and warranty

    Security Grade

    Grade 2

    Environmental class

    II

    EN Certificate

    EN50131-1:2006+A1:2009 | EN50131-3:2009 | EN50131-6:2008 | EN50131-5-3:2005+A1:2008

    Certification type

    IMQ

    Certificate number

    CA12.01439

    Electrical conformity

    CE

    Warranty

    2 years

  • DOWNLOADS

    The two-way wireless protocol has been developed by Pyronix to ensure that the communication between all wireless system components is protected on a very high security level.

    The protocol uses the 128 bit Pyronix advanced encryption.

    Input and output expanders technical characteristics


    Plastic housing Yes


    Tamper protection Front and rear


    Enforcer two-way wireless technology


    Instant two way device control (ITDC) Yes


    Pyronix high security two way wireless data encryption protocol (TDE) Yes


    Pyronix intelligent jamming detection Yes


    Programmable wireless supervision time Yes


    868MHz transceiver FM technology Yes


    Tranmission method Fully encrypted rolling code


    Transmission range 1.6 km in open space


    Inputs & outputs


    Two-way wireless inputs 32


    Two-way wireless keyfobs 32


    Two-way wireless sirens 2


    Environmental and operating features


    Storage temperature -40C to +80C


    Certified operating temperature -10C to +50C


    Nominal operating temperature -10 to +50C


    Physical dimensions (H x W x D) 173 x 125 x 32mm


    Electrical & battery Operating voltage 9V 15V


    Quiescent current consumption 60mA


    Certifications and warranty


    Security Grade Grade 2


    Environmental class II


    EN Certificate

    EN50131-1:2006+A1:2009 | EN50131-3:2009 | EN50131-6:2008 | EN50131-5-3:2005+A1:2008

    Certification type IMQ

    Certificate number CA12.01439

    Electrical conformity CE

    Warranty 2 years

VIDEO

SKUSKU: EURO ZEM32-WE
£64.16
£76.99
Inc VAT
Reward points:0

This item is currently out of stock. We’ll notify you when it’s back in stock if you enter your email address in the box below..
