  • Pyronix Wireless Deltabell Module WE
    Piezo sounder technology

  • Various colour combinations available
  • Watertight polycarbonate plastics
  • Pyronix High-Security Wireless Protocol Encryption
  • 868MHz transceiver FM technology

Attractive deterrent

The Deltabell range of security sounders provides a visual deterrent whilst being aesthetically appealing and available in a choice of base and lid colours.

Clean and easy to fit

The wireless Deltabell-WE can be fitted to the exterior of your property with no need to run wires to the control panel, making it quicker and easier to fit with less mess left in your home or business.

Superior performance and security

Enforcer two-way wireless technology is designed to ensure high-security protection for users with easy installation and maintenance for installers. With anti-jamming, high-security protocol and tamper protection, the Enforcer two-way wireless Deltabell sounder provides peace of mind for users and installers alike. 6 colour choices in bases and covers (sold separately)

Expert security with two-way wireless technology

Enforcer two-way wireless technology is designed to ensure high-security protection for users and easy installation and maintenance for installers, utilising award-winning features such as signal strength indication (SSI) and jamming detection.

Signal strength indicator (SSI) & jamming detection

Award-winning features on wireless devices such as Signal Strength Indication (SSI) and jamming detection combine to provide a system that is simple to install while maintaining a reliable and secure wireless connection.

Pyronix Wireless Deltabell Highly secure wireless encryption

128-bit encryption provides effective protection of signals being transmitted by the system and prevents code grabbing. This gives the wireless bus a very high level of security protection.

300m transmission range

The high sensitivity receiver allows a wireless signal range of up to 300m in open space, eliminating the need for repeaters and reducing installation costs.

Customise your Deltabellcovers (covers sold separately) Customise the look of your Deltabell covers with your logo or design of your choice.*

*only available for installers with a minimum order of 40

  • Add 1 x Blue Delta Bell Base
  • Add 1 x White Delta Lid
  • Add 1 x Red Delta Bell Base

Pyronix Delta bell

Share the love with your friend

Complete the form below and we'll email your friend about this product

You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

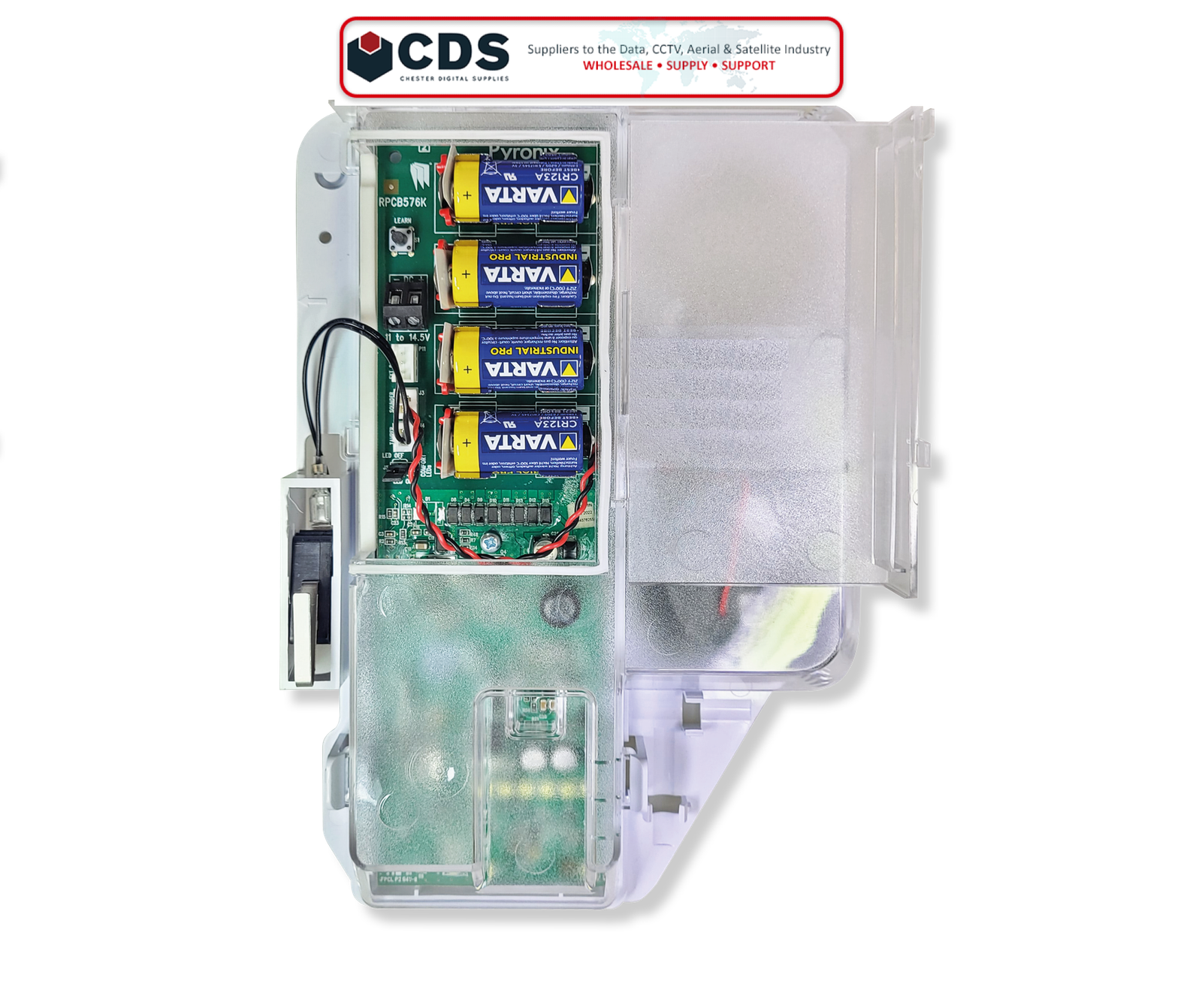

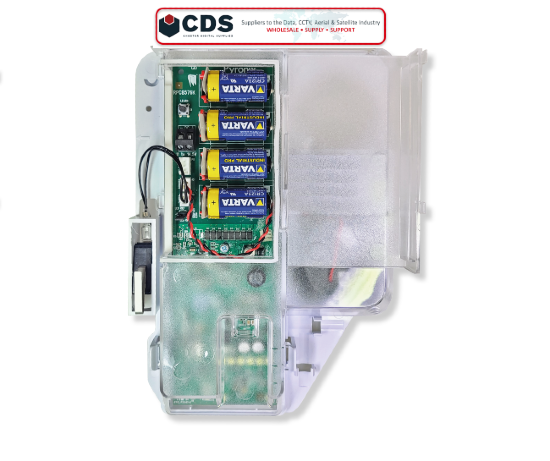

Pyronix Wireless Deltabell Module WE is a wireless sounder module designed to be used with the Pyronix Deltabell range of external sounders for intruder alarms. It is designed to provide a loud and distinctive audible alarm when triggered, alerting occupants, and deterring intruders.

The Wireless Deltabell Module WE is designed to be easy to install and configure, with a simple push-button learning process that allows it to be quickly and easily paired with Pyronix wireless receivers and control panels. It is powered by a single CR123A battery, which provides long battery life and makes it easy to install without the need for wiring.

The module is equipped with a high-intensity LED strobe, which provides a visual indication of the alarm condition and helps to deter intruders. It is also designed to be weather-resistant, making it suitable for use in a range of outdoor environments.

Pyronix Wireless Deltabell Module WE is a reliable and effective wireless sounder module that is ideal for use in residential and commercial intruder alarm systems. When paired with a compatible Pyronix wireless receiver or control panel, it provides a powerful and flexible alarm solution that can be tailored to meet the specific needs of the installation.

Sounders technical characteristics

Sound Output94 dB(A)
Sound and light indication on alarmYes
Engineer hold offNo
Flashing LED StrobeYes
Comfort LEDSelectable Enabled/Disabled
Tamper protectionYes
Strobe duration and frequency10ms, 1Hz
Sounder maximum duration15 mins
SAC (self actuating bell) / SAB (self activating bell) optionYes
External Remote 12 Volt DC InputYes
Built-in Spirit LevelYes
Levelling aidYes

Enforcer two-way wireless technology

Signal Strength Indicators (SSI)Yes
Instant two-way device control (ITDC)Yes
Pyronix high security two-way wireless data encryption protocol (TDE)Yes
Pyronix intelligent jamming detectionYes
Programmable wireless supervision timeYes
868MHz transceiver FM technologyYes
One push to learnYes
Transmission range300m in open space

Environmental and operating features

Certified operating temperature-25C to 60C
Nominal operating temperature-30C to 60C
Physical dimensions (H x W x D)290 x 285 x 50 mm

Electrical & battery

Battery type4 x CR123A
Battery lifeUp to 2 years
Battery low voltage protectionYes
Operating voltage9-16 v
Pyronix Wireless Deltabell Certifications and warranty
Security GradeGrade 2
Environmental classIV
EN CertificateEN 50131-5-3: 2005 + A1: 2008 | EN 50130-4: 1995 + A1: 1998 + A2: 2003 | EN 61000-6-3: 2007
Certification typeIMQ
Certificate numberCA12.01330
Electrical conformityCE
Warranty2 years

PDFSpec Sheet
