Triax Quad Euro Module
Quad TV/Radio/Sat I/Sat II Module (50 x 50mm)
Triax Quad Euro Module is a professional-grade module designed for structured cabling systems that require multi-output TV or satellite signal distribution. With four coaxial outputs, this module allows you to connect multiple devices or signal sources in multi-room setups, delivering a clean and organised installation.
It is designed to fit standard wall plates or outlets, making it ideal for both residential and commercial environments, and integrates seamlessly with other Euro modules.
Features
- Four Coaxial Outputs – Connect up to four devices or signal sources
- Multi-Room Distribution – Ideal for home or office TV and satellite setups
- Modular Euro Design – Fits wall plates and outlets for a neat finish
- Reliable Performance – Secure coaxial connections for stable signal quality
- Durable Construction – Long-lasting and trade-ready
- Easy Installation – Quick setup for professional installers

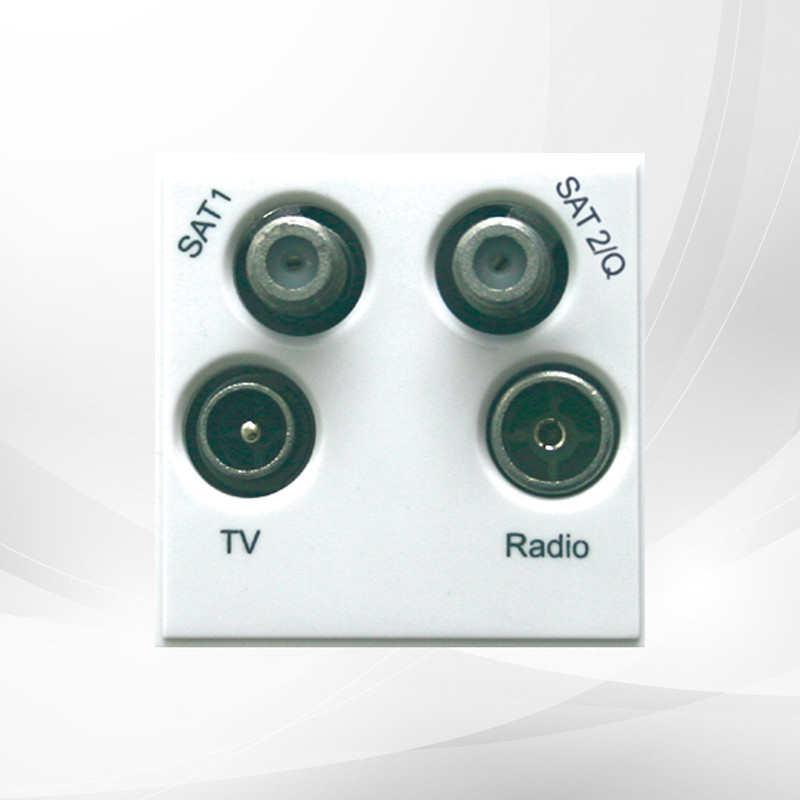

White:-304264

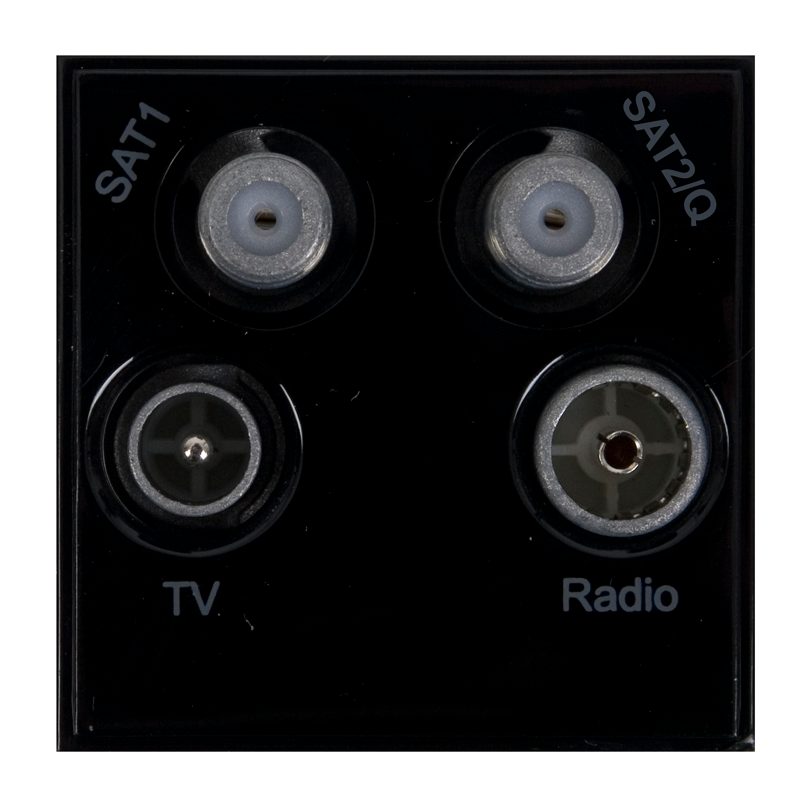

Black:- 304265
£0.00
£11.99
Share the love with your friend
Complete the form below and we'll email your friend about this product
Be one of the first to know!
We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.
Coaxial Connections: The module features coaxial connectors for connecting coaxial cables. These connectors are typically labelled for easy identification and connection of the cables.
Colour: The module comes in white and black, which is a common choice for electrical modules as it tends to blend well with most surroundings.
Compatibility: The Triax Quad Module is designed to be compatible with standard coaxial cables and connectors commonly used in TV and satellite installations. This ensures that you can easily integrate the module into your existing setup.
Signal Distribution: The module allows for the distribution of TV or satellite signals from a single source to multiple devices. This means you can connect a cable or satellite signal to the module and then distribute it to multiple TVs or satellite receivers throughout your home or building.
| EAN Number | 5702663042643 |
| Type | UK Grid style, 50x50mm |
| Return Path | 5...2400 MHz |
| Frequency Range FM | 87.5...230 MHz |
| Frequency Range TV | 470...862 MHz |
| Frequency Range SAT | 950...2300 MHz |
| Frequency Range SAT 2 | 5...2400 MHz |
| Through Loss IN-FM | 3.0 dB |
| Through Loss IN-TV | 2.5 dB |
| Through Loss IN-SAT | 3.0 (1.5 @SAT2) dB |
| DC Passthrough SAT | Yes |
| Connector FM | IEC-female |
| Connector TV | IEC-male |
| Connector SAT | F-female |
| Main material | Polycarbonate |
| Product Height | 50 mm |
| Product Width | 50 mm |
| Colour | White |
| Net Weight | 0,095 kg |
| Tara Weight | 0,019 kg |
| Total Weight | 0,114 kg |
| Remarks | Screened, Two Terminal and Clamp cable entries Fits 15mm Patress Return normally used as SAT 2 DC through power On SAT Return |
Spec Sheet
| Manufacture Link Triax |
