Triax Outlet Link 304139
Triax Outlet Link 304139
Triax United Kingdom

Triax Outlet Link

Connects the TV and return outputs of an outlet where a Sky receiver is not installed.

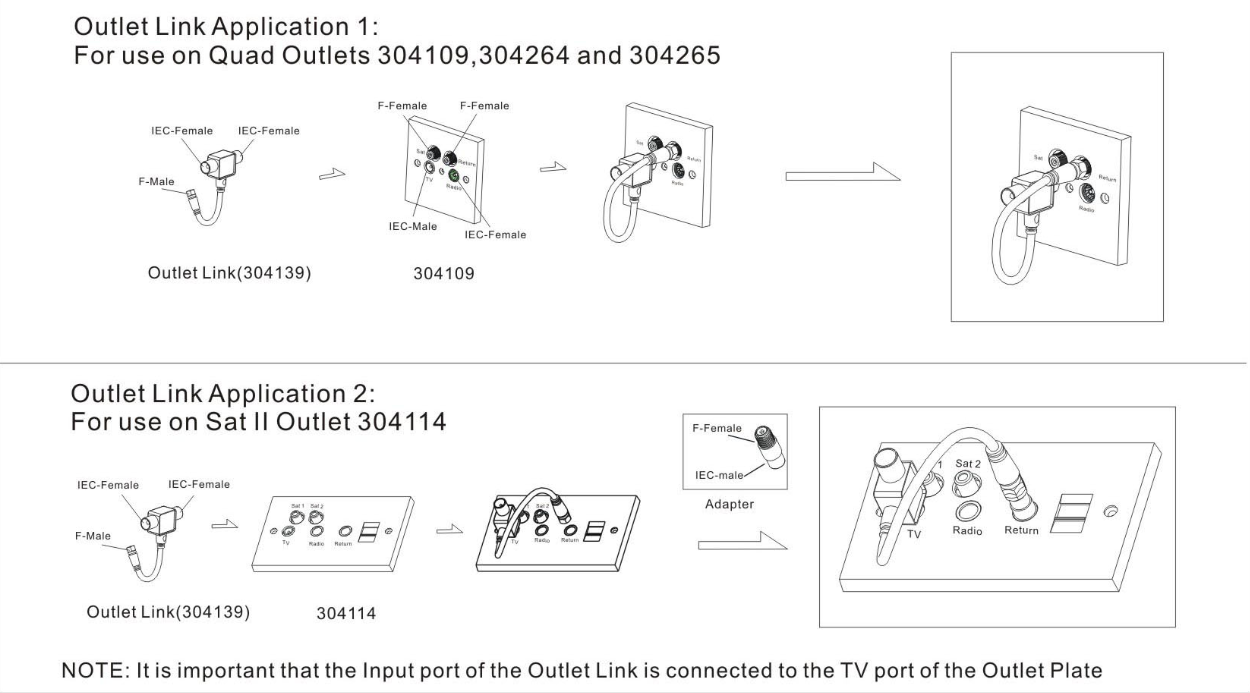

Designed for use with the TRIAX outlets 304109, 304114, 304264, 304265

Sku :-304139

Trade log in

£0.00
£9.54

QTY


Triax Outlet Link 304139

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Triax Outlet Link is a device used in telecommunications and broadcasting industries to provide a flexible and customizable solution for signal distribution. It is designed to connect multiple devices to a single coaxial cable, allowing for the distribution of high-quality video and audio signals.

The Triax Outlet Link is typically installed at the point where the coaxial cable enters a building or room. It provides a convenient way to distribute signals to different devices, such as televisions, satellite receivers, and cable modems.

One of the key advantages of the Triax Outlet Link is its modular design. The device features interchangeable modules that can be easily swapped out to customize the signal distribution to suit specific requirements. This makes it a versatile solution for a wide range of applications, from small residential installations to large commercial installations.

Triax Outlet Link is a reliable and flexible solution for signal distribution in the telecommunications and broadcasting industries. Its modular design and ease of use make it a popular choice for installers and technicians looking for a customizable solution that can adapt to changing needs over time.

EAN Number

5702663041394

CHARACTERISTICS

Type

2-Way Split / Return Link

FREQUENCY

Frequency Range TV

5...862 MHz

LOSS

Through Loss IN-TV

4.0 dB

CONNECTORS

Connector IN-OUT

IEC-female

MECHANICAL

Product Height

130 mm

Product Width

100 mm

Product Depth

30 mm

Packaging Height

0,015 m

Packaging Width

0,100 m

Packaging Depth

0,050 m

Net Weight

0,100 kg

Total Weight

0,100 kg

Remarks

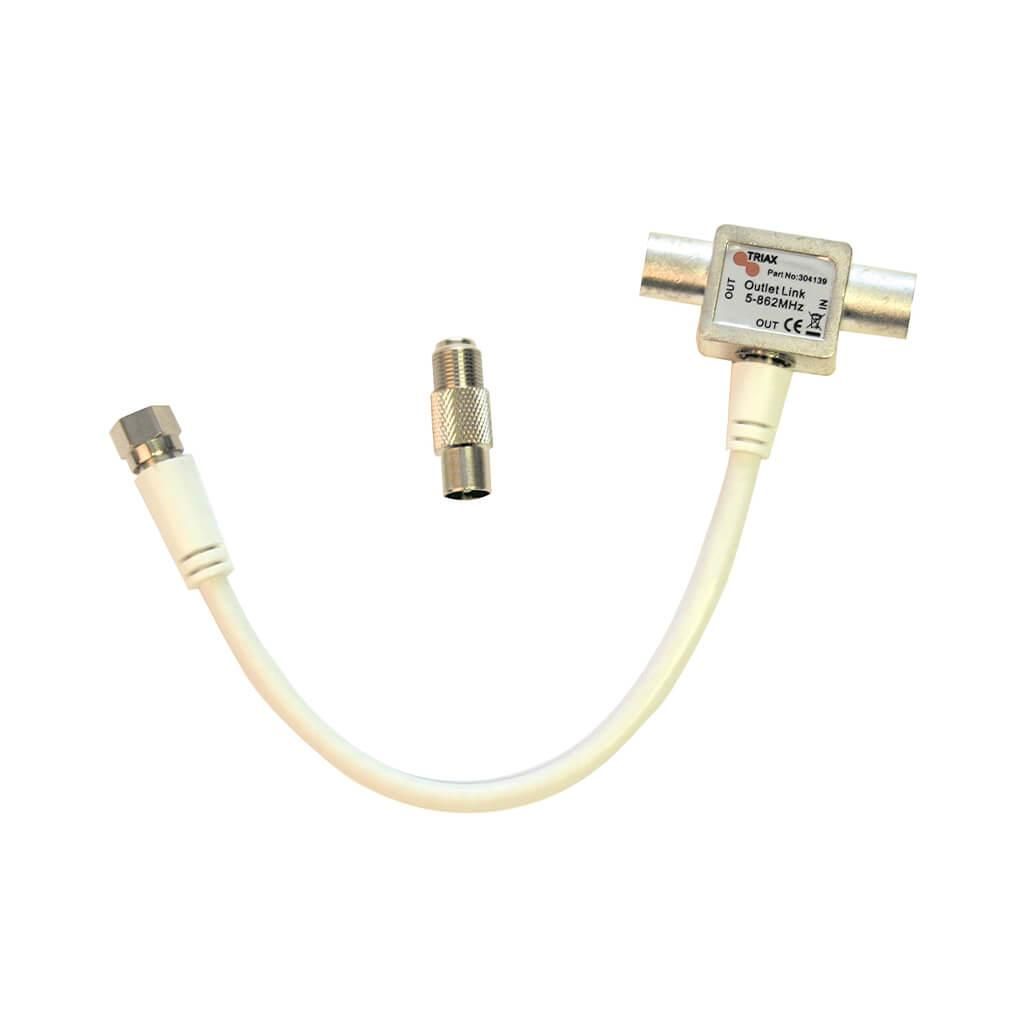

Screened Di-Cast housing Return Output on white fly lead, length 210mm Supplied with IEC Male to 'F' Female adaptor Suitable for use with TRIAX Outlets: 304109 304114 304264 304265 304286 304287 IEC Female x 2 / 'F' Male on Return Lead
