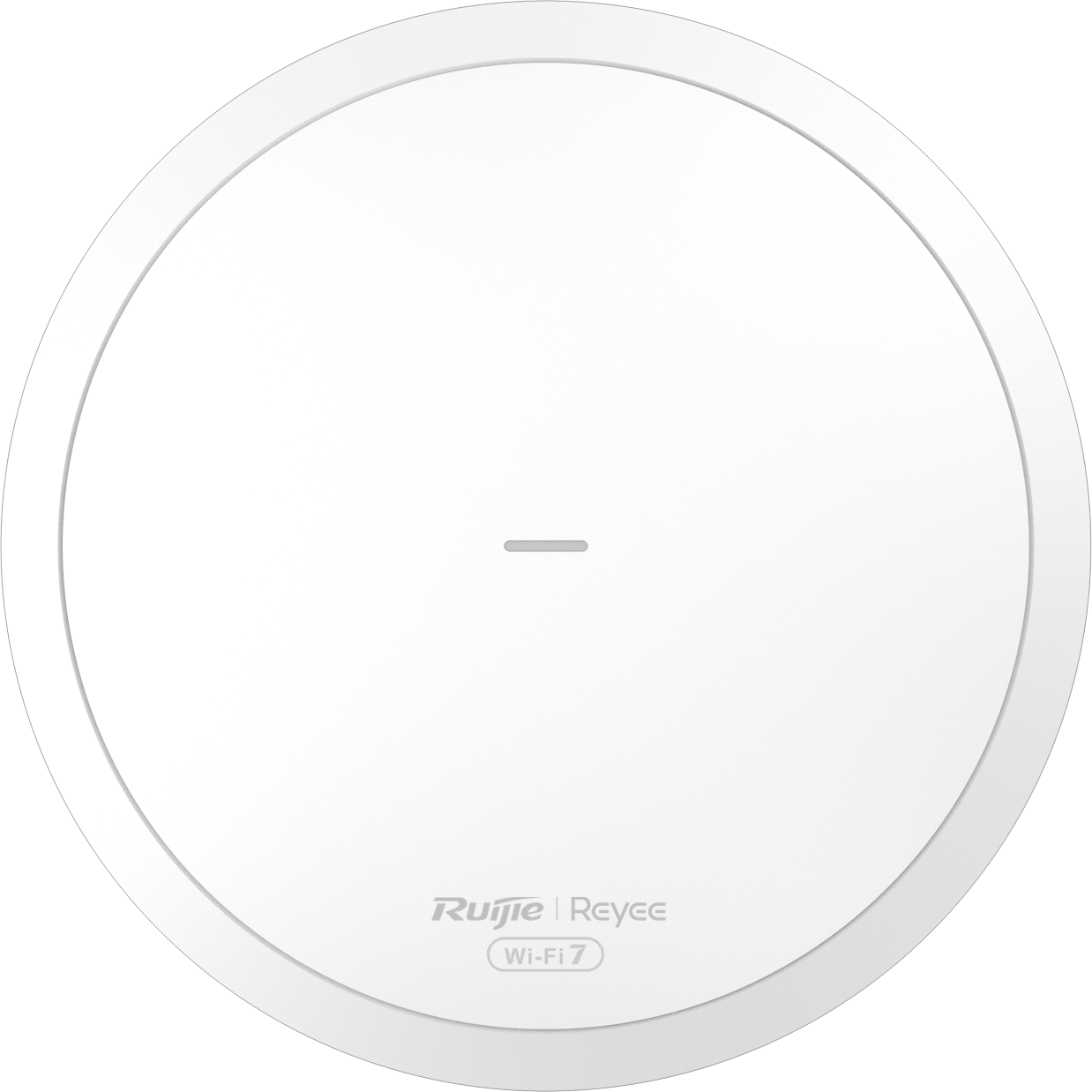

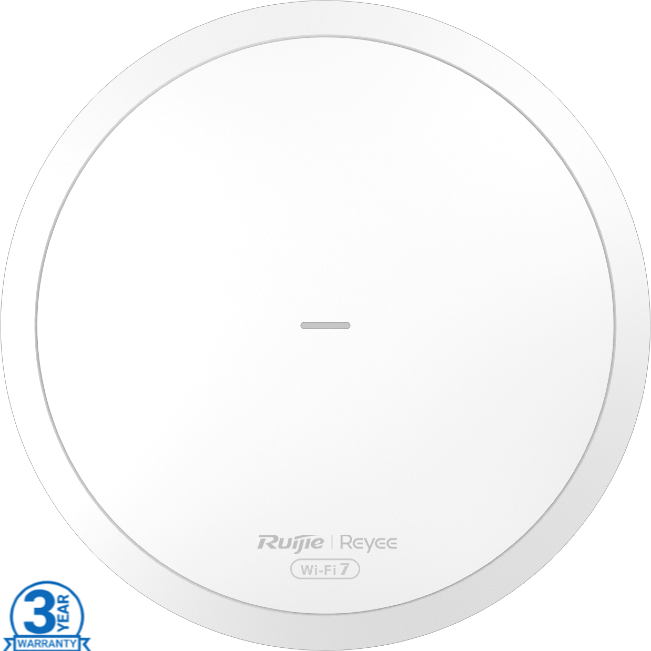

Ruijie Reyee RG-RAP72 Ap
Wi-Fi 7 Ceiling-Mount Access Point
Ruijie Reyee RG-RAP72 is Reyee’s flagship Wi‑Fi 7 access point, suitable for both ceiling and wall installations, designed to meet demanding business environments.
With dual-radio gigabit performance, AI-powered optimisation (WIO 3.0), and Reyee Mesh support, it delivers high-speed, seamless connectivity and intelligent roaming for enterprise networks. Its compact, circular design blends elegantly with any interior décor.
Fully manageable via Ruijie Cloud, the AP supports remote deployment, configuration, and O&M, reducing installation time, labour, and costs while simplifying wireless network management.
Features:
- Wi-Fi 7 dual-radio access point for high-performance connectivity
- AI Wireless Optimisation (WIO 3.0) for intelligent network management
- Ceiling and wall-mount installation, compact and versatile
- Reyee Mesh, standalone portal, and AI roaming support
- Modern circular design blends with interior décor
- Free Ruijie Cloud Management for remote deployment and O&M
£0.00
£117.86
Share the love with your friend
Complete the form below and we'll email your friend about this product
Be one of the first to know!
We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.
Wireless Performance
- Dual-band 2×2 MU‑MIMO: up to 3.57 Gbps aggregate throughput (688 Mbps on 2.4 GHz + 2,882 Mbps on 5 GHz)
- Full Wi‑Fi 7 support: 4K-QAM, MRU, MLO, WIO intelligence, 160 MHz channels
Antennas & Coverage
- Built-in omnidirectional antennas: 2.84–3.23 dBi (2.4 GHz), 4.44–4.56 dBi (5 GHz)
- Effective coverage radius: ~40 m on 2.4 GHz, ~70 m on 5 GHz (up to ~140 m²)
Ports & Installation

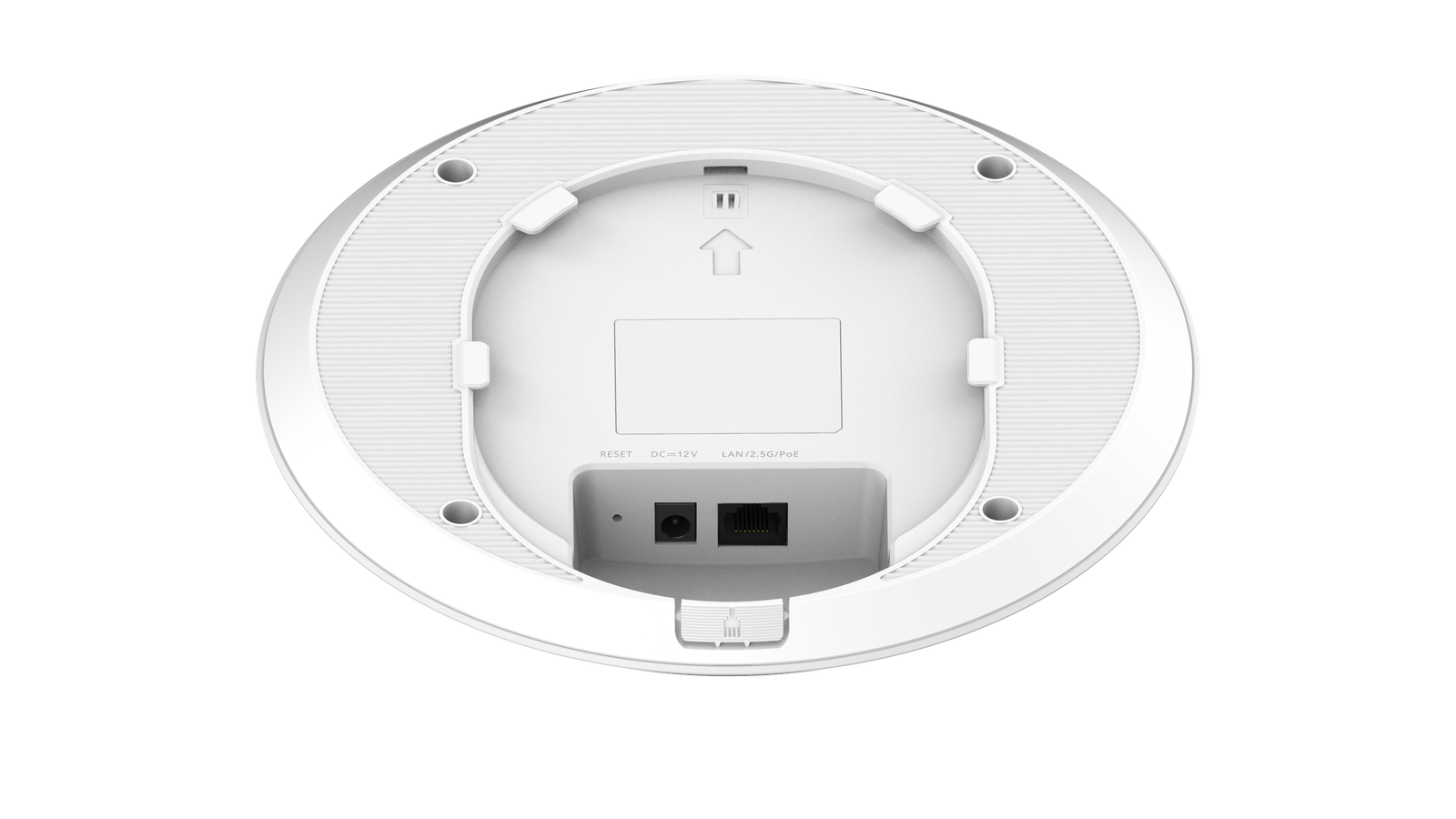

- 1 × 2.5 GbE RJ45 with PoE-In (802.3at/af), plus four 1 GbE ports for wired devices

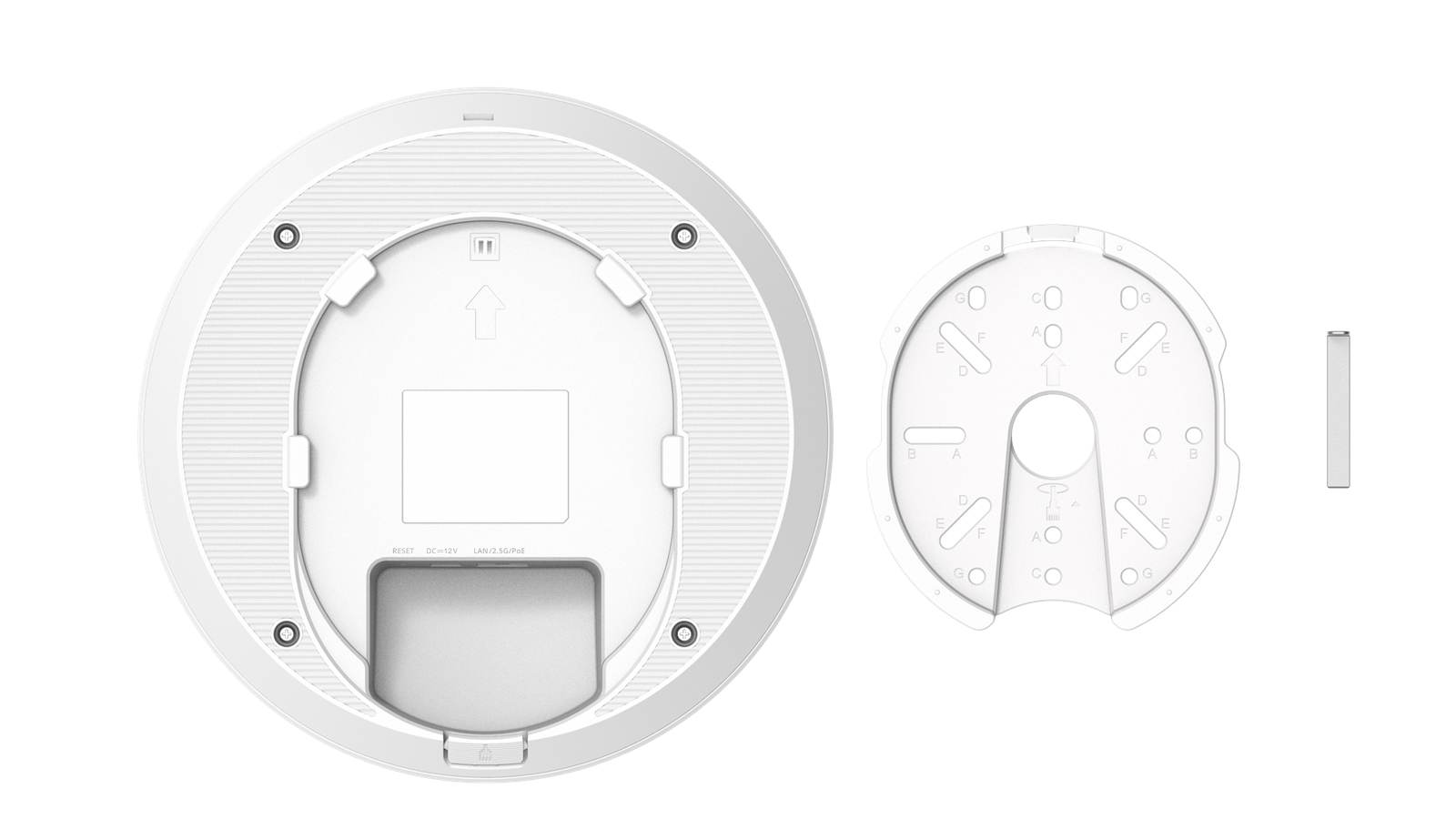

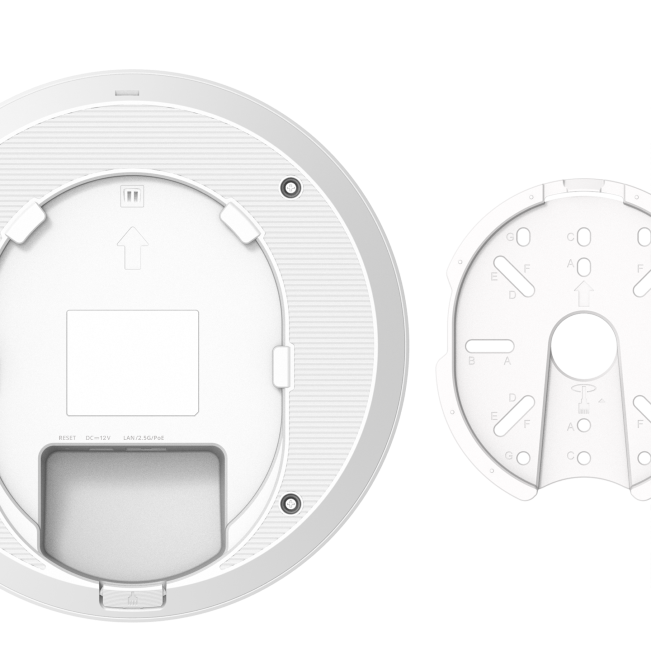

- Sleek circular design, mounting options include ceiling or wall; locks securely via metal plate latch
Network & Security Features
- Supports up to 8 SSIDs, VLAN tagging (802.1Q, port-based), Layer 2/3 roaming (802.11k/v/r), AI-assisted roaming
- Authentication modes: WPA-PSK/WPA2/WPA3, WPA-Enterprise, OWE; client isolation, MAC allow/block lists, and 802.1X
Cloud Management & Diagnostics
- Manage via Ruijie Cloud or standalone web interface; compatible with Reyee AP mesh
- AI wireless optimization, channel/power auto-adjust, failure alerts, packet sniffing, SNMP v1/v2c/v3, DHCP snooping, WQoS, load balancing
Hardware & Environment
- Operating temperature: 0–40 °C; compact and lightweight (~0.27–0.7 kg depending on model)
- PoE-powered (<14 W), reset button & LED indicator
Ideal For
- Environments requiring Wi‑Fi 7 performance on 2.4/5 GHz
- Dense client scenarios like offices, hotels, schools, retail, and event spaces
- Mesh networks with multiple Reyee APs
- Users wanting subscription-free cloud management and AI-based wireless tuning
 |
Ruijie Reyee RG-RAP72
Data Sheet
