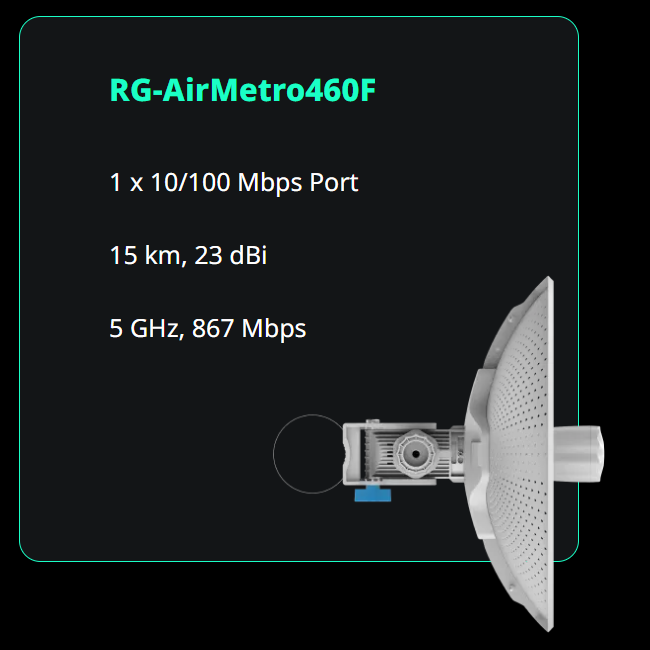

Ruijie Reyee RG-AirMetro460F

CPE of RG-AirMetro Series Wireless Bridges

Ruijie Reyee RG-AirMetro460F robust, long-range outdoor wireless bridge designed for reliable data transmission in various challenging environments, offering ease of use and centralised cloud management

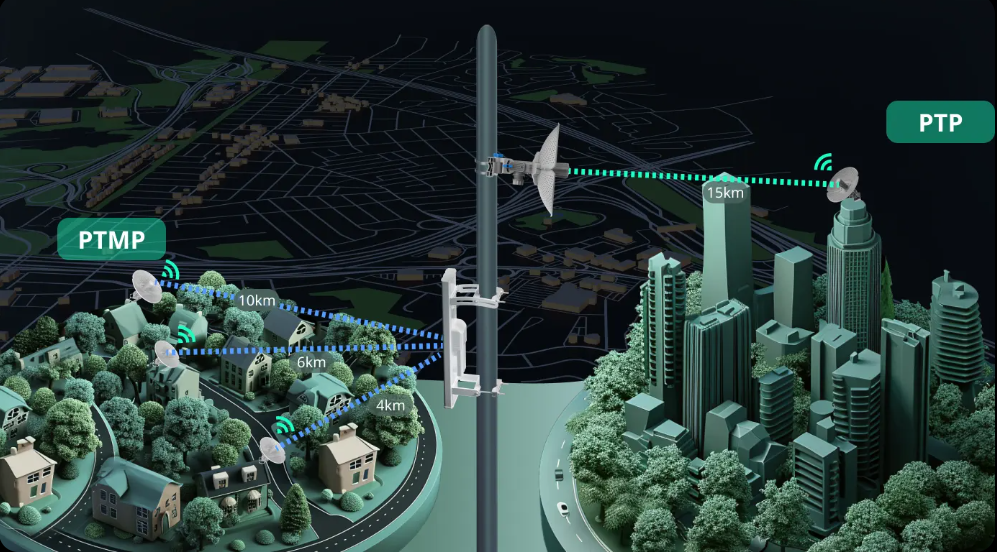

PTP Max. 15 km Working Distance
PTMP Easy Pairing All in 30 sec
24 V Passive PoE
IP65, 6 kV Surge Protection and ±24 kV ESD against Harsh Environment
220.32 km/h (137 mph) Wind Survivability
All-in-one Cloud Management Simplifies the User JourneyTrade log in

£0.00

From £74.70

High Throughput: Capable of delivering impressive data rates to support bandwidth-intensive applications, ensuring smooth and fast connectivity.

Long Range: Engineered for long-distance transmission, the Air Metro Wireless Bridge can cover extensive areas, making it suitable for rural or large campus deployments.

Robust Construction: Built to withstand harsh outdoor conditions, the device features weatherproof and durable materials to ensure longevity and consistent performance.

Easy Installation: With user-friendly setup procedures and comprehensive management tools, the Air Metro Wireless Bridge simplifies deployment and maintenance.

Advanced Security: Incorporates sophisticated encryption and authentication protocols to safeguard data and ensure secure wireless communication.

Flexible Configuration: Supports various modes and configurations to adapt to different network requirements and topologies, providing versatility and scalability.

Interference Mitigation: Equipped with advanced technologies to minimize interference and optimize signal quality, ensuring reliable connections even in challenging environments.

Long-Range Transmission: Supports wireless transmission up to 15 km in point-to-point (PTP) configurations.

Point-to-Multipoint (PTMP): Can connect up to 32 CPE (like other RG-AirMetro460F units) to a single base station (like the RG-AirMetro550G-B).

High Data Rate: Operates in the 5 GHz band with 802.11ac technology, achieving a maximum wireless rate of 867 Mbps. It also supports 802.11n in the 2.4 GHz band with a maximum rate of 150 Mbps for management.

Robust and Weatherproof: Features an IP65 rating for dust and water resistance, 6 kV surge protection, and ±24 kV ESD protection to withstand harsh outdoor environments. It can also survive winds up to 220.32 km/h (137 mph).

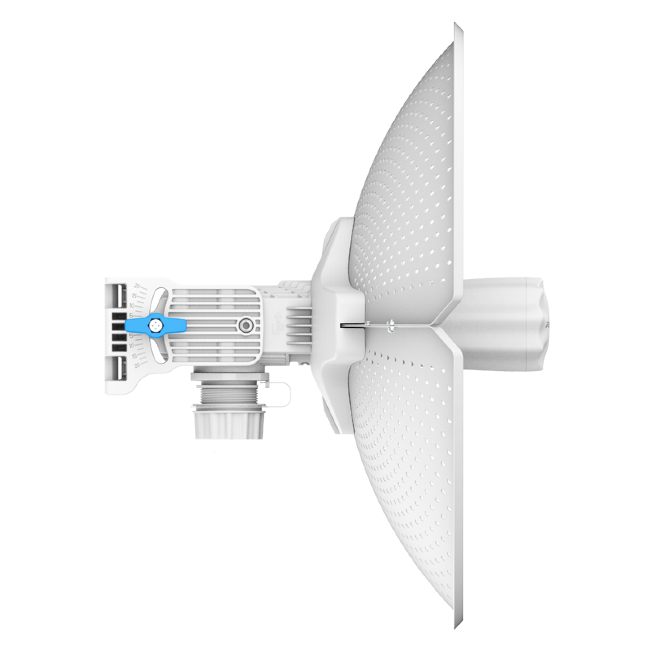

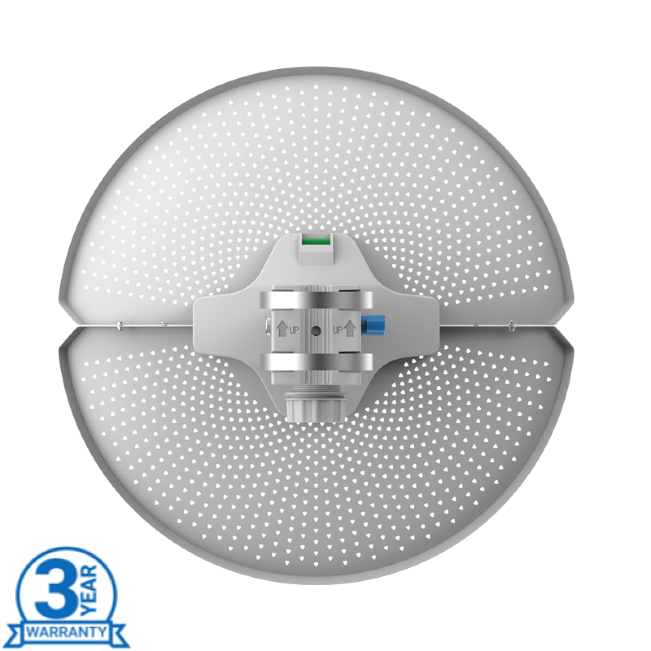

Integrated Antenna: Equipped with a 23 dBi dual-polarized directional antenna with a narrow beamwidth (Horizontal: 9°, Vertical: 9°) for focused long-range connections.

Easy Pairing: Supports one-touch pairing within 30 seconds and app-based pairing within 2 minutes for quick setup.

Passive PoE: Powered by 24 V passive Power over Ethernet (PoE), simplifying installation by combining power and data over a single cable.

Cloud Management: Offers all-in-one cloud management for easy configuration, monitoring, and maintenance.

Alignment Tool: Includes a built-in alignment tool in the software to help optimize the antenna direction for the best signal.

Spectrum Scan and Optimization: Features one-click channel interference scanning and provides automatic optimization recommendations.

Enhanced Features: Supports WPA2 encryption, VLAN packet transmission, DHCP server, and network diagnostics tools.

Key Specifications:

Wireless Standards: IEEE 802.11 a/n/ac (5 GHz), IEEE 802.11 b/g/n (2.4 GHz)

Frequency Bands: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz, and 2.4000 GHz to 2.483 GHz (country-specific restrictions apply).

Maximum Data Rate: 867 Mbps (5 GHz), 150 Mbps (2.4 GHz)

Ethernet Port: 1 x 10/100 Mbps LAN port.

Antenna Gain: 23 dBi.

Operating Temperature: -40°C to +70°C (-40°F to +158°F).

Dimensions: 368.5 mm (diameter) x 271 mm (length, including mounting kit).

Weight: 2.33 kg.
