Triax T524 Multiswitch

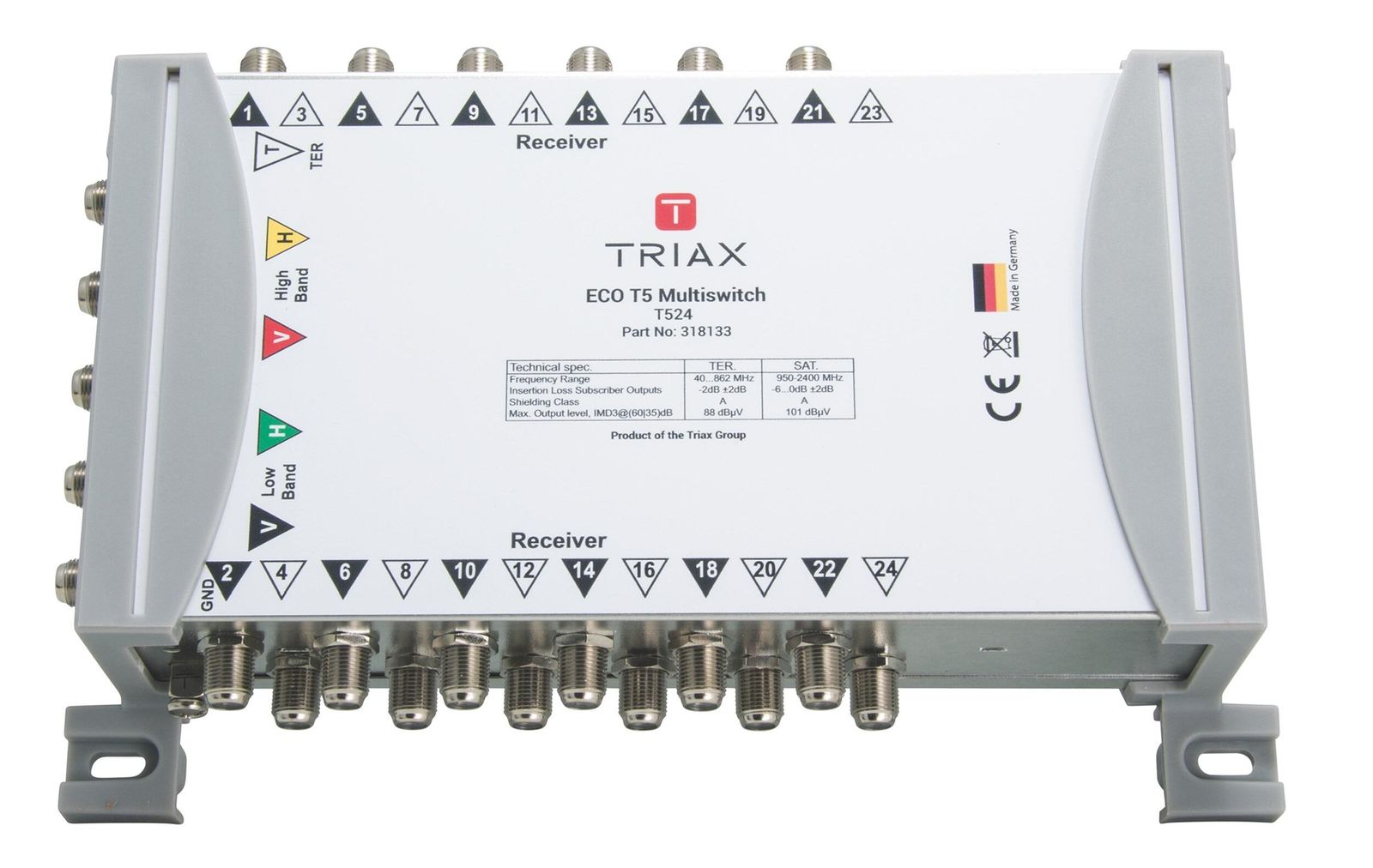

ECO 5x24 T5 Cascade Multiswitch (SKU: 318133)
The Triax ECO 5x24 Cascade Multiswitch is a high-performance satellite distribution unit designed for professional IRS and satellite TV systems. Featuring a 5-input, 24-output configuration, this multiswitch allows signals from a single satellite dish to be distributed to up to 24 satellite receivers, making it ideal for large residential buildings and commercial installations.
Engineered with active unity gain technology, the T5 multiswitch ensures consistent signal strength across all outputs. Its compact design allows for efficient installation in restricted spaces, while maintaining high reliability and signal integrity.
The multiswitch is powered via satellite trunk lines, with the option to operate as a standalone unit when used with a local power supply, offering flexibility for a wide range of installation scenarios.
Features
- 5 input / 24 output cascade multiswitch
- Distributes satellite signals to up to 24 receivers
- Active unity gain signal processing
- Compact design for easy installation
- Powered via satellite trunk lines
- Can operate as standalone unit with local PSU
- Compatible tap and switch spacing for quick connectors
- Suitable for cascade IRS system expansion
- High reliability for professional installations
£0.00
£253.19
Share the love with your friend
Complete the form below and we'll email your friend about this product
Be one of the first to know!
We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.
The "5x24" in the name refers to the fact that this multiswitch has 5 input ports and 24 output ports.
The 5 input ports are used to connect up to 5 LNBs (Low-Noise Block converters), which are typically mounted on a satellite dish to receive signals from different satellites.
The 24 output ports are then used to distribute the signals from the LNBs to up to 24 satellite receivers.
The TRIAX ECO T524 Multiswitch is designed to be energy-efficient, with low power consumption and a standby mode to reduce power usage when not in use.
It also features built-in surge protection and overcurrent protection to ensure reliable and safe operation.
TRIAX ECO T524 Multiswitch is a high-quality and versatile device that is well-suited for use in satellite signal distribution systems.
Specifications
ORDER INFORMATION | |
EAN Number | 5702663181335 |
CHARACTERISTICS | |
Type | 5 in / 24 out |
Max. output level SAT @ -35 dB IMD3 | 101 dBµV |
Max. output level TER @ -60dB IMD3 | 91 dBµV |
FREQUENCY | |
Frequency range TER | 40...790 MHz |
Frequency range SAT | 950...2400 MHz |
LOSS | |
Insertion loss - SAT | 0...+1dB +/-2 dB |
Insertion loss - TER | -2dB +/-2 dB |
ISOLATION | |
Isolation TER to SAT | typ. 30 dB |
ELECTRICAL | |
Impedance | 75 Ω |
OPERATIONAL | |
LINE power DC voltage (max.) | 15 VDC |
LINE power current (max.) | 240 mA |
DC Operating voltage | 15 VDC |
DC Current consumption | 240 mA |
External PSU item ID | 318151 |
Max. current to each output (supplied by set top box) | typ. 35 mA |
Temperature - operating | -20...70 °C |
CONNECTORS | |
Connector Type | F-female |
Connector DC | F-female |
Number of inputs | 5 |
Subscriber outputs | 24 |
Colour coding of IF and TER inputs | Yes |
