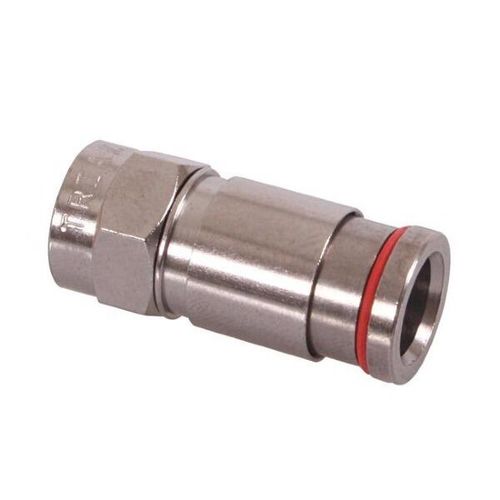

Triax F Compression Connector x 100£51.42
Triax United Kingdom

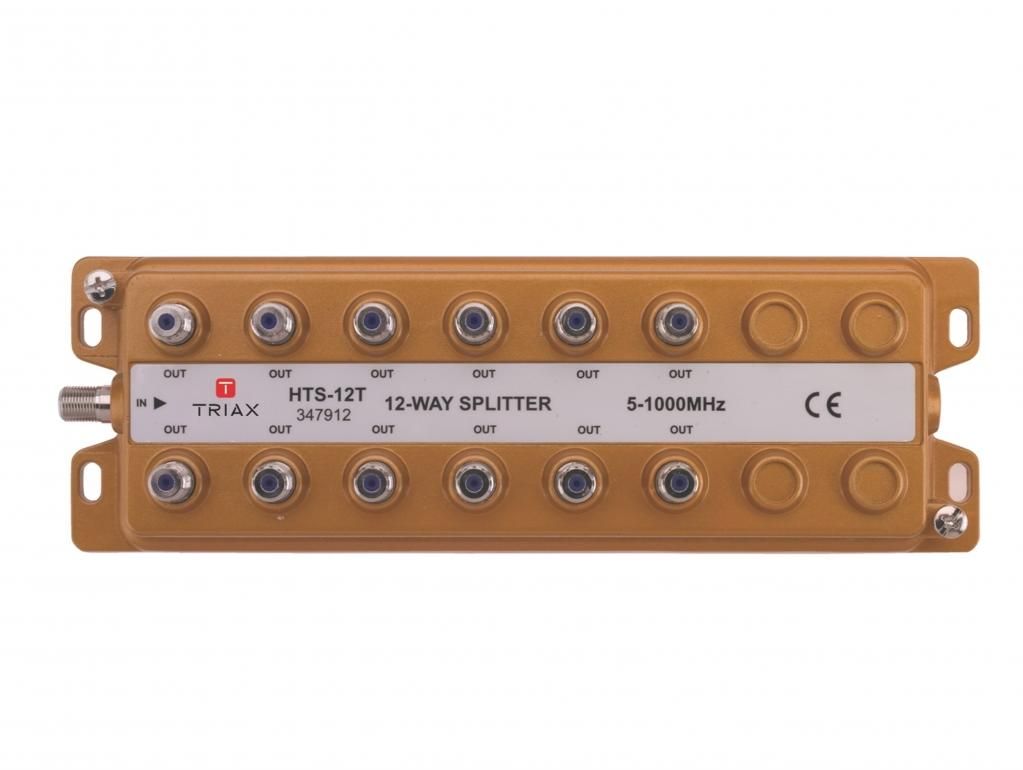

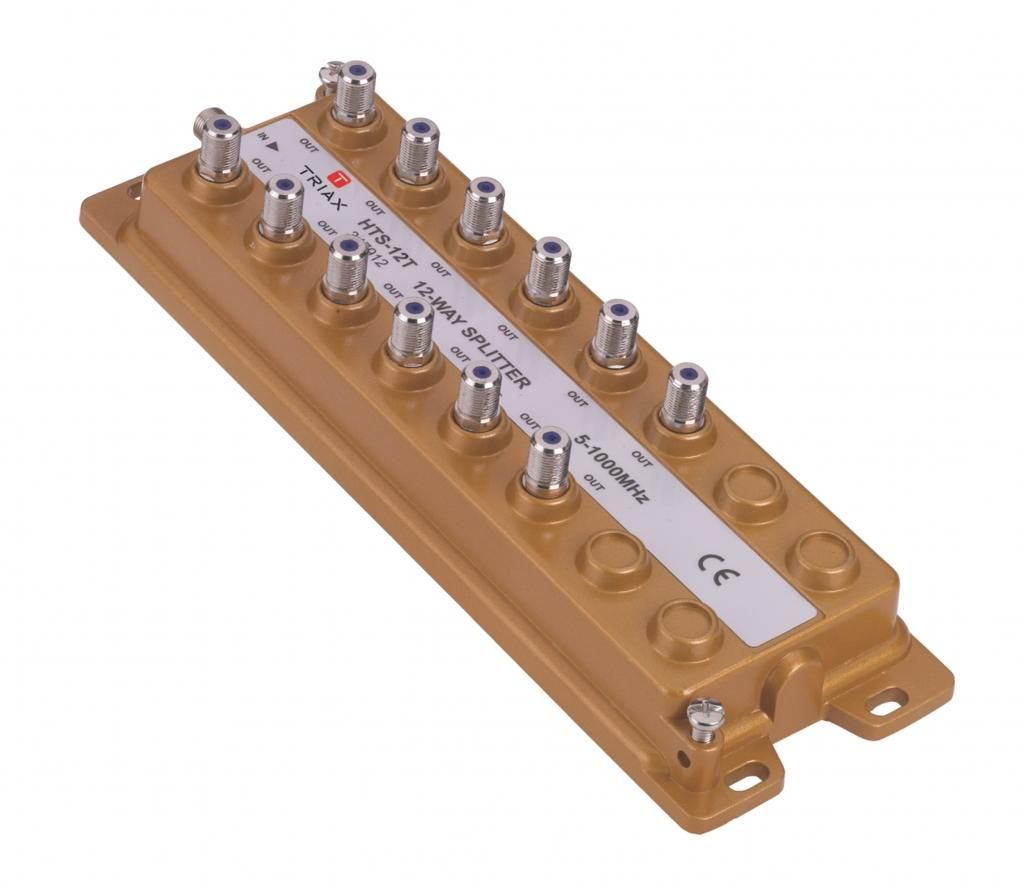

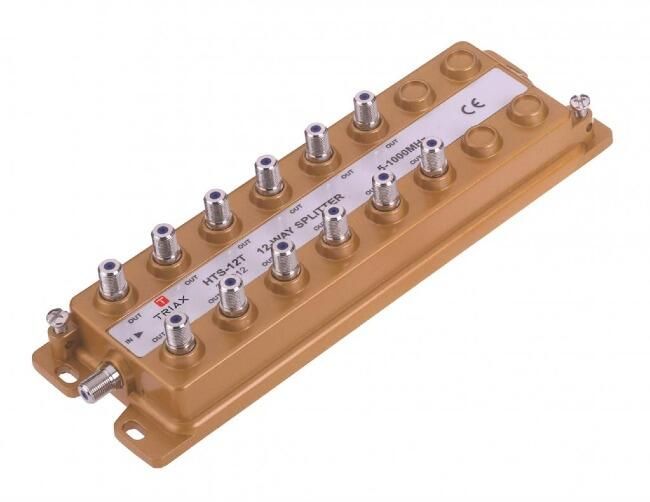

Triax HTS 12 Splitter
ACV 12-12 (HTS 12)
Triax 12-Way Splitter is a professional-grade RF distribution solution designed for splitting television and radio signals across multiple outlets while maintaining excellent signal quality and isolation.
Featuring 12 output ports, low insertion loss, and high port-to-port isolation, this splitter is ideal for residential, commercial, hospitality, and communal TV distribution systems.
With Class A shielding and 75 Ohm impedance across all ports, the ACV 12-12 helps minimise signal interference and delivers reliable performance for digital TV, radio, and RF distribution networks.
Operating across a frequency range of 5–1000 MHz, all ports are AC/DC blocked at the inner conductor, providing additional protection and compatibility with a wide range of installations.
Features
- 12-way RF signal splitter for TV and radio distribution
- One-sided connector design for neat installation
- Low insertion loss for improved signal retention
- High port-to-port isolation
- Class A shielding for superior interference protection
- 75 Ohm impedance on all ports
- Frequency range: 5–1000 MHz
- AC/DC blocked on all ports at the inner conductor
- Suitable for terrestrial TV, radio and RF distribution systems
- Compact and professional installation design
- Reliable performance in residential and commercial applications
- SKU 343255
£0.00
£31.86
Share the love with your friend
Complete the form below and we'll email your friend about this product
Be one of the first to know!
We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.
The Triax HTS 12 splitter features a compact and durable design, with a frequency range of 5-1000 MHz. It is compatible with both analogue and digital signals, and its high isolation between the outputs ensures minimal signal loss and interference.
It is commonly used in commercial or residential settings where there is a need to distribute a single signal source to multiple devices.
The splitter also features F-type connectors, which provide a secure and reliable connection.
ORDER INFORMATION | |
EAN Number | 5702663479128 |
SHIELDING | |
Shielding effeciency VHF/UHF | > 110.0 dB |
FREQUENCY | |
Frequency range | 5...1000 MHz |
LOSS | |
Insertion loss (in-out) 5-40 Mhz | < 12.3 dB |
Insertion loss (in-out) 40-470 MHz | < 12.5 dB |
Insertion loss (in-out) 470-860 MHz | < 14.5 dB |
Insertion loss (in-out) 860-1000 MHz | < 14.5 dB |
ISOLATION | |
Isolation (tap-tap) 5-40 MHz | > 26.0 dB |
Isolation (tap-tap) 40-470 MHz | > 26.0 dB |
Isolation (tap-tap) 470-860 MHz | > 23.0 dB |
Isolation (tap-tap) 860-1000 MHz | > 23.0 dB |
RETURN LOSS | |
Return loss (in-out) 5-40 MHz | > 17.0 / > 17.0 dB |
Return loss (in-out) 40-470 MHz | > 20.0 / > 20.0 dB |
Return loss (in-out) 470-860 MHz | > 17.0 / > 17.0 dB |
Return loss (in-out) 860-1000 MHz | > 17.0 / > 17.0 dB |
ELECTRICAL | |
Impedance | 75 Ω |
OPERATIONAL | |
DC Passthrough | NO |
CONNECTORS | |
Number of outputs | 12 |
MECHANICAL | |
Product Height | 78 mm |
Product Width | 242 mm |
Product Depth | 44 mm |
Packaging Height | 0,050 m |
Packaging Width | 0,080 m |
Packaging Depth | 0,240 m |
Packaging Volume | 0,001 m3 |
Net Weight | 0,250 kg |
Total Weight | 0,250 kg |
