Triax TMSA 5 Launch Amplifier

Triax TMSA 5 Launch Amplifier

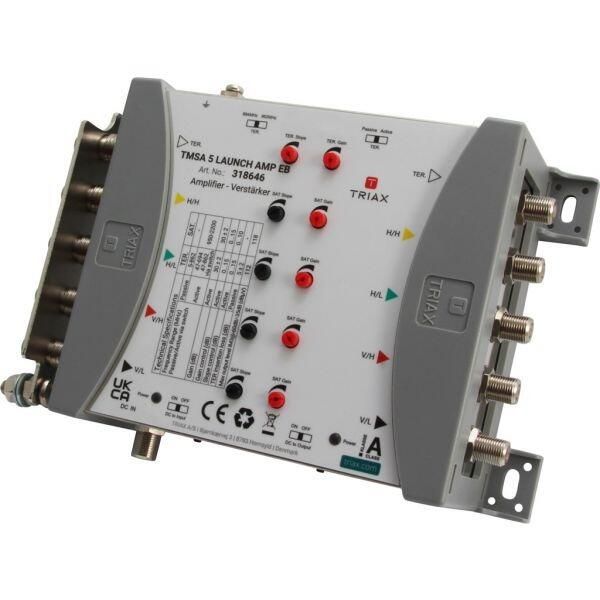

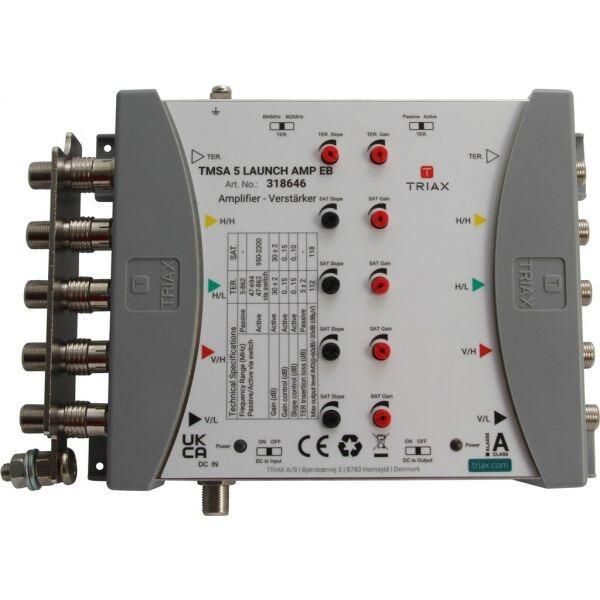

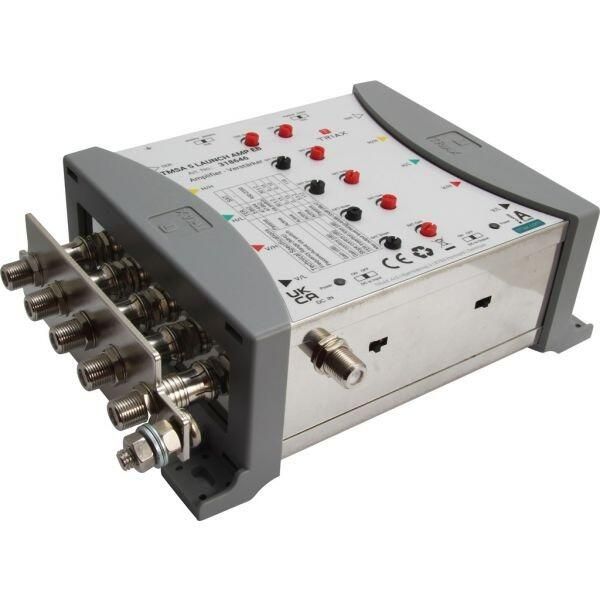

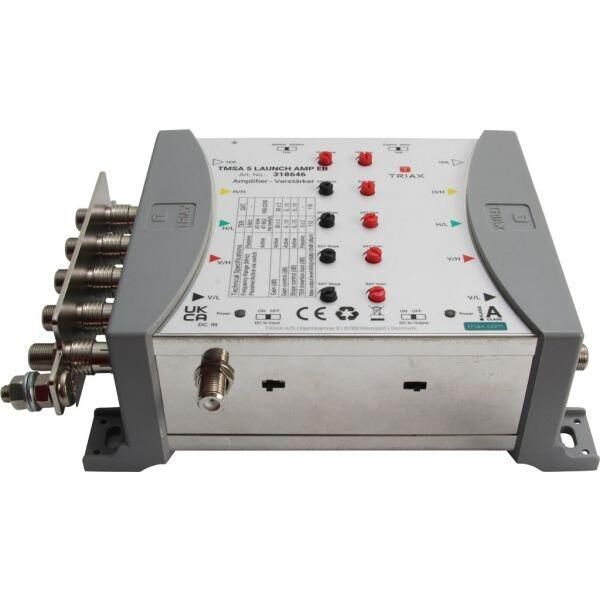

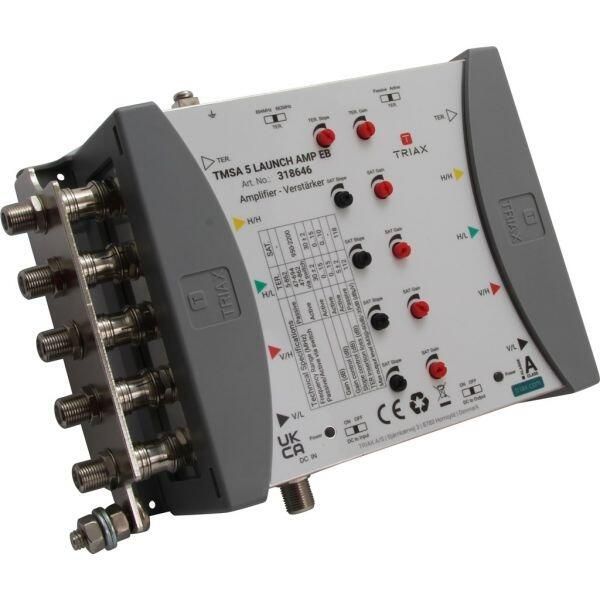

Triax TMSA 5x5 Launch Amplifier EB | 5 Input IRS 30dB Gain 318646

Triax United Kingdom

Triax TMSA 5 Launch Amplifier

Name: Triax TMSA 5 Launch Amplifier
Brand: Triax United Kingdom
SKU: 318646
Price: 131.868 GBP
Availability: InStock

Launch Amplifier EB – IRS Cascade Amplifier

Triax TMSA 5x5 Launch Amplifier EB is a high-performance IRS system amplifier designed for use in multiswitch cascade satellite and TV distribution networks. With 5 inputs and 30dB gain, it effectively compensates for cable losses within complex IRS designs, ensuring stable and balanced signal delivery across large installations.

Engineered for professional use, the TMSA series supports both direct DC powering and line powering via satellite inputs, offering installation flexibility in a wide range of system configurations.

The unit is fitted with earth bonding bars (EB) for enhanced system safety and compliance, making it suitable for commercial and communal IRS installations.

Certified under the European IRS Certification Scheme (EICS), this amplifier guarantees compatibility with all major satellite and TV platforms and meets stringent industry performance standards.

Features

Psu 18V 3A TMA (318167)

SKU :- 318646

Trade log in

£0.00

£131.87

Triax TMSA 5 Launch Amp EB is an upgraded version of the TMSA 5 Launch Amplifier. It features 5 inputs instead of 1, allowing for the distribution of signals from multiple sources.

The amplifier has a maximum gain of 30dB, which provides a stronger signal output than the TMSA 5 Launch Amplifier.

The frequency range of the TMSA 5 Launch Amp EB is the same as the TMSA 5 Launch Amplifier, from 87.5 MHz to 790 MHz. It can be used to amplify both analogue and digital signals, including terrestrial TV, satellite TV, and FM/DAB radio. The amplifier also includes a built-in LTE filter to prevent interference from nearby mobile phone signals.

The TMSA 5 Launch Amp EB is designed for easy installation, with color-coded inputs and outputs and a compact design that can be mounted on a wall or other surface. It also includes an LED power indicator to show when the amplifier is powered on.

Triax TMSA 5 Launch Amp EB is a versatile and powerful amplifier that can be used to distribute signals from multiple sources while maintaining signal strength and quality.

ORDER INFORMATION

EAN Number 5702663186460

ELECTRICAL

Impedance 75 Ω

CONNECTORS

Connector Type F-female

Connector DC F-female

Number of trunk inputs 5

Number of trunk outputs 5

Colorcoding @IF/TER inputs VL=Black, VH=Red, HL=Green, HH=Yellow, White=TER

CHARACTERISTICS

Input polarity gain control TER 0…15 dB

Input polarity gain control SAT 0…15 dB

Max. output level SAT @ -35 dB IMD3 118 dBµV

Max. output level TER @ -60dB IMD3 112 dBµV

LNB current max. 3000 mA

FREQUENCY RANGE

Frequency range TER Active: 47…694 - 47...862 / Passive: 5...862 MHz

Frequency range SAT 950…2200 MHz

GAIN

Gain - SAT 30 ± 2 dB

Gain - TER 30 ± 2 dB

LOSS

Insertion loss - TER 5 dB

ISOLATION

Isolation SAT to TER > 30 dB

Isolation cross polarisation H/V > 30 dB

RETURN LOSS

Return loss SAT > 10 dB

OPERATIONAL

LINE power DC voltage (max.) 15…20 VDC

LINE power current (max.) 2000 mA

PSU output DC voltage 18 VDC

ESD protection 4KV inputs & sub outputs

DC Current consumption 500mA max. @18V DC mA

PSU/adapter Art number 318165, 318166, 318167

Control LEDs Green LED (Power)

Temperature - operating -20…+50 °C

MECHANICAL

Dimensions product (H x D x W) 140 x 65 x 175 mm

Packing QTY 1

Product Length 140 mm

Product Width 175 mm

Product Depth 65 mm

Packaging Height 0.000 m

Packaging Width 0.000 m

Packaging Depth 0.000 m

Packaging Volume 0.000 m3

Net Weight 0.700 kg

Tara Weight 0.140 kg

Total Weight 0.840 kg

Remarks Earth Bars
