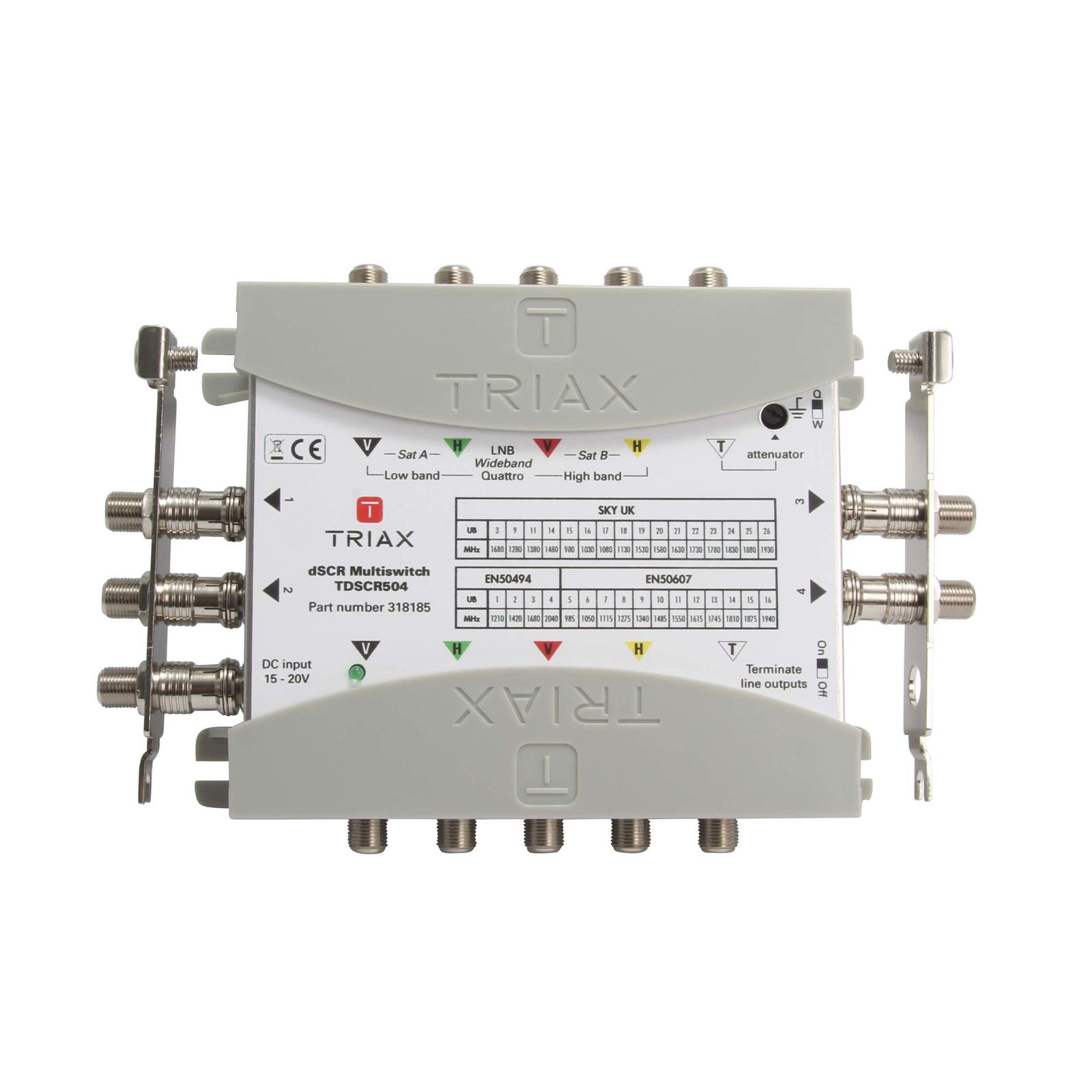

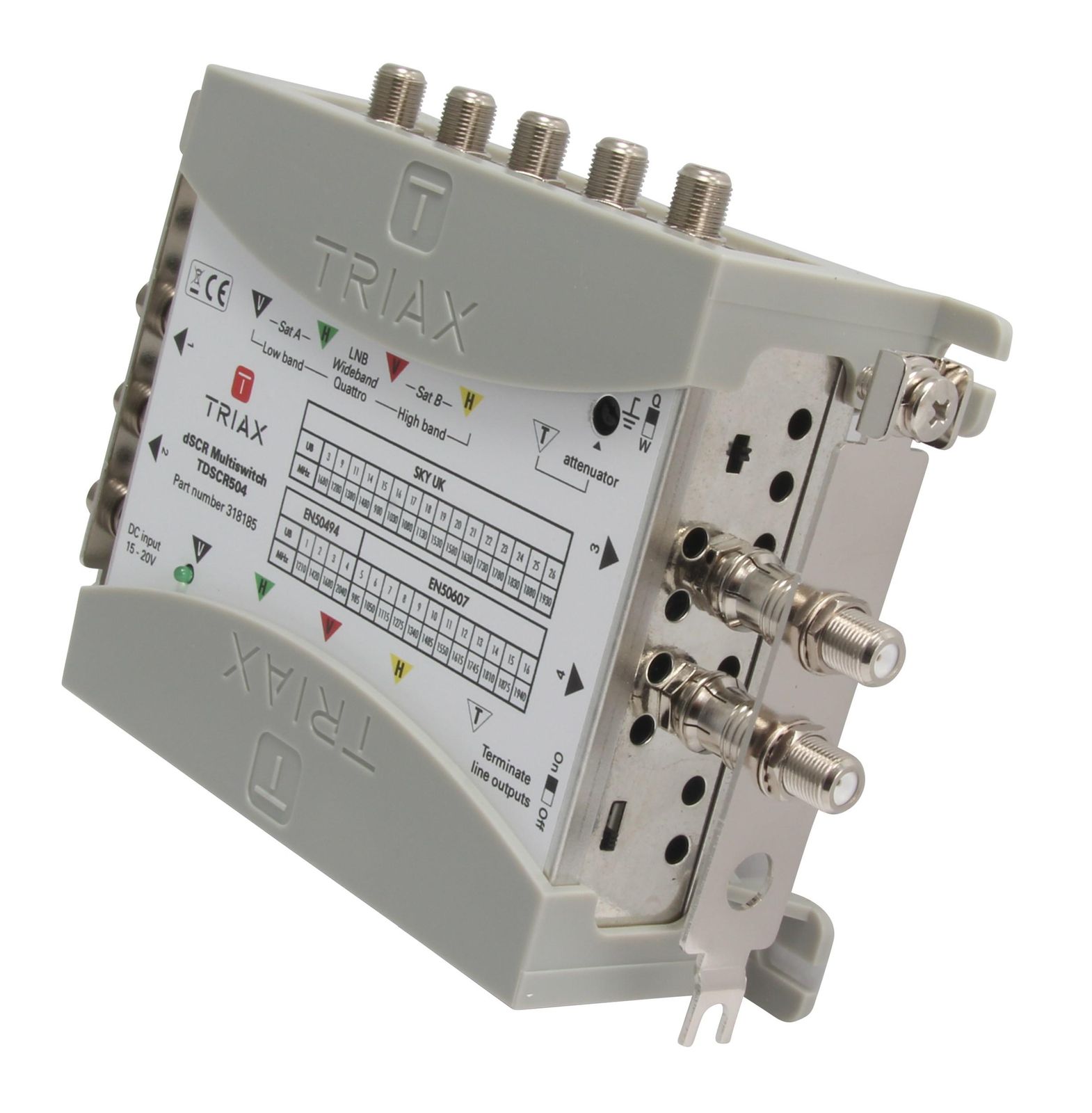

TRIAX TDSCR 504 Multiswitch

Triax TDSCR 4 way

TRIAX TDSCR 504 Multiswitch

The only switch you need Independent outputs for legacy or dSCR mode; the TRIAX TDSCR 504 can be used as cascade, standalone or terminated.

European IRS Certification Scheme

The full range of dSCR multiswitches are certified to the EICS scheme demonstrating the high quality of the solution and compatibility with all major satellite and TV platforms.

Ultimate flexibility

With your choice of 4, 8, 12 or 16 outputs, TRIAX multiswitches are compatible with Quattro and Wideband LNBs and support 1 or 2 satellite positions.

Trust TRIAX

With 70 years of reliability and innovation, we ensure you live up to your own customer promises.

Reduce costs

Market-leading low power consumption means you can build large, cascadable systems with a single PSU connected at any point in the system.

Easy planning and installation

Simple integration with existing TRIAX solutions; 5x Quick F connectors included.

Safety first

Earth Bars included for all subscriber outputs


  • ADDITIONAL INFORMATION

    ORDER INFORMATION

    EAN Number

    5702663181854

    CHARACTERISTICS

    Input level

    70...100 (-38 to -8dBm) dBµV

    Output level

    83 (-26dBm)/ 83 (-26dBm) with 2 carriers dBµV

    LNB power supply max.

    15...20 V/DC

    LNB current max.

    1000 mA

    FREQUENCY

    Frequency range TER

    40...790, active MHz

    Frequency range SAT

    dSCR/legacy: 950...2150 - Wideband: 290...2340 MHz

    LOSS

    Through loss TER

    -3 +/-2dB dB

    Through loss SAT

    -2.5 +/-2dB dB

    Insertion loss - TER

    2 +/-2dB dB

    Attenuation TER

    0...20 dB

    ISOLATION

    Isolation cross polarisation H/V

    25 dB

    RETURN LOSS

    Return Loss

    10 dB

    ELECTRICAL

    Impedance

    75 Ω

    OPERATIONAL

    DC Current consumption

    40 mA

    PSU/adapter INFO

    Optional

    Temperature - operating

    -20...50 °C

    CONNECTORS

    Number of inputs

    4 SAT (1x quattro + 2x wideband) + 1 TERR

    Number of outputs

    4

    MECHANICAL

    Dimensions carton (H x D x W)

    191x136x52 mm

    Packing QTY

    1

    Packaging Height

    0,059 m

    Packaging Width

    0,265 m

    Packaging Depth

    0,152 m

    Packaging Volume

    0,002 m3

    Net Weight

    0,670 kg

    Tara Weight

    0,140 kg

    Total Weight

    0,810 kg

    Remarks

    SKY UK, EN50607, EN50494 (automatic selection)

  • EXTERNAL LINKS
VIDEO

SKUSKU: 318185
£135.88
£163.06
Inc VAT
Reward points:0
