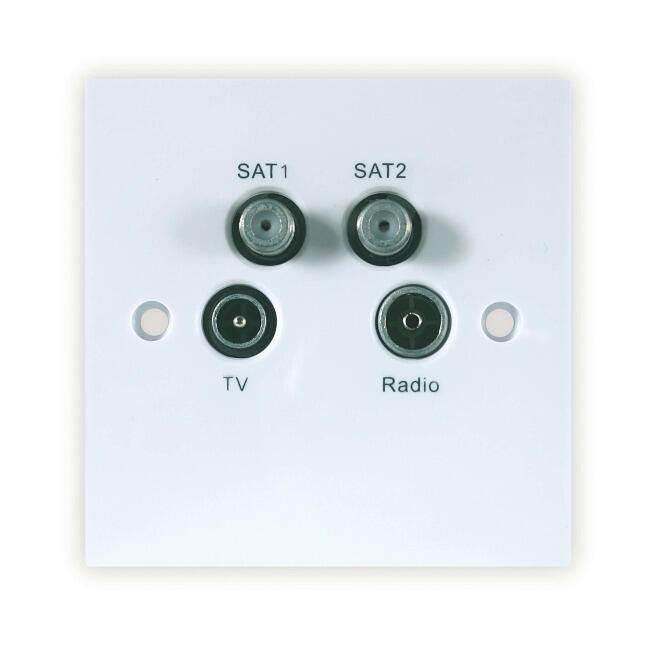

Triax TV / Radio / Sat / Return Quad Wall Outlet

TV/Radio/Sat/Return Quad Wall Outlet
Triax United Kingdom

Triax TV / Radio / Sat / Return Quad Wall Outlet

  • Quad (TV/Radio/Sat/Return)
  • Fully screened
  • UK style front plate
  • Die-cast housing
  • DAB compatible

Trade log in



TV/Radio/Sat/Return Quad Wall Outlet

Share the love with your friend

Complete the form below and we'll email your friend about this product

You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Triax TV/Radio/Sat/Return Quad Wall Outlet is a type of wall outlet that allows you to connect multiple devices to your TV, radio, and satellite. The outlet has four connectors that can accommodate cables for TV, radio, and satellite signals, as well as a return path for signals to be sent back to the service provider.

This type of outlet is typically used in homes or businesses that have multiple TVs, radios, or satellite receivers, and want to ensure that each device is receiving a clear and strong signal. The quad outlet allows for easy installation and management of multiple cables, reducing clutter and making it easier to connect and disconnect devices as needed.

When installing a Triax TV/Radio/Sat/Return Quad Wall Outlet, it's important to ensure that the cables are properly connected and that the outlet is securely fastened to the wall. It's also a good idea to label each cable to make it easier to identify which cable is connected to which device.

EAN Number5702663041097
TypeUK Style, Single Gang
Return PathDC...2150 MHz
Frequency Range FM87.5...230 MHz
Frequency Range TV47...68/254...862 MHz
Frequency Range SAT950...2150 MHz
Through Loss IN-FM<3.0 dB
Through Loss IN-TV<2.5 dB
Through Loss IN-SAT<3.0 dB
Return Loss IN<1.0 dB
DC Passthrough SATYes
Connector IN-OUTSpring Clamp Termination
Connector FMIEC-female
Connector TVIEC-male
Product Height86 mm
Product Width86 mm
Product Depth37 mm
Packaging Height0,455 m
Packaging Width0,260 m
Packaging Depth0,505 m
Packaging Volume0,060 m3
Net Weight0,127 kg
Tara Weight0,038 kg
Total Weight0,165 kg
RemarksScreened Die-Cast Housing Return port can also be used as SAT 2 port.
