Vigitron NetMux Vi00103

Vi00103 Multiplexer Network PoE Splitter & Combiner

  • Connects two IP/PoE devices to a PoE switch using a single Cat5/6 cable
  • Cost-effective solution for powering two IP devices using a single cable
  • Provides up to 37W to each of 2 device
  • Indicates PoE presence at Camera side (TX module)
  • Compatible with IEEE 802.3af and IEEE 802.3at
  • No power source required

Network PoE Splitter & Combiner


£0.00
£57.42

QTY


Vigitron NetMux Vi00103 Network PoE Splitter & Combiner

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Vigitron NetMux™ Vi00103 is a video balun from Vigitron, a company that specialises in the transmission of video signals over twisted pair cabling.

A video balun is a device that converts a video signal from coaxial cable to twisted pair cabling, allowing video signals to be transmitted over longer distances and with less interference.

The Vi00103 video balun is designed to work with network CCTV cameras and supports transmission distances of up to 1,000 feet (305 meters) over Category 5 or 6 twisted pair cabling. It also includes surge protection to guard against voltage spikes and transients.

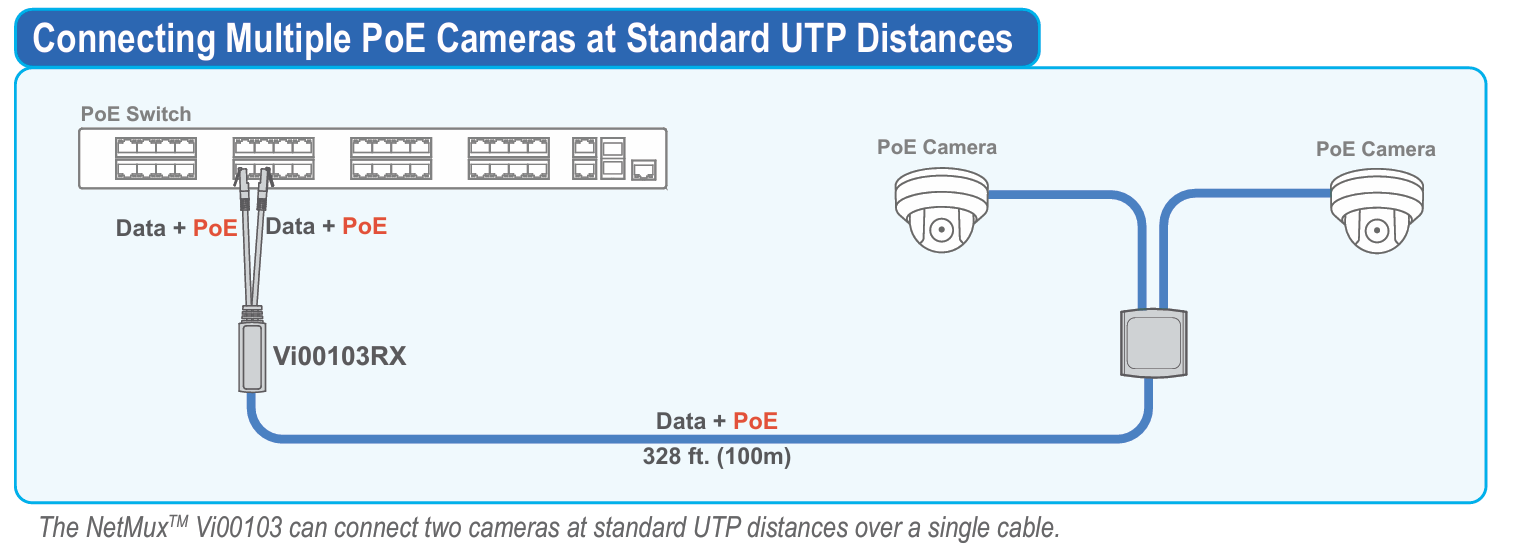

The Vi00103 port multiplexer enables connecting two IP/POE devices using a single Cat5/6 cable

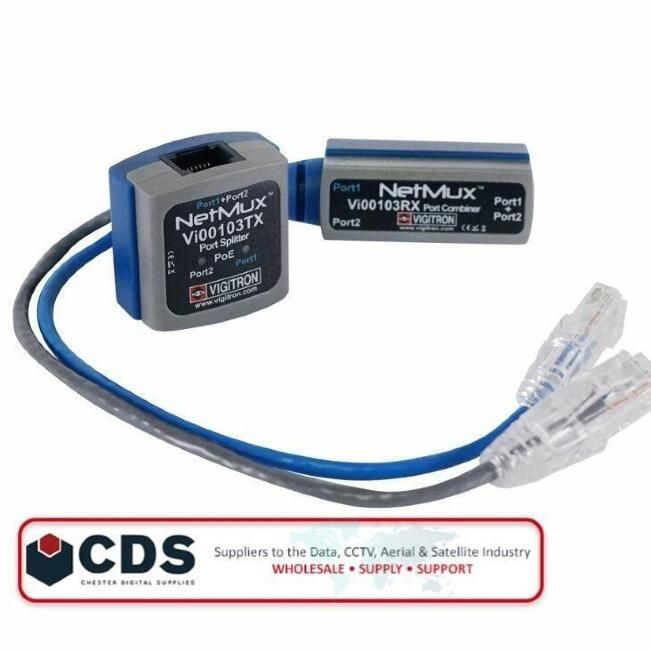

It features a port Combiner and a port Splitter. Combining two IP/PoE signal and transmitting them through only one Cat5/6 cable. With two built-in 10 inch Cat 5 pigtail cables to connect to the PoE switch. The Vi00103TX separates the combined signals and connects them to two ports of the PoE switch.

Specification

  • Electrical
  • Ethernet Interface    10BASE-T and 100BASE-T
  • Power Source    No external power source needed
  • Connections    Vi00103RX: 2 x Male RJ45, 1 x Female RJ45
  • Vi00103TX: 3 x Female RJ45
  • Status LEDS    Vi00103RX: N/A
  • Vi00103TX: Port 1 PoE Output: Green LED
  • PoE Compatibility    IEEE802.3af/at maximum 37W per port

Regulatory

  • Safety    CE, FCC
  • Environmental    RoHS, WEEE
  • Environmental
  • Humidity    0 to 95%, non-condensing
  • Temperature    Operating: -40°C to +75° C
  • Storage: -40°C to +80°C

Mechanical

  • Dimensions    Vi00103RX: 0.8x0.84x1.90 in, 2.03x2.13x4.83 cm (HxWxL)
  • Vi00103TX: 0.83x1.39x1.44 in, 2.11x3.53x3.66 cm (HxWxL)
  • Weight    Vi00103RX: 0.068 lb (31 g)
  • Vi00103TX: 0.035 lb (16 g)
  • Housing    ABS plastic, UL rating of 94V-0

PDFdata sheet
