5 Wire Taps & Splitters

Whyte Technologies Series 5 Taps & Splitters range provides high-quality passive devices for distributing IF and terrestrial signals in IRS and MATV installations.

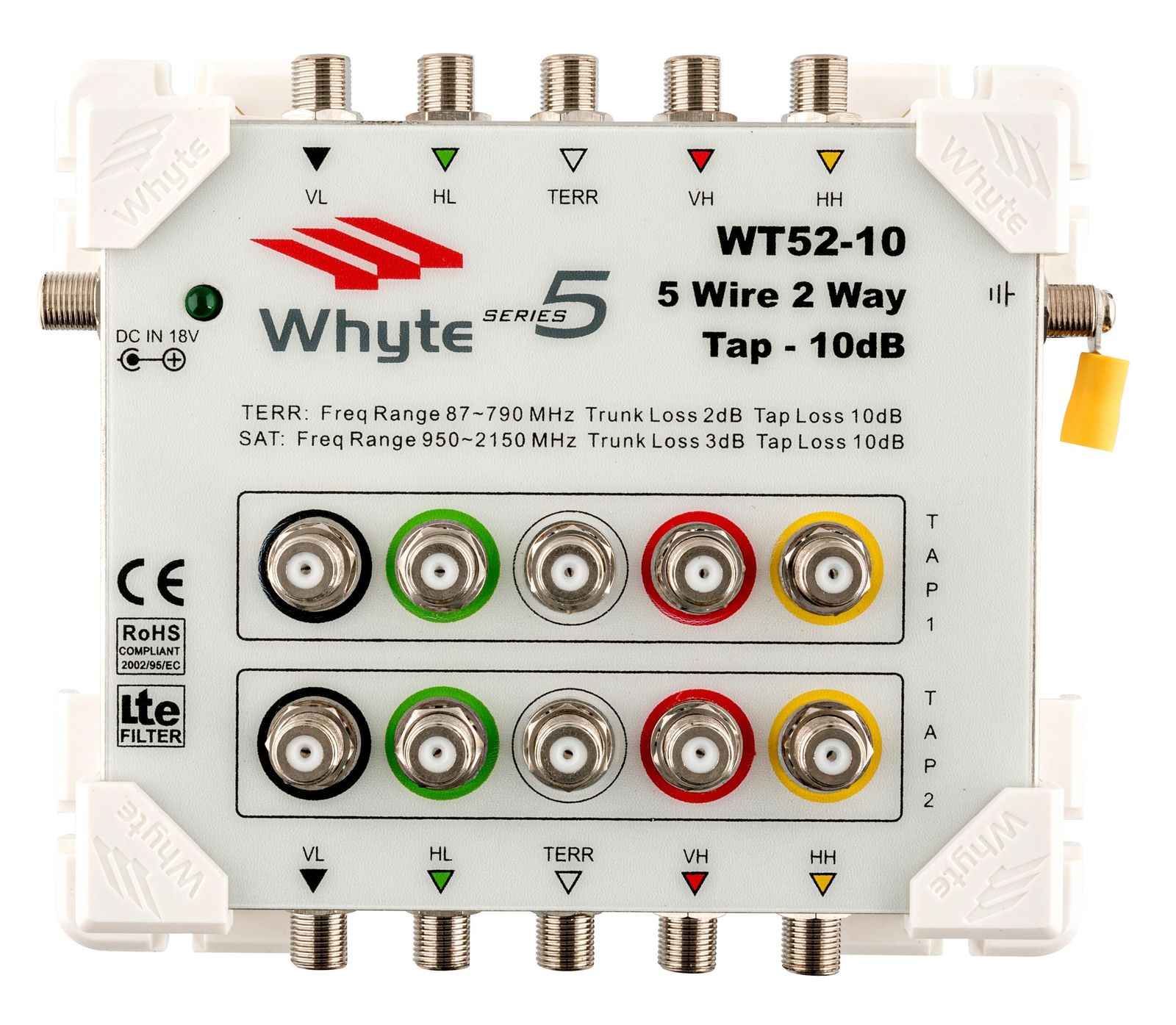

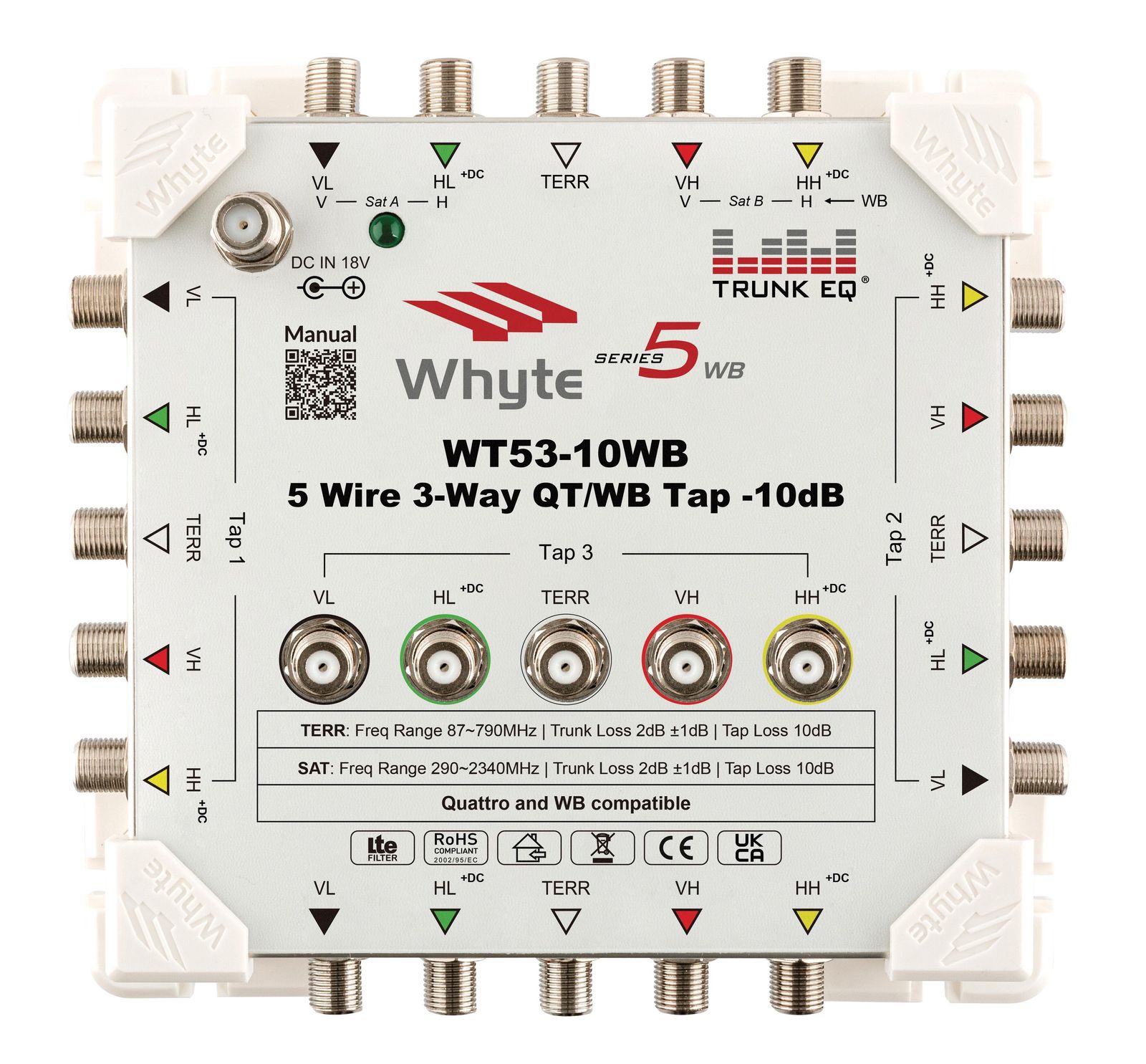

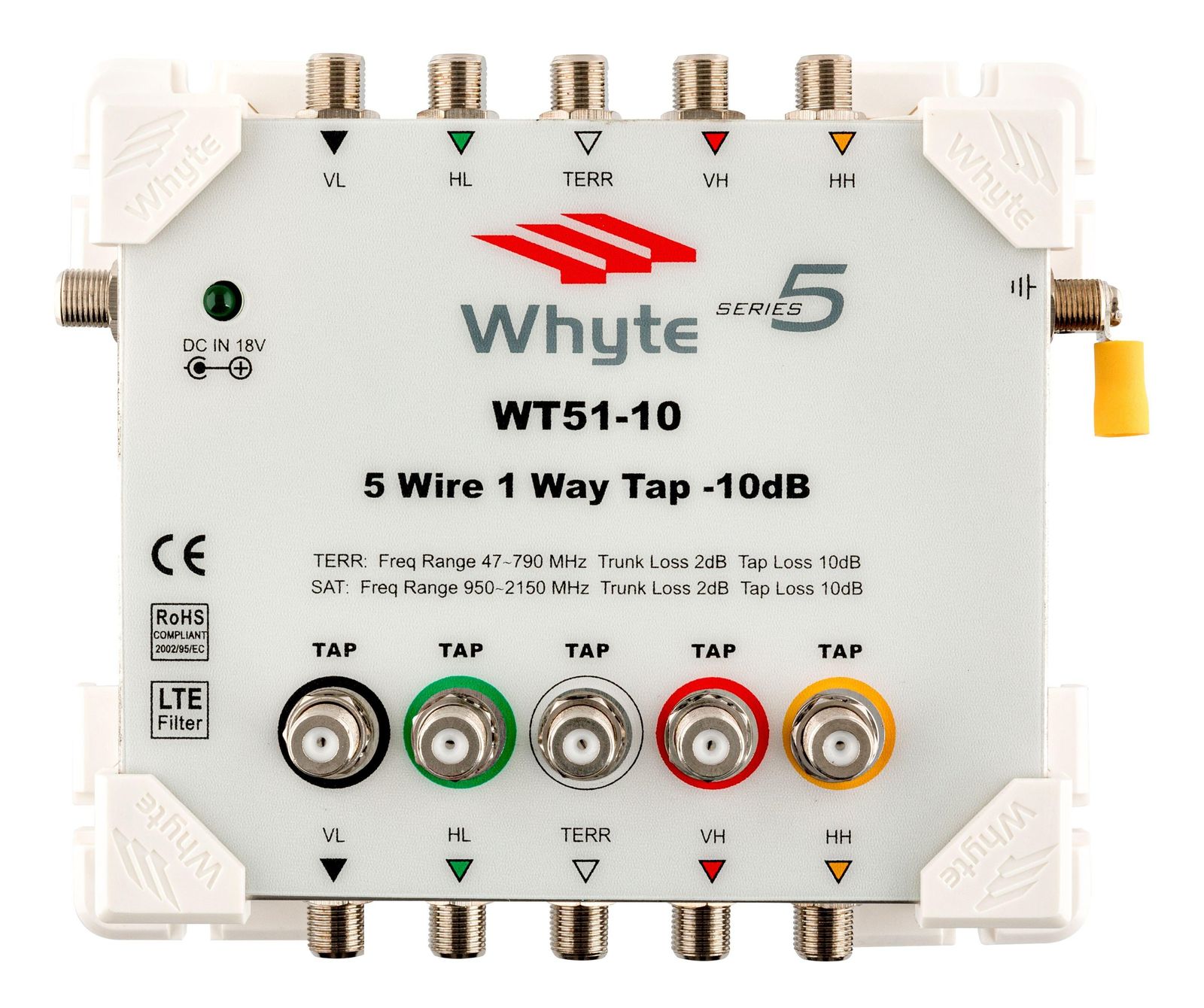

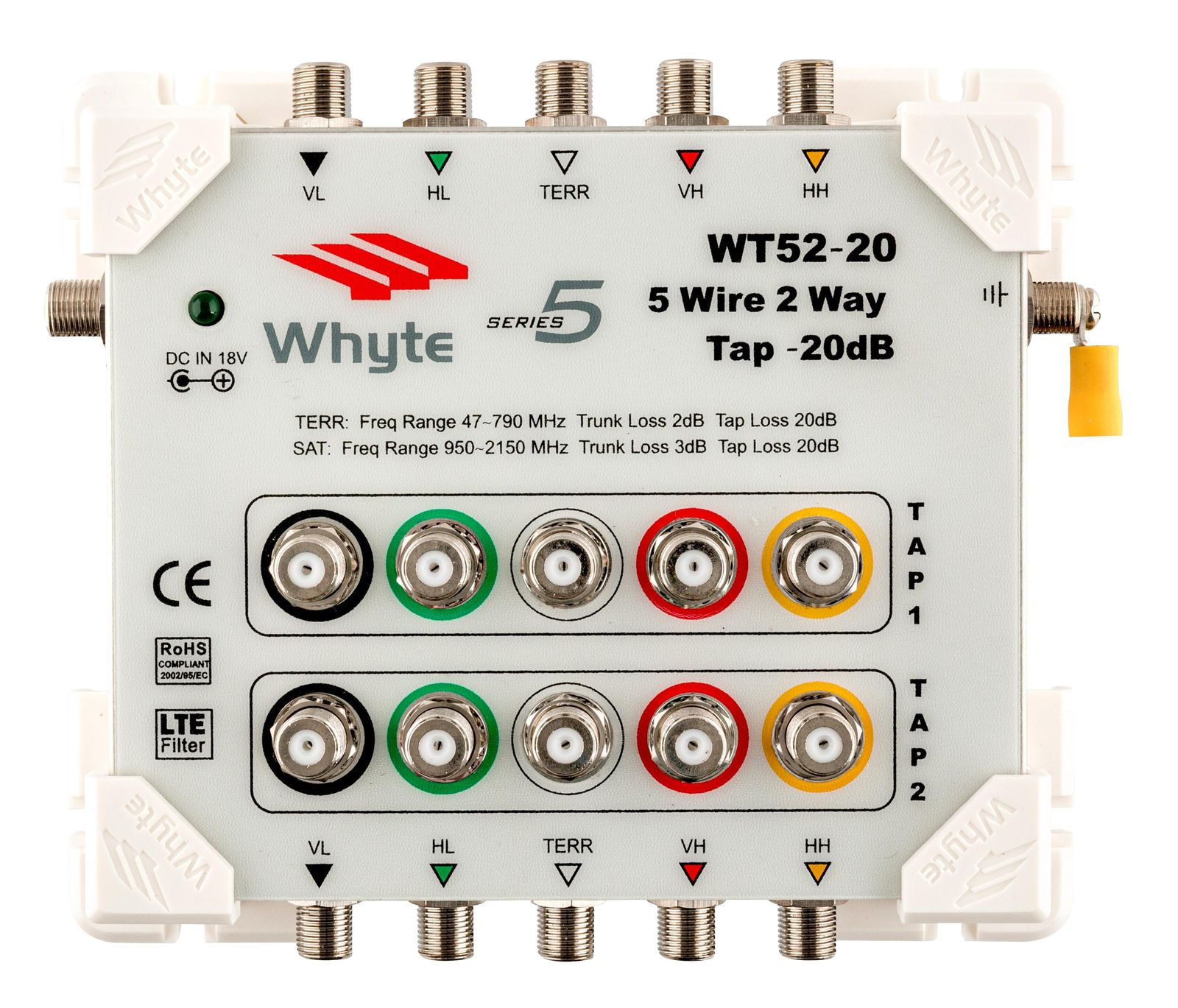

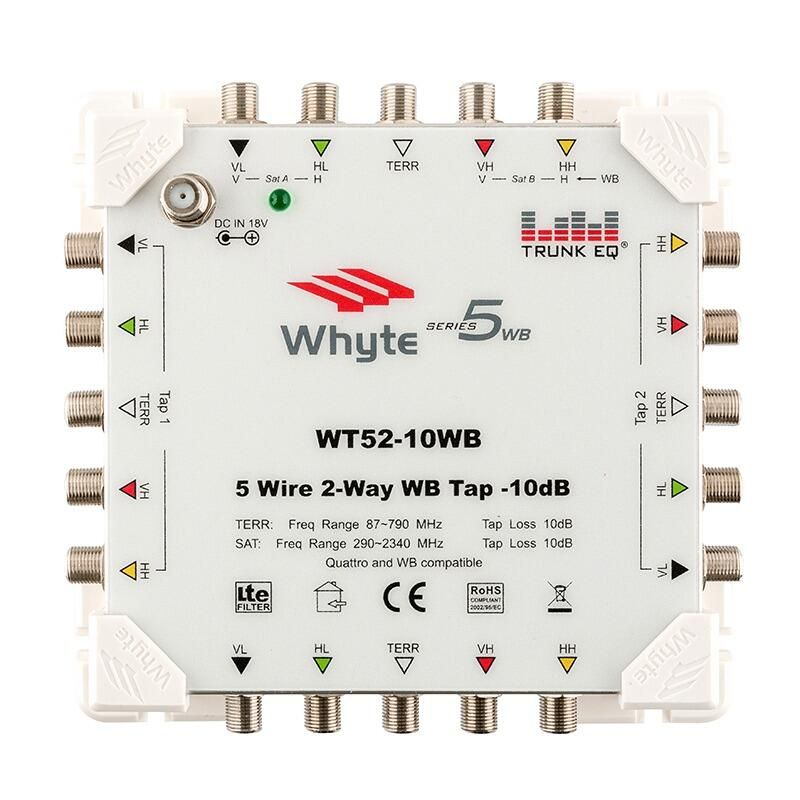

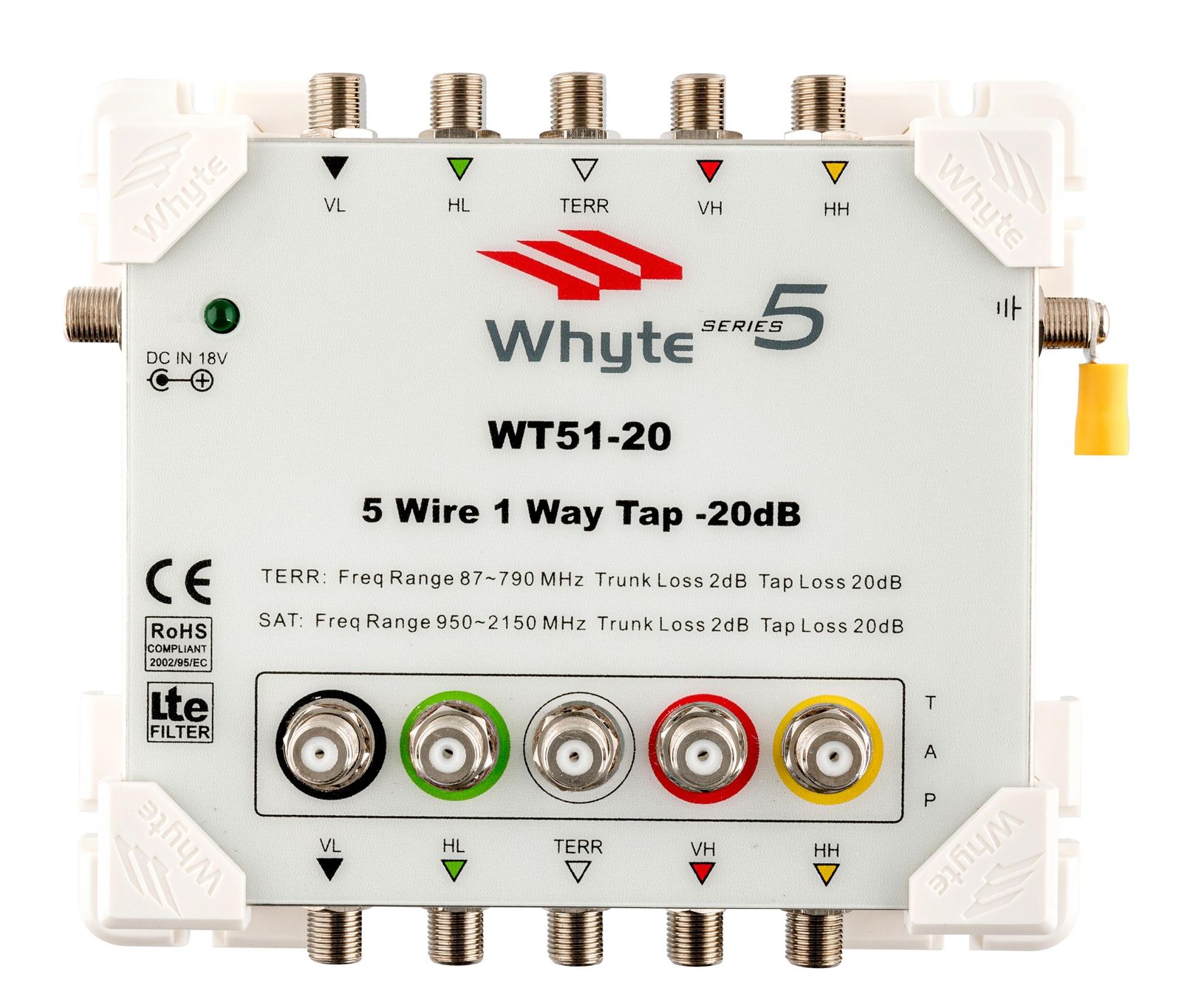

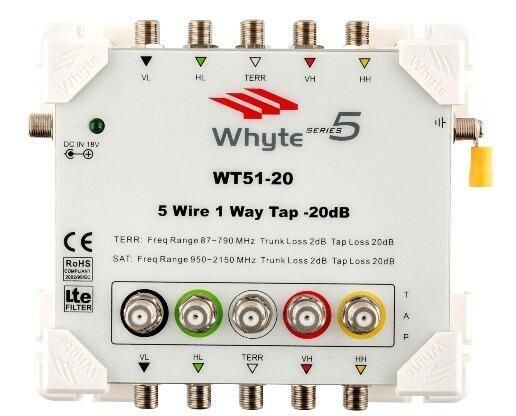

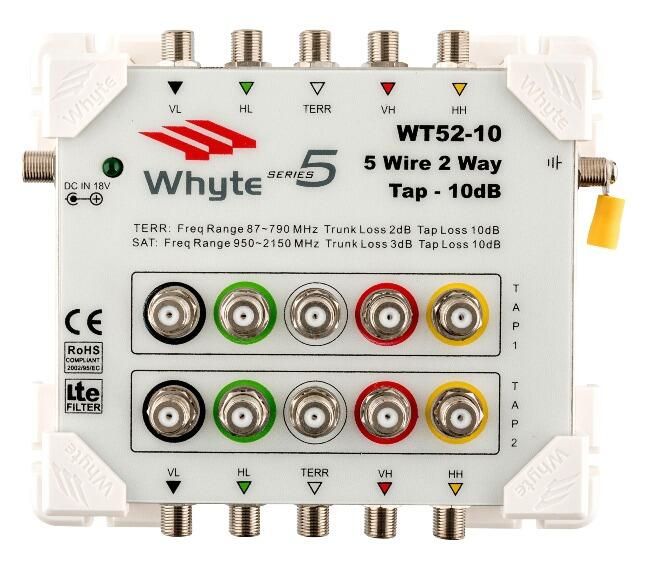

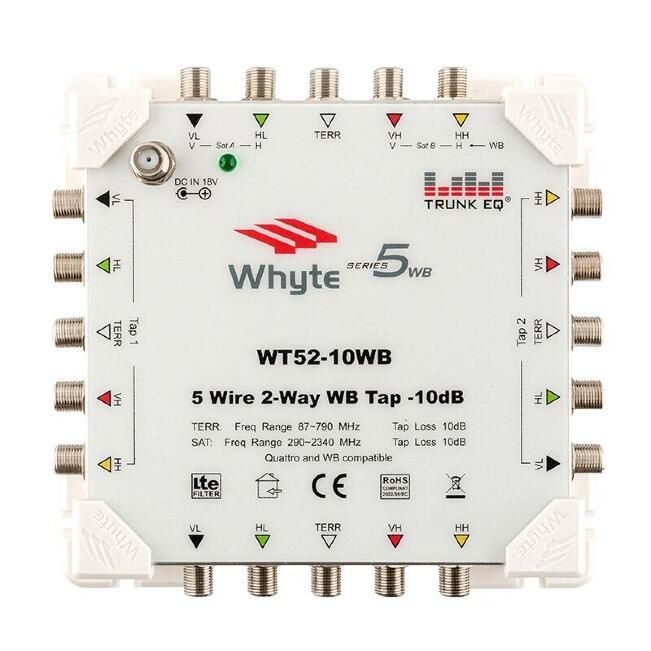

Available in 1-way, 2-way, and 3-way taps with 10dB or 20dB tap-offs, and a 2-way splitter with 2 x 4dB tap-offs, these units offer flexibility for professional multi-output installations.

Each tap and splitter comes with colour-coded 600mm F-type leads for versatile positioning, whether vertically or horizontally, and easily connects to multiswitches. Top-mounted tap outputs simplify installation and servicing, while a green LED power indicator confirms the presence of power on the HL and HH trunk lines.

Integrated LTE filtering protects against interference, and an auxiliary 18V input can inject power into HL & HH trunk cables when required. Multiple taps and splitters can be combined to create custom split networks with varying attenuation levels.

Features

• 5 Wire passive devices for IF and terrestrial signals
• Tap options: 1-way, 2-way, 3-way with 10dB or 20dB tap-offs

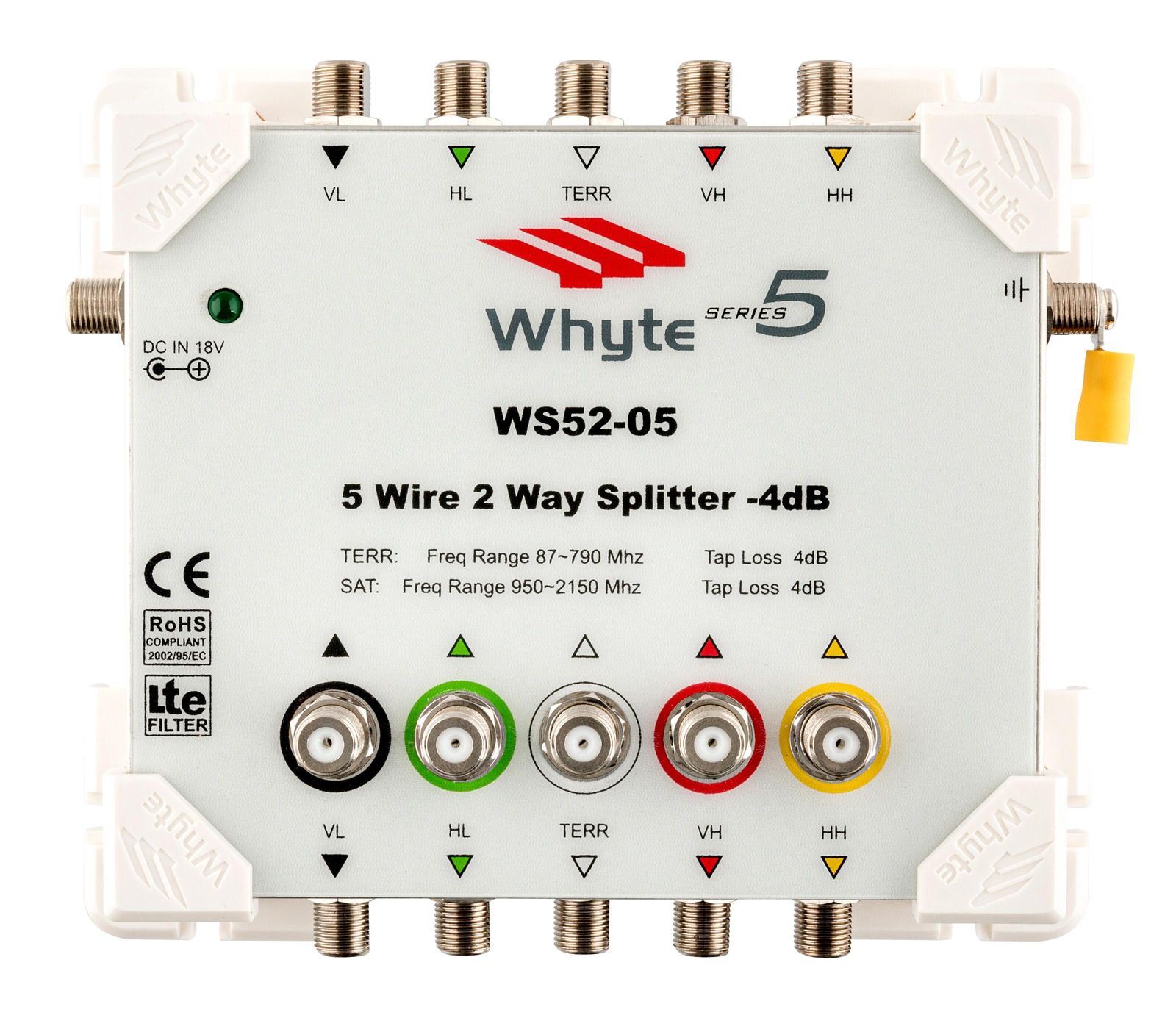

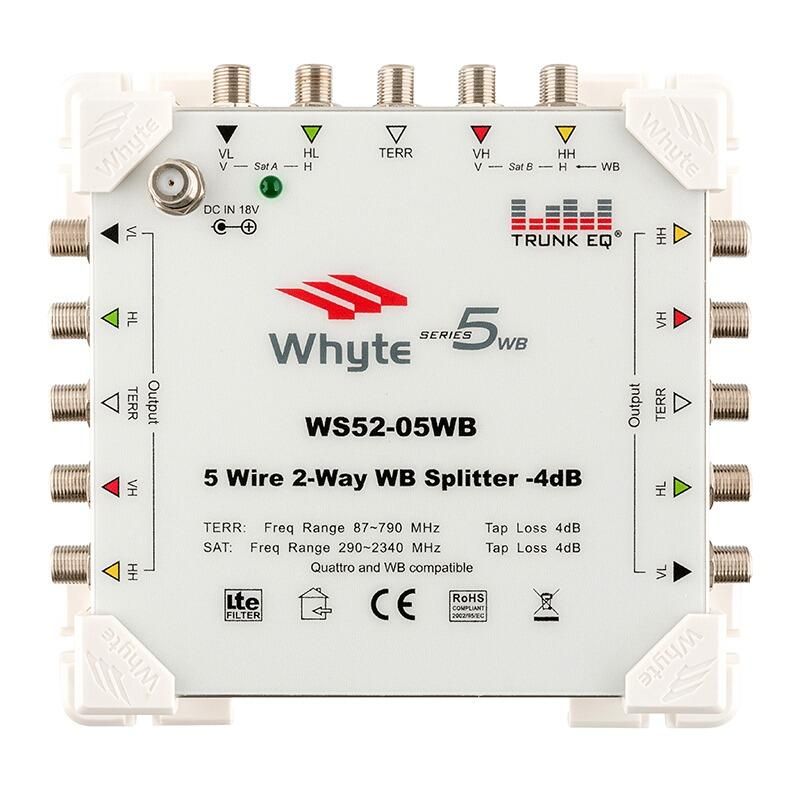

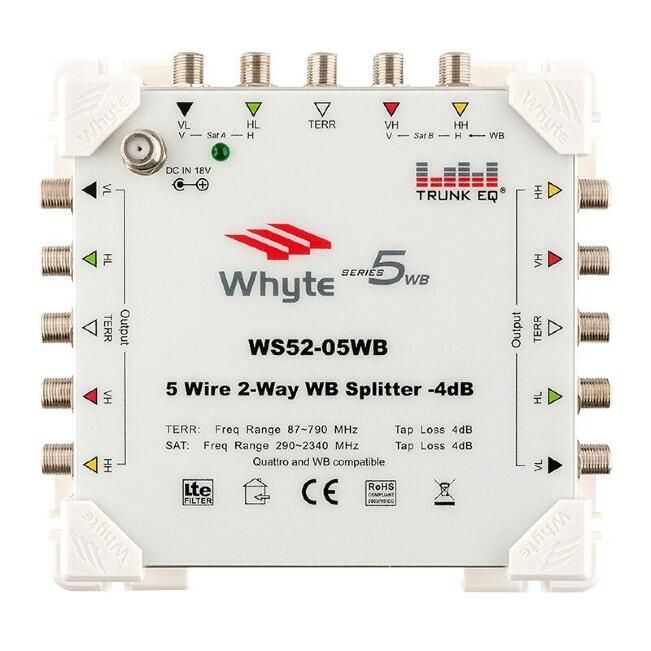

• 2-way splitter with 2 x 4dB tap-offs
• Colour-coded 600mm F-type leads included
• Top-mounted tap outputs for easy access
• Green LED power indicator for HL/HH trunk lines
• Built-in LTE filter
• Auxiliary 18V input for trunk line power
• Flexible installation: vertical or horizontal positioning
• Compatible with Whyte 5 Wire multiswitches
