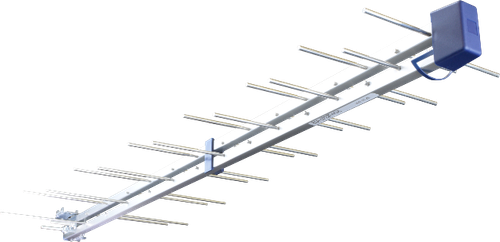

28 Element log-periodic£17.87
Triax United KingdomNeed extra coax cable ?
Wolsey WFAV 425 - 1 Input - 4 Out
Wideband Masthead 4 Way Amplifier & Power Supply Kit
Wolsey WFAV 425 Masthead Amplifier Kit is a high-performance masthead amplifier designed for boosting UHF TV signals while minimizing interference from LTE700 cellular networks. This professional-grade kit is ideal for both domestic and commercial installations, providing clear reception across multiple TV outlets.
Housed in a fully weatherproof, screened enclosure, the amplifier is engineered for installationat the top of the aerial mast, ensuring optimal signal quality from the source to your home or building.
Features
Input / Output: 1 Input, 4 Outputs
Variable Gain: 10–25 dB for precise signal adjustment
Weatherproof Housing: Designed for outdoor mast installation
LTE700 Protected: Minimizes interference from LTE cellular networks
Fully Screened Enclosure: Reduces RF interference for cleaner signals
F-Connector Input / Output: Easy, reliable connection
Kit Includes: Amplifier unit and power supply
Need extra coax cable ?
Sku:- 370582
£0.00
£31.80
Share the love with your friend
Complete the form below and we'll email your friend about this product
Be one of the first to know!
We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.
Wolsey masthead amplifier kit is a device used to boost the signal of a TV aerial. It is typically mounted on the mast of the aerial, close to the digital antenna, and is designed to amplify weak signals before they reach the TV set.
It receives the signal from the aerial, amplifies it, and then sends it down the coaxial cable to the TV set.
The power supply is used to power the amplifier unit, and is located inside the house near the TV set. It plugs into a standard electrical outlet and then connects to the amplifier unit using a low-voltage cable. The coaxial cable connects the amplifier unit to the TV set, and the connectors are used to attach the various components together.
Aerial masthead amplifier kits are particularly useful in areas with weak TV signals or where the aerial is located far from the TV set. They can help improve the quality and strength of the signal, resulting in clearer and more reliable TV reception.
ORDER INFORMATION
EAN Number 5702663705821
CONNECTORS
Number of inputs 1
Number of outputs 4
ELECTRICAL
Impedance 75 Ω
FREQUENCY RANGE
Band UHF
Input 1 - frequency 470...694 MHz
Input 1 - channels 21...48
LTE protection @ 700Mhz
GAIN
Input 1 - gain 10...25 dB
Input 1 - noise figure 2,1 dB
RETURN LOSS
Return Loss 10 Typ dB
CHARACTERISTICS
Max. Output level (@ -60dB IMD) 85 dBµV
OPERATIONAL
- DC Operating voltage 12 VDC
- DC Current consumption 100 mA
- MECHANICAL
- Colour Black
- Product Height 215 mm
- Product Width 120 mm
- Product Depth 60 mm
- Packaging Height 0.060 m
- Packaging Width 0.120 m
- Packaging Depth 0.220 m
- Packaging Volume 0.002 m3
- Net Weight 0.550 kg
- Tara Weight 0.065 kg
- Total Weight 0.615 kg
Remarks Kit includes WPS 100 Power Supply, 12VDC, 100mA Max Fully screened
Spec Sheet
