28 Element Log Periodic Group K Aerial Group K Protects 5G/LTE Channels 21-48

Medium gain for good-medium signal Solid build, strong elements & rigid

For Medium to strong signal areas.

Can be mounted for horizontal or vertical Polarisation.

Solid build quality, stronger elements and a rugged construction.

Excellent log periodic impulse noise rejection.

Overcomes issues with 5G & 4G, specially developed to reduce bandwidth without using filters.

Moulded F connector in weather resistant rubber housing.

The F connector can be simply twisted into the required position (Vertical or Horizontal) with no need for any disassembly.

So the connector will always be pointing downward.

The weather boot sits inside the recess of the F connector, making the cable connection very weather proof.

Very flat frequency response over channel 21-48.

Universal bracket for installation suitable for horizontal or vertical polarity mounting.

Aerials are individually bagged in bulk cartons with full instructions included.


£0.00
£14.34

QTY

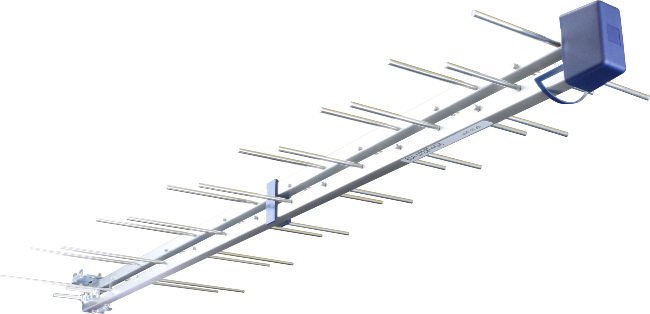

28 Element Log Periodic Group K Aerial - BLA-LP28K

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Blake Uk 28 element log-periodic group K aerial is a type of directional antenna used for receiving and transmitting radio signals over a wide range of frequencies. It is a larger and more complex version of the 20 element log-periodic group K antenna, and is designed to operate over a wider frequency range with greater gain.

The 28 element log-periodic group K aerial consists of a series of dipole elements arranged in a specific pattern. The dipoles are arranged in pairs, with each pair consisting of a longer and a shorter dipole. The longer dipoles are connected to the feedline at the front of the antenna, and the shorter dipoles are connected to the rear. The spacing between the elements varies in a logarithmic fashion, which allows the antenna to operate over a wide frequency range.

The 28 element log-periodic group K aerial is designed to operate in the UHF and microwave frequency ranges, typically from 470 MHz to 1000 MHz or higher. It has a gain of around 12 to 15 dBi, and a beamwidth of around 30 degrees. The antenna is commonly used for television broadcasting, as well as for communication and surveillance applications.

Compared to the 20 element log-periodic group K antenna, the 28 element version offers greater gain and a wider frequency range, but it is also larger and more expensive to manufacture.

Technical Information:

Product            Channel Bandwidth (MHz)       No. Elements    Gain (dBi)         Front-to-back Ratio (dB)            Length (mm)

BLA-LP28K      470-690 (Ch.21-48)                          28                 10                            >22                                       1090

CDS are a trusted Chester tv aerials supplier stocking various products that are associated with aerial installation and aerial servicing. From tv aerial testers, tv distribution amplifier, tv aerial adapter, coaxial aerial cable, aerial antenna, aerial clamp, pole mount bracket and associated products.

PDFSpec Sheet
