110 Punch Down Tool for RJ45

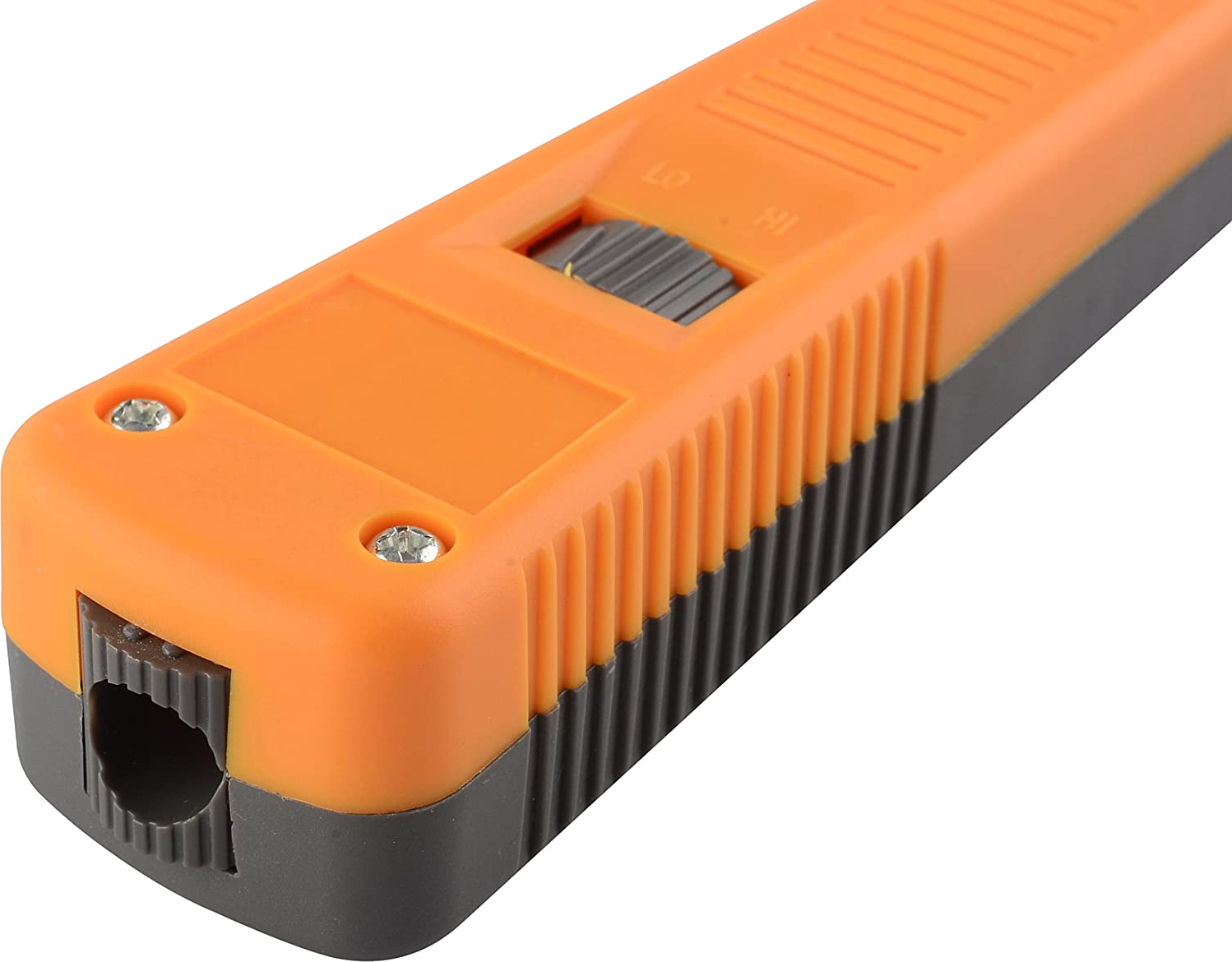

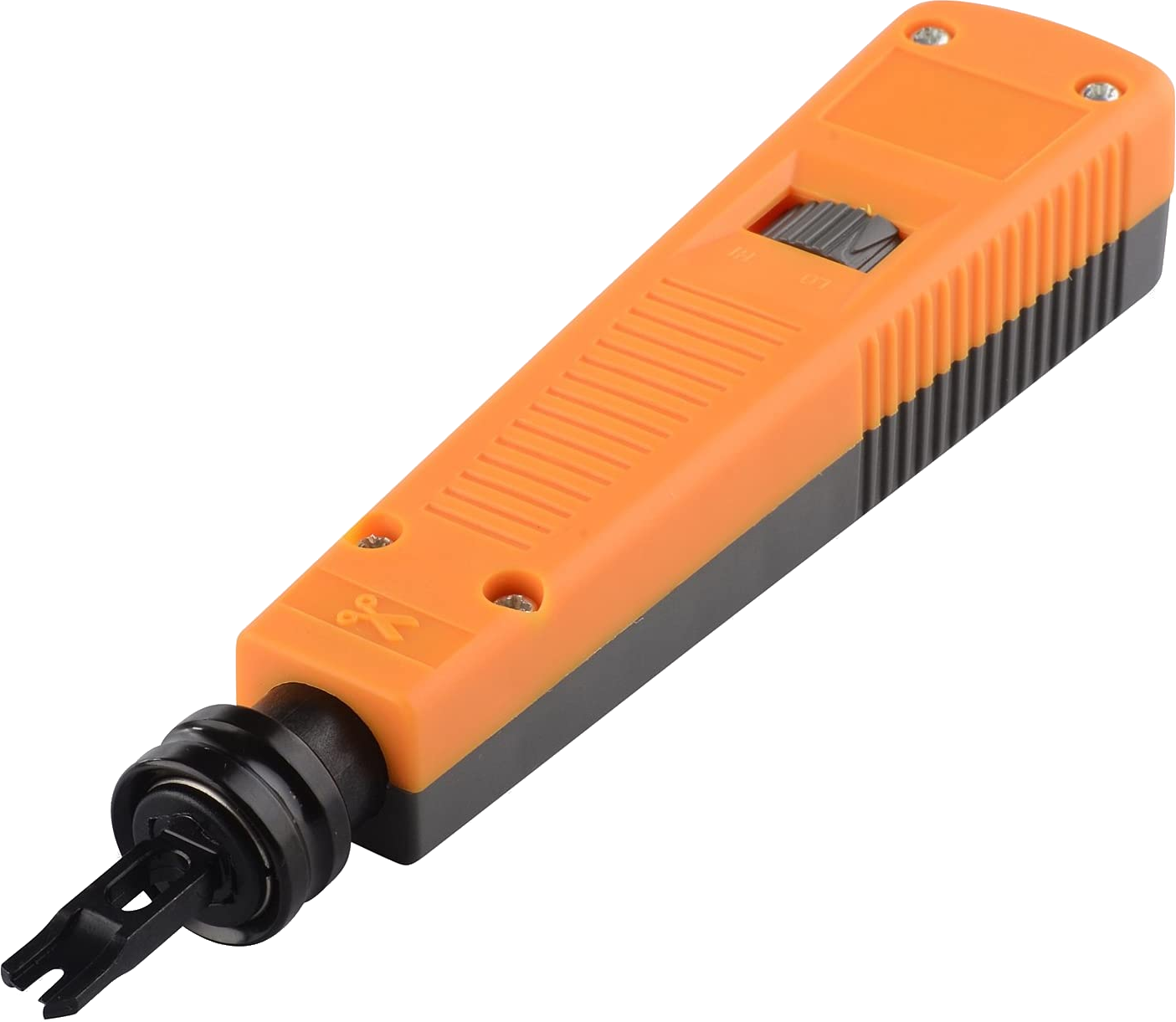

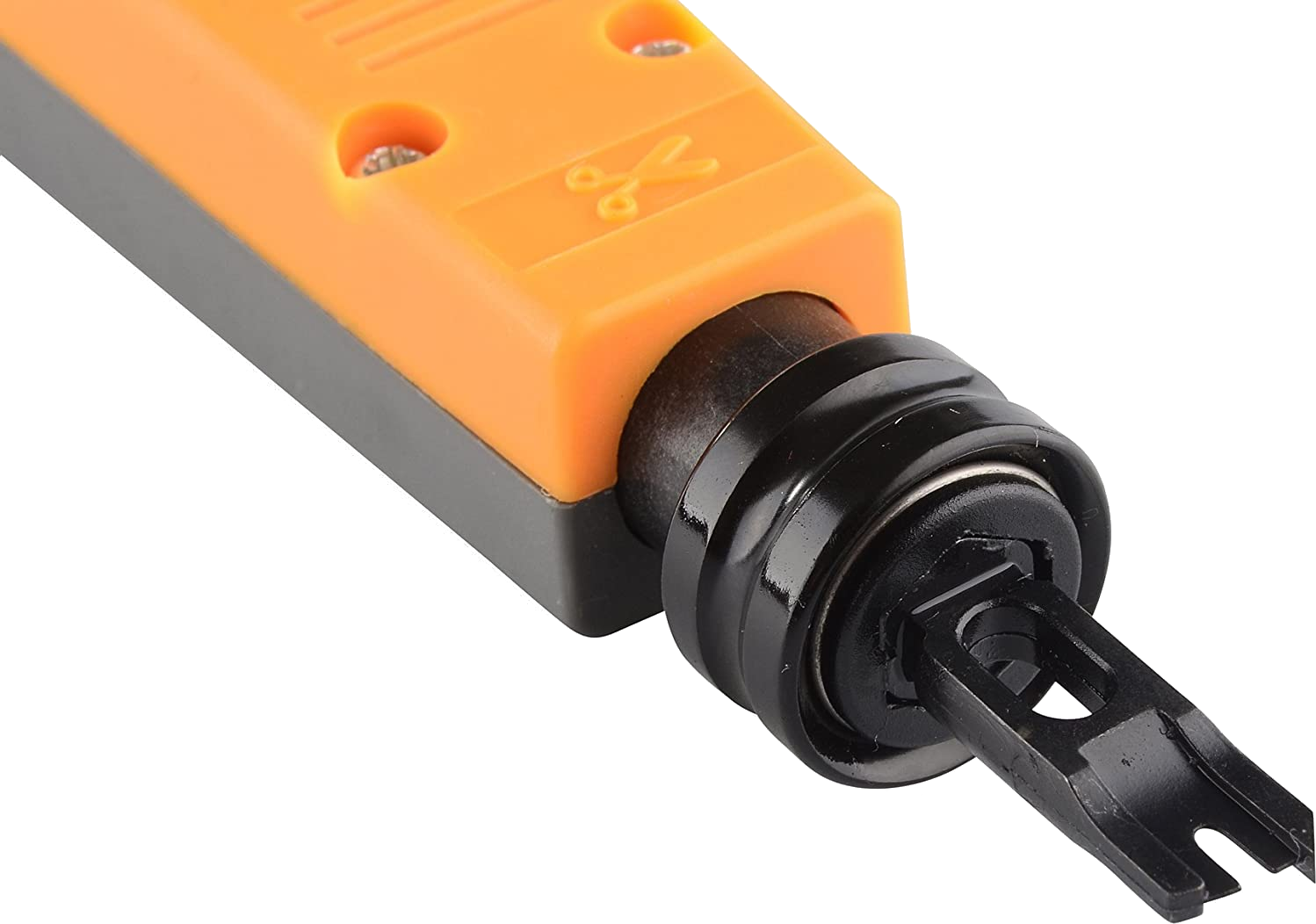

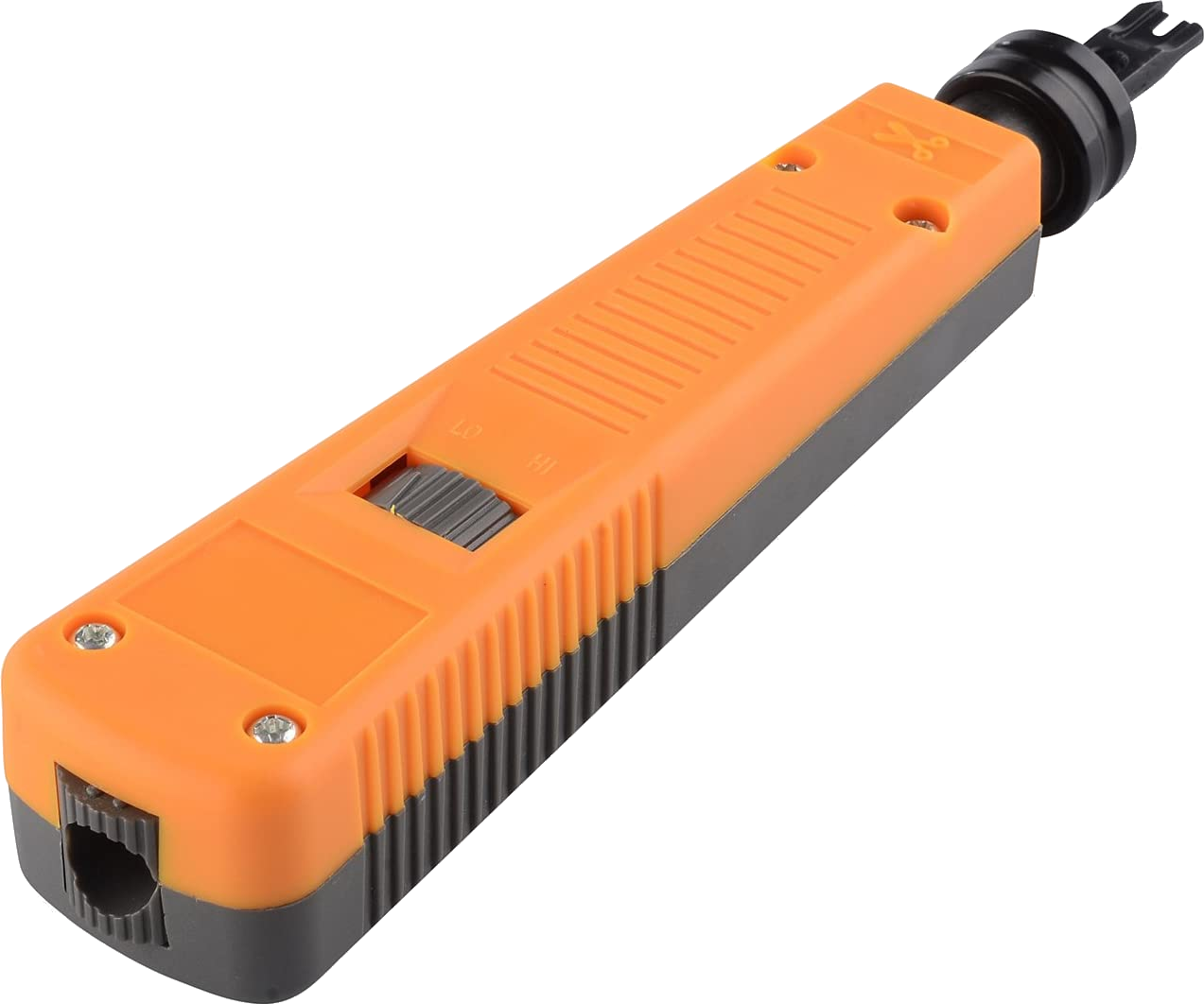

This 110 Punch Down Tool is a handheld tool used in telecommunications and networking to terminate and connect wires, typically in a structured cabling system using a 110 block. RJ45 connectors are commonly used for Ethernet connections, and the punch down tool is often used to terminate the individual wires from an Ethernet cable onto a patch panel, wall jack, or other networking equipment.

Here's how it works:

Preparation: The Ethernet cable's outer insulation is stripped off, revealing the twisted pairs of wires inside. These wires are typically color-coded and follow a standard pattern.

Termination: Each individual wire in the Ethernet cable is aligned with its corresponding slot or terminal on a 110 block or a patch panel. The punch down tool is then used to push the wire into the terminal, ensuring a secure connection. The tool's impact forces the wire into place and cuts off the excess, creating a solid connection without the need for soldering or crimping.

110 Block: A 110 block is a type of connection block designed for high-density terminations in telecommunications and networking applications. It has a series of terminals where wires are inserted and terminated. The punch down tool's name comes from the action of "punching down" the wire into these terminals.

Patch Panels and Euro Modules: In structured cabling systems, patch panels and wall jacks are used to organize and manage network connections. They have rows of terminals that correspond to each Ethernet cable. The punch down tool is used to terminate the wires from the cables onto these terminals, creating a clean and organized setup.

By using a 110 Punch Down Tool, network installers and technicians can quickly and efficiently terminate numerous cables, ensuring proper connectivity and signal integrity in networking and telecommunications infrastructure.
