Adastra UM60 100v Mixer-Amp

100v Mixer-amplifiers with USB audio player

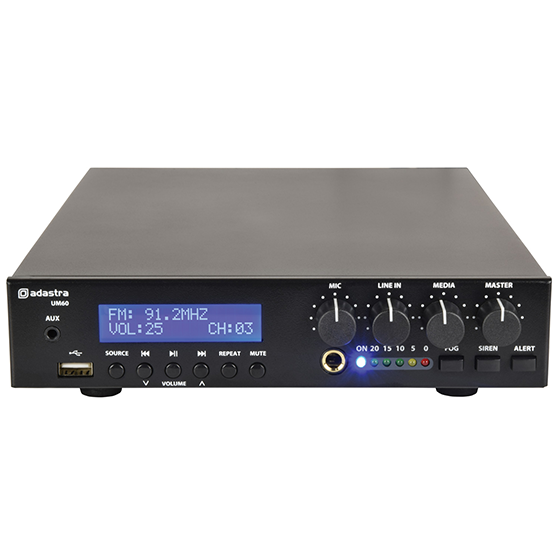

Compact 100V Mixer-Amp

100V mixer amplifiers with USB audio player, FM tuner, and BlueTooth wireless receiver in an ultra-compact housing.

Microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume.

Mono output to either 100V line or 8 Ohms speaker load is connected via screw terminals on the rear panel.

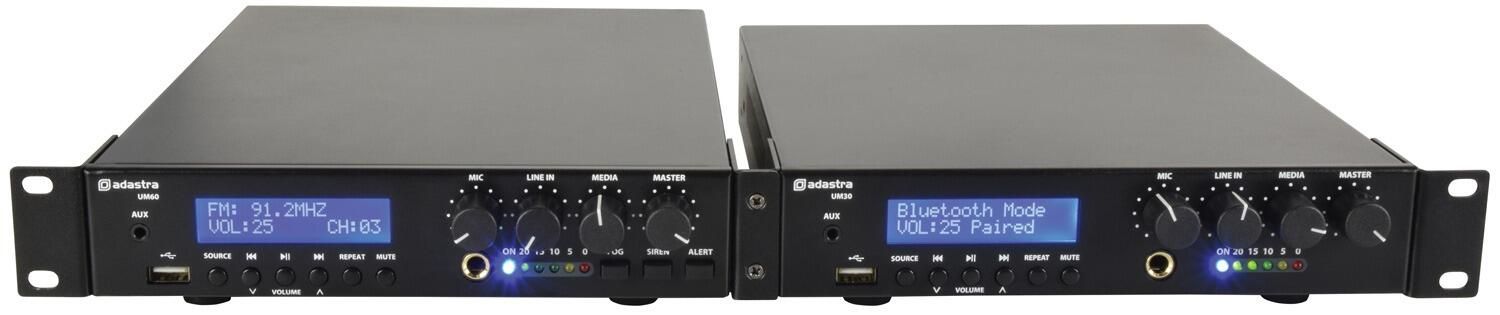

Supplied with hardware for mounting 2 units side by side in a 1U 19" rack space.

Designed as a versatile solution for small to medium PA installations.

Trade log in

£0.00
£137.87
  • Add 1 x FM / DAB Combined VHF Antenna

QTY


Adastra UM60 - Compact 100V Mixer-Amp 953.176UK

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Adastra Compact 100V Mixer-Amp is a versatile audio device designed for use in small to medium-sized commercial audio installations. It combines the functions of a mixer and an amplifier in a compact unit, making it ideal for use in environments such as restaurants, bars, cafes, retail stores, and conference rooms.

The mixer section of the Compact 100V Mixer-Amp features four input channels, each with its own volume control and EQ adjustment. These inputs can be used to connect a range of audio sources, including microphones, line-level devices, and media players such as CD or MP3 players.

The amplifier section of the Compact 100V Mixer-Amp provides 100 watts of power output, with a 100V line or 8 Ohm speaker output. The unit also features a priority function, which can be used to override other inputs when a higher-priority source is detected, such as an emergency announcement or paging system.

Other features of the Adastra Compact 100V Mixer-Amp include a built-in media player with USB and SD card inputs, as well as an integrated Bluetooth receiver for wireless audio streaming from compatible devices.

Adastra Compact 100V Mixer-Amp is a reliable and flexible audio solution for small to medium-sized commercial installations, offering a range of features and inputs to suit a variety of applications.

  • Ultra-compact form factor
  • Efficient class D amplifier design
  • Internal USB/FM/BT audio player
  • 100V line or 8 Ohms operation
  • Amplifier: Class D + transformer output
  • Input impedance: 1k Ohms (mic/line)
  • Input sensitivity: -10dB (line), -45dB (mic)
  • SNR: 80dB(line), 75dB(mic)
  • Frequency response: 100Hz-18kHz
  • Mute 24V relay contacts
  • Output power: 60W rms
  • Inputs: 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm) Internal USB/FM/BT player
  • Line output: 2x RCA (mono)
  • Speaker outputs: Screw terminals - 100V / 8R / Com
  • THD: <0.4% @ 1kHz
  • DC power: 24V screw terminals
  • Power supply170-264Vac, 50Hz (IEC)
  • Alarm output: Fog, siren & alert generator

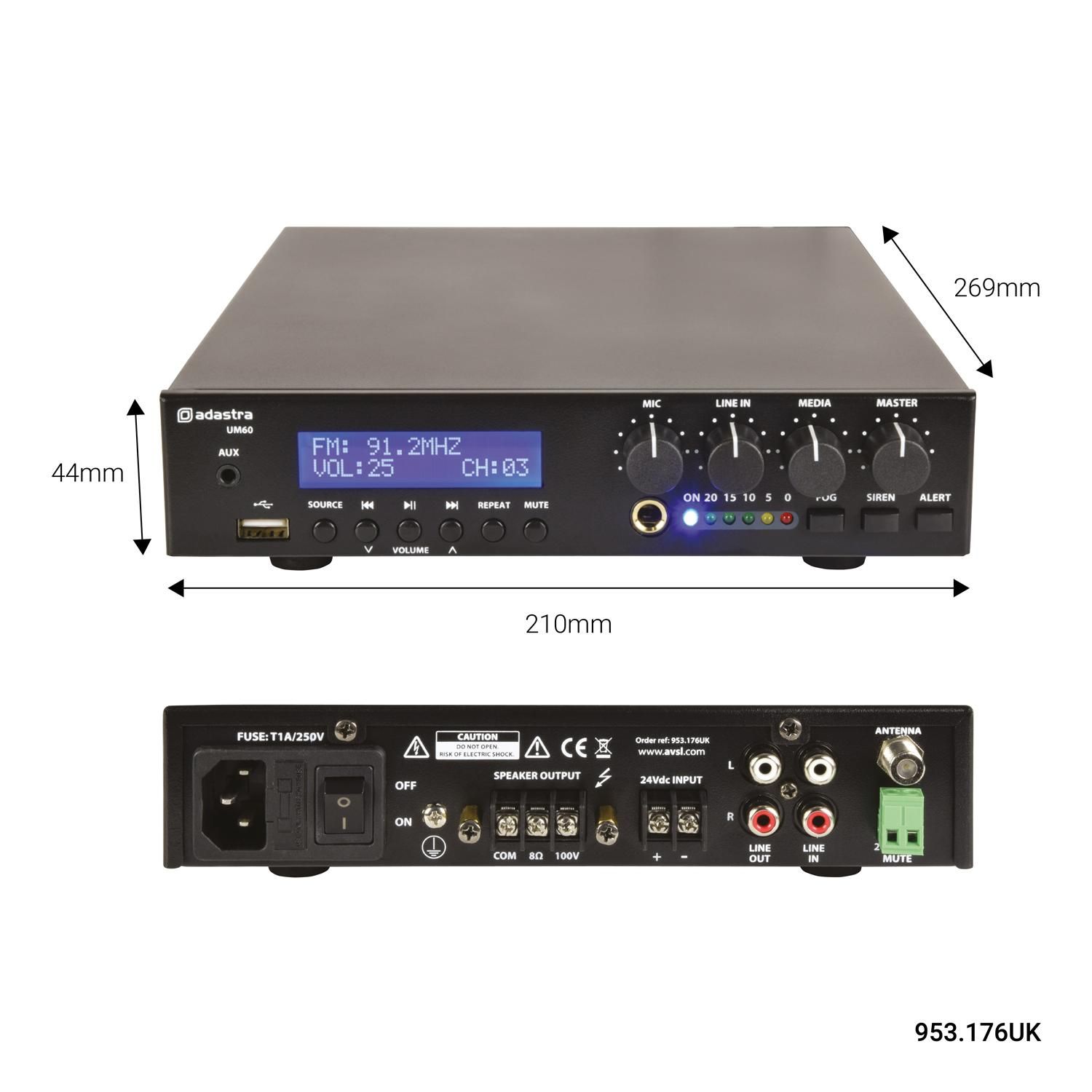

  • Dimensions (HxWxD): 44x210x269mm
  • Weight: 2.47kg
