Blake Uk BLA-LP20K - 20 Element Log

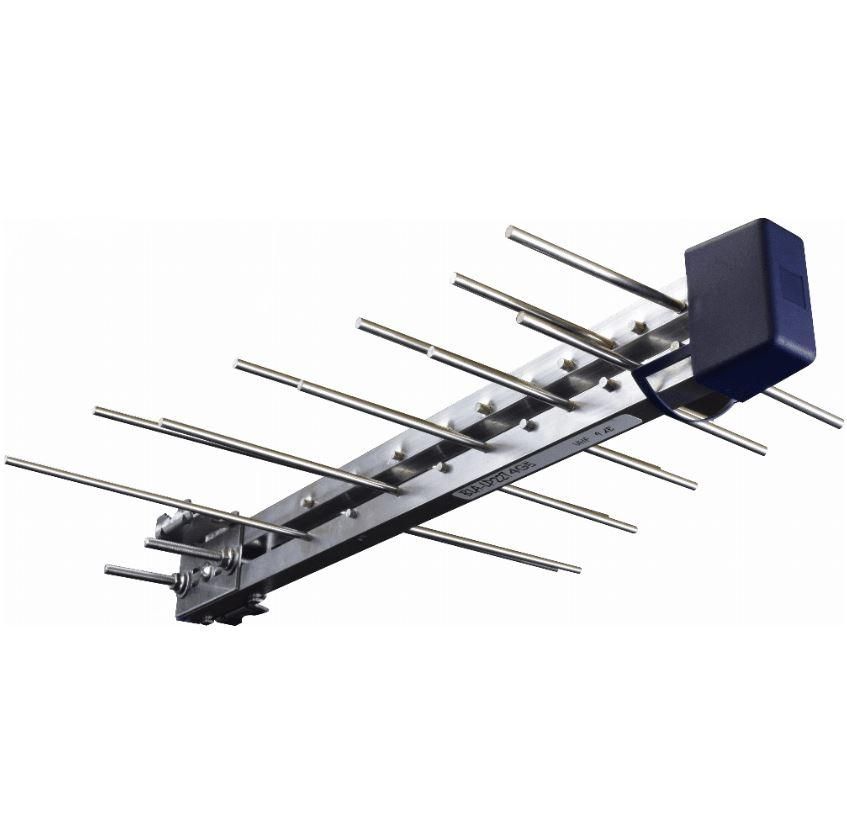

20 Element Log-Periodic Group K Aerial

With "Twistable F" to ensure the F-Connector always points downwards to ensure weatherproof connections

Features:

For strong signal areas.

Can be mounted for horizontal or vertical Polarisation.

Solid build quality, stronger elements and a rugged construction.

Excellent log periodic impulse noise rejection.

Overcomes issues with 5G & 4G, specially developed to reduce bandwidth without using filters.

Moulded F connector in weather resistant rubber housing.

The F connector can be simply twisted into the required position (Vertical or Horizontal) with no need for any disassembly.

So, the connector will always be pointing downward.

The weather boot sits inside the recess of the F connector, making the cable connection very weatherproof.

Very flat frequency response over channel 21-48.

Universal bracket for installation suitable for horizontal or vertical polarity mounting.

Aerials are individually bagged in bulk cartons with full instructions included.

Trade log in

£0.00
£12.30

QTY


Blake Uk 20 Element Log BLA-LP20K

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Blake-Uk 20 element log-periodic group K refers to a particular configuration of elements in a log-periodic antenna. The log-periodic antenna is a type of directional antenna that can operate over a wide range of frequencies. The 20 element log-periodic group K is one of the common designs used in log-periodic antennas, and it consists of 20 elements arranged in a specific pattern.

The 20 element log-periodic group K consists of a series of dipoles of varying lengths. The dipoles are arranged in pairs, with each pair consisting of a longer and a shorter dipole. The longer dipoles are connected to the feedline at the front of the antenna, and the shorter dipoles are connected to the rear. The spacing between the elements varies in a logarithmic fashion, which allows the antenna to operate over a wide range of frequencies.

The 20 element log-periodic group K is designed to operate in the VHF and UHF frequency ranges, typically from 150 MHz to 800 MHz. It has a gain of around 8 to 10 dBi, and a beamwidth of around 40 degrees. This digital aerial is commonly used for television and radio broadcasting, as well as for communication and surveillance applications.

CDS are a trusted Chester tv aerials supplier stocking various products that are associated with aerial installation and aerial servicing. From tv aerial testers, tv distribution amplifier, tv aerial adapter, coaxial aerial cable, digital aerial antennas, aerial clamp, pole mount bracket and associated products.

Technical Information:

Channel Bandwidth (MHz) - 474-690 (Ch.21-48

  • No. Elements – 22
  • Gain (dBi) – 9
  • Front-to-back ratio (dB) – 22
  • Length (mm) – 450
  • UHF, DAB or FM - UHF
  •  F Type
  • Aerial Group – K
  • Good, Moderate or Poor Signal Aerial – Good
  • Bagged individually
