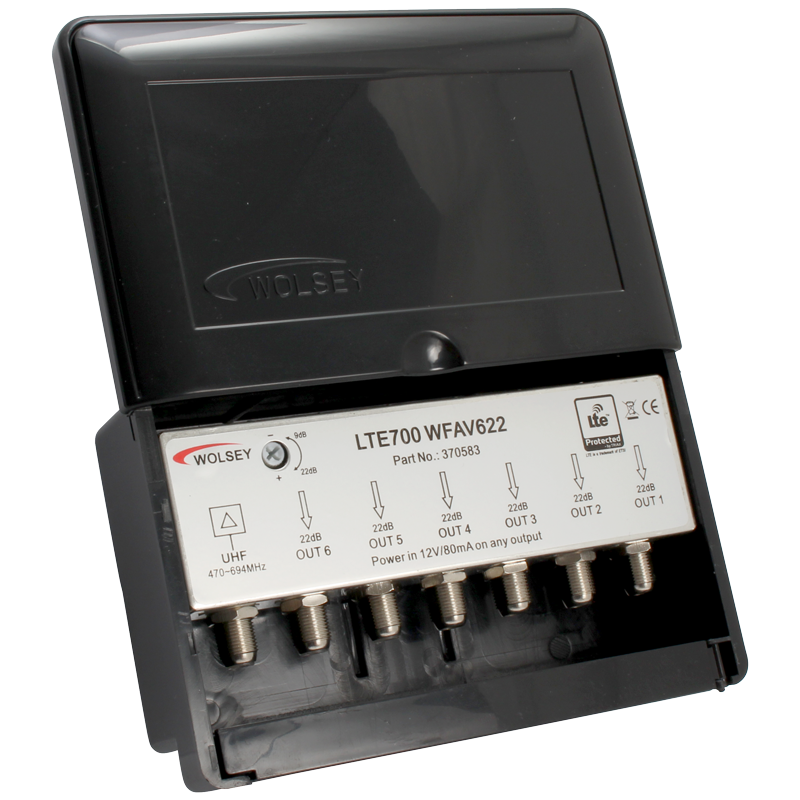

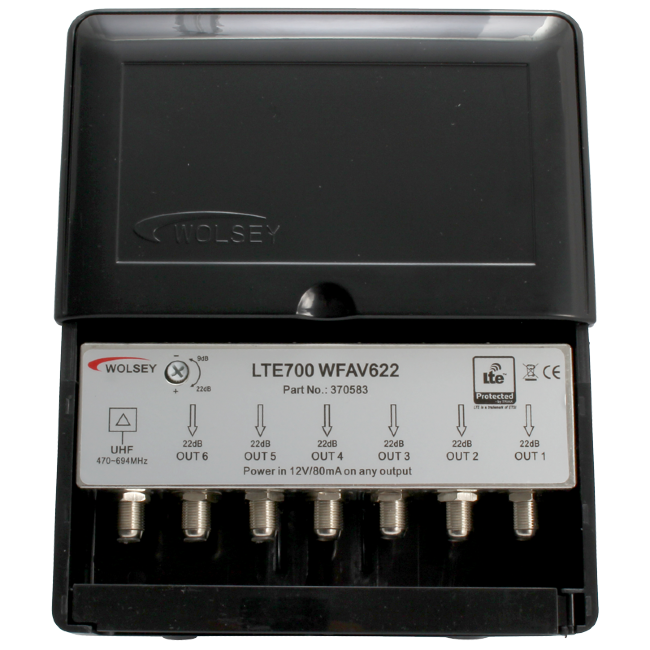

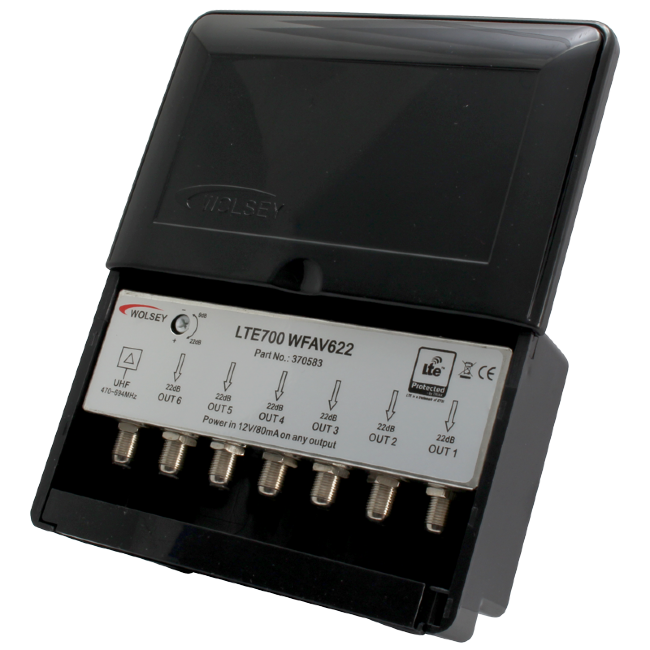

Wolsey LTE 700 WFAV 622

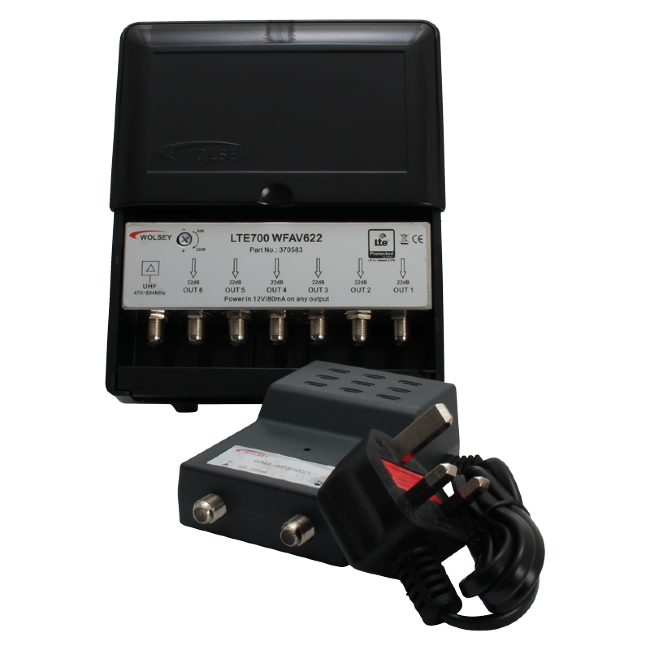

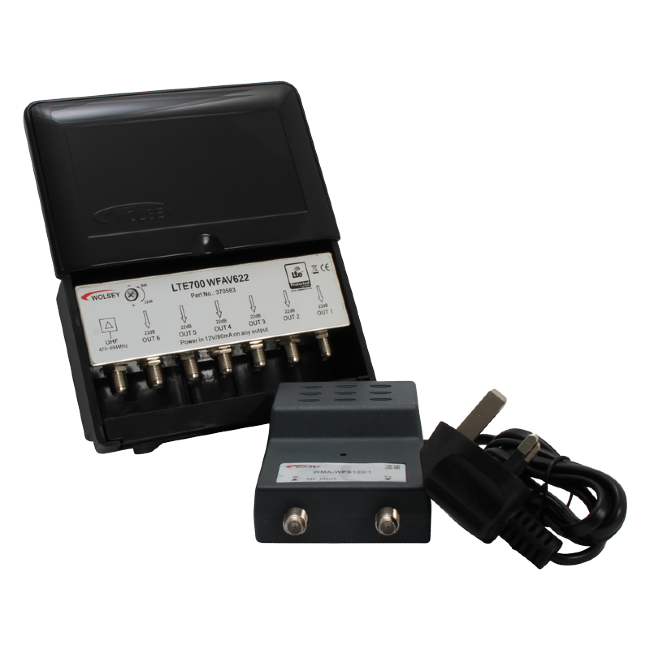

1 In 6 Out F-Connector Masthead Amplifier and Power Supply Kit.
The kit consists of several components, including an amplifier unit & power supply. The amplifier unit is housed in a weatherproof enclosure and is designed to be installed at the top of the aerial mast.
- 1 Input 6 Output
- 12-22 dB Variable Gain
- Weatherproof housing
- Fully-screened enclosure
- Supplied with PSU
- 2-year Warranty
- SKU :- 370563
Sku :-370583

Share the love with your friend
Complete the form below and we'll email your friend about this product
You’ll earn 0 reward points with this purchase.
Be one of the first to know!
We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.
Wolsey masthead amplifier kit is a device used to boost the signal of a TV aerial. It is typically mounted on the mast of the aerial, close to the digital antenna, and is designed to amplify weak signals before they reach the TV set.
It receives the signal from the aerial, amplifies it, and then sends it down the coaxial cable to the TV set.
The power supply is used to power the amplifier unit, and is located inside the house near the TV set. It plugs into a standard electrical outlet and then connects to the amplifier unit using a low-voltage cable. The coaxial cable connects the amplifier unit to the TV set, and the connectors are used to attach the various components together.
Aerial masthead amplifier kits are particularly useful in areas with weak TV signals or where the aerial is located far from the TV set. They can help improve the quality and strength of the signal, resulting in clearer and more reliable TV reception.
ORDER INFORMATION
EAN Number | 5702663705630 |
CHARACTERISTICS
Max. Output level (@ -60dB IMD) | 83 dBµV |
CONNECTORS
Number of inputs | 1 |
Number of outputs | 6 |
ELECTRICAL
Impedance | 75 Ω |
FREQUENCY
Input 1 - frequency | 470...790 MHz |
Input 1 - channels | 21...60 |
GAIN
Input 1 - gain | 12-22 dB |
Input 1 - noise figure | <2.2 dB |
RETURN LOSS
Return Loss | 10 Typ dB |
OPERATIONAL
DC Operating voltage | 12 VDC |
DC Current consumption | 100 mA |
MECHANICAL
Product Height | 185 mm |
Product Width | 160 mm |
Product Depth | 60 mm |
Packaging Height | 0.000 m |
Packaging Width | 0.000 m |
Packaging Depth | 0.000 m |
Packaging Volume | 0.000 m3 |
Net Weight | 0.610 kg |
Tara Weight | 0.070 kg |
Total Weight | 0.680 kg |
Remarks | Kit includes WPS 100 Power Supply, 12VDC, 100mA Max Fully screened |
Manufacture Link Triax |
