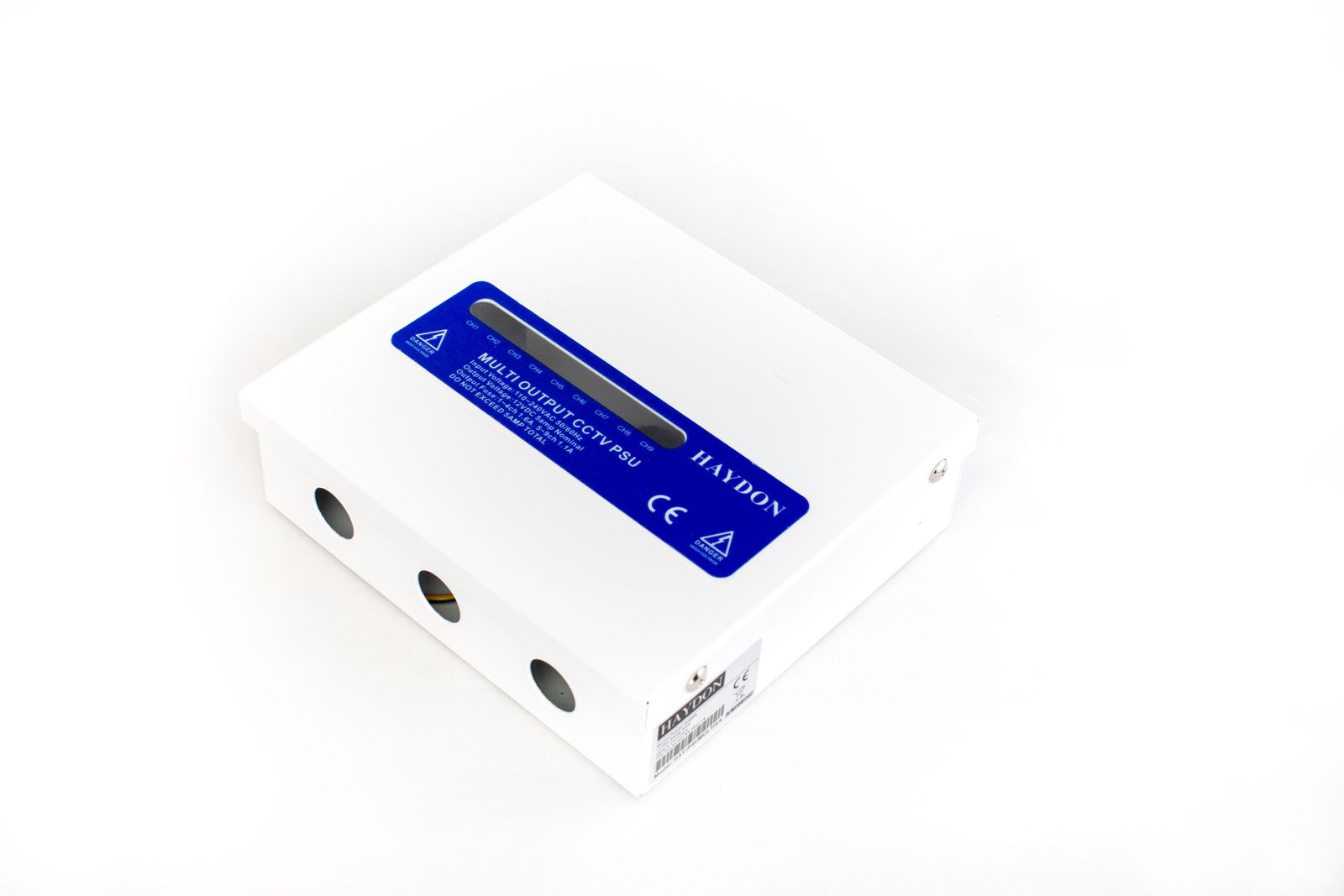

Haydon HAY-PSUMULTI5A
5A 12VDC CCTV Power Supply – 9 Output PSU
Haydon HAY-PSUMULTI is a high-capacity 5A 12V DC power supply designed to power multiple CCTV cameras or electronic devices simultaneously. With up to 9 outputs, this unit replaces multiple older models, offering a cost-effective, flexible, and user-friendly solution for professional installations.

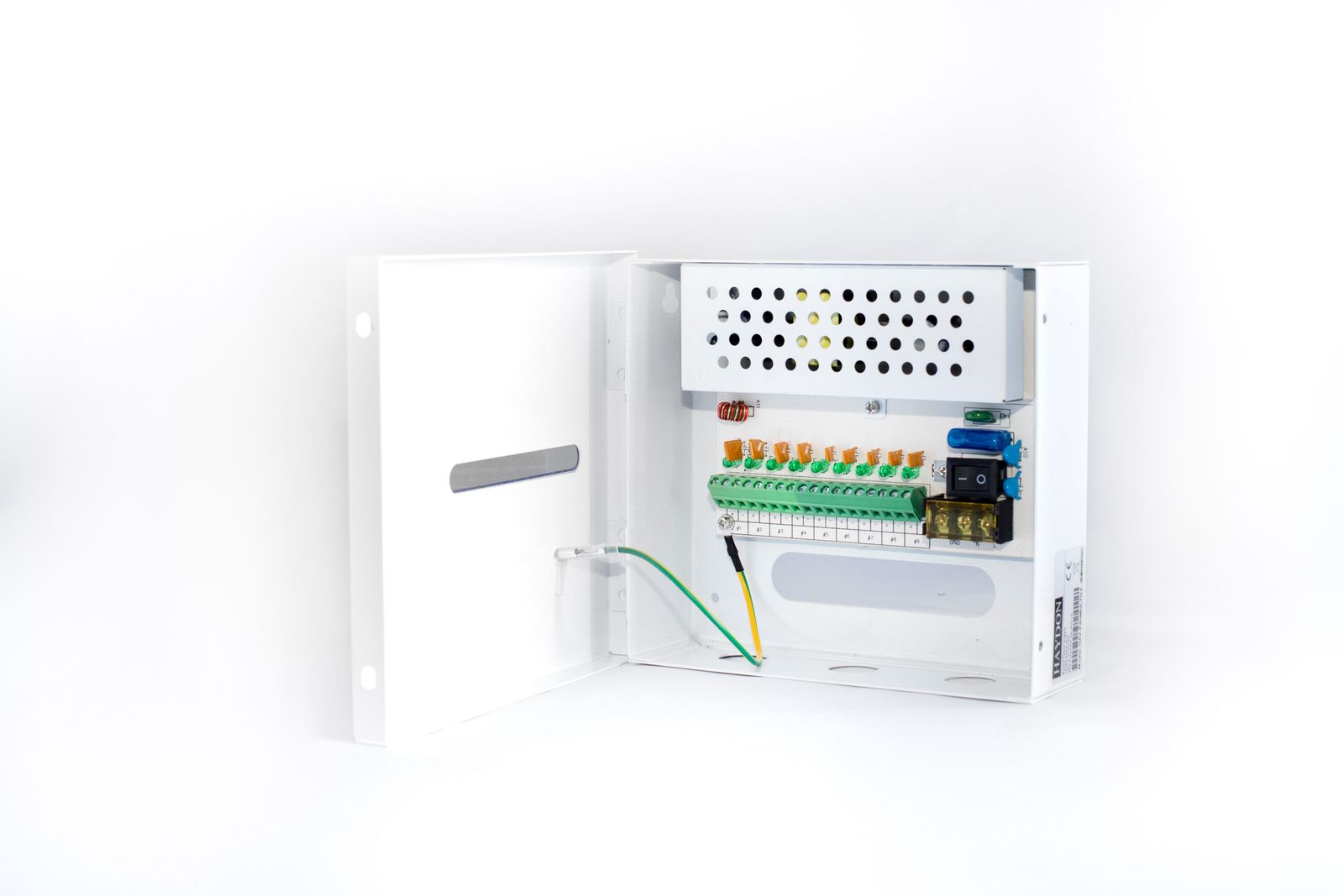

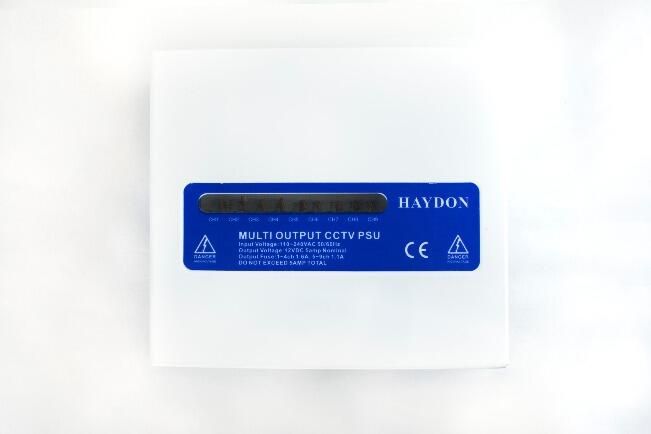

The clear front panel allows engineers to quickly check which outputs are live without opening the unit. Its unique fuse layout ensures safety, reliability, and easy maintenance for both home and commercial security systems.
Features
12V DC Output: 5A total power for multiple devices
Multiple Outputs: Up to 9 simultaneous outputs for cameras or other electronics
User-Friendly Design: Clear front panel to view live outputs
Safe & Reliable: Unique fuse layout protects each output
Cost-Effective: Replaces multiple previous PSU models
Versatile Applications: CCTV systems, security setups, industrial electronics
Quick Specs
Model: HAY-PSUMULTI
Output Voltage: 12V DC
Output Current: 5A total
Number of Outputs: Up to 9
Enclosure: Boxed with clear front panel
Use Case: CCTV cameras, surveillance systems, electronic devices
£0.00
£41.94
Share the love with your friend
Complete the form below and we'll email your friend about this product
Be one of the first to know!
We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.
To select a suitable PSU with these specifications, you will need to consider the total power consumption of all the devices you plan to connect to it. The total power consumption should not exceed the maximum output power of the PSU (in this case, 5 Amps at 12VDC).
For example, if you have six devices that each require 0.5 Amps at 12VDC, the total power consumption would be 3 Amps (6 x 0.5). In this case, a 5 Amp 12VDC PSU with 9 outputs would be suitable.
It's also important to ensure that the voltage output is stable and does not fluctuate beyond the acceptable range for your devices. In addition, you should ensure that the PSU has adequate protection mechanisms such as over-current, over-voltage, and short-circuit protection to prevent damage to your devices in case of power fluctuations or electrical faults.
