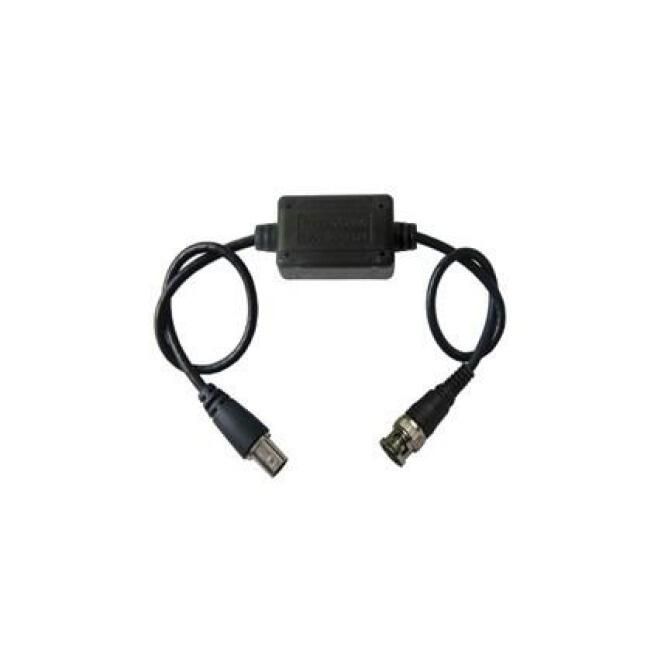

Haydon Coaxial Video Ground Loop Isolator
BNC Video Signal Protection
Solve video interference issues with the Haydon HD Coaxial Video Ground Loop Isolator. Designed for CCTV and HD analogue cameras, this high-performance isolator eliminates signal distortion, picture tearing, cross-talk, and rolling caused by ground loops or improper wiring.
With BNC male-to-female connectors and mini 20cm RG59 coaxial leads, it’s compatible with HD-TVI, HD-CVI, AHD, and CVBS cameras. Passive design with no power supply required and built-in TVS surge protection ensures safe and reliable operation.
Features
- HD Coaxial Video Ground Loop Isolator – solves interference issues
- BNC Connectors: Male to female with 20cm RG59 pigtail leads
- Passive Operation: No external power required
- Protects Video Quality: Eliminates tearing, cross-talk, and rolling
- Surge Protection: Built-in TVS (Transient Voltage Suppressors)
- High Isolation: Ground loop circuit isolation ＞90dB @ >50Hz
- Minimal Signal Loss: Insert loss ≤0.5 dB
- Compact Design: 50 x 28 x 28mm (including BNC connectors)
Quick Specs
- Compatible With: HD-TVI, HD-CVI, AHD & CVBS analogue cameras
- Connector Type: BNC Male → BNC Female
- Cable Lead: Mini 20cm RG59 pigtail
- Operation: Passive, no power supply
- Dimensions: 50 x 28 x 28 mm
SKU: HAY-HDGLI
£0.00
£16.74
Share the love with your friend
Complete the form below and we'll email your friend about this product
Be one of the first to know!
We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.
The ground loop isolator can only be used on the DVR side, and if used on the HD camera side then there will be no video.
Once the signal passes the isolator, it will become a clear video picture, without any ghost. It is widely used in various security monitoring system. No power, easy and convenient installation, and high performance.
The video ground loop isolator should be installed where video cable runs are known to have ground loops. It must be installed
on the video cable at the DVR end that has come directly from the camera, but before the cable has been connected to the DVR.
If several video cameras come from the same area, fix a video ground loop isolator in every cable, or a grounded loop will remain.
Data Sheet
| Manufacture Haydon |
| Delivery Details Our Delivery Options Track & Sign, Our cut off time for delivery next business day is 3pm **Free collection from our Trade Counter in Chester** Shipping information |
| 14 Days return policy |
| Contact Us 01244 682300 info@chesterdigitalsupplies.co.uk |
| Technical support |
