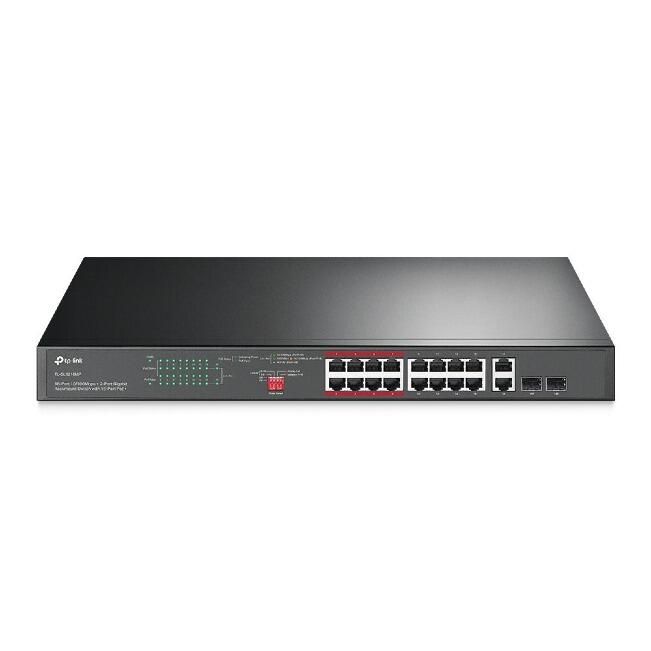

TP-Link TL-SL1218MP

16-Port PoE+ Rackmount Switch

TP-Link TL-SL1218MP is a professional 16-port PoE+ rackmount switch designed specifically for IP surveillance and CCTV networking. With 16 PoE+ Fast Ethernet ports, 2 Gigabit RJ45 uplink ports, and 2 combo Gigabit SFP slots, this switch provides reliable connectivity and flexible network expansion.

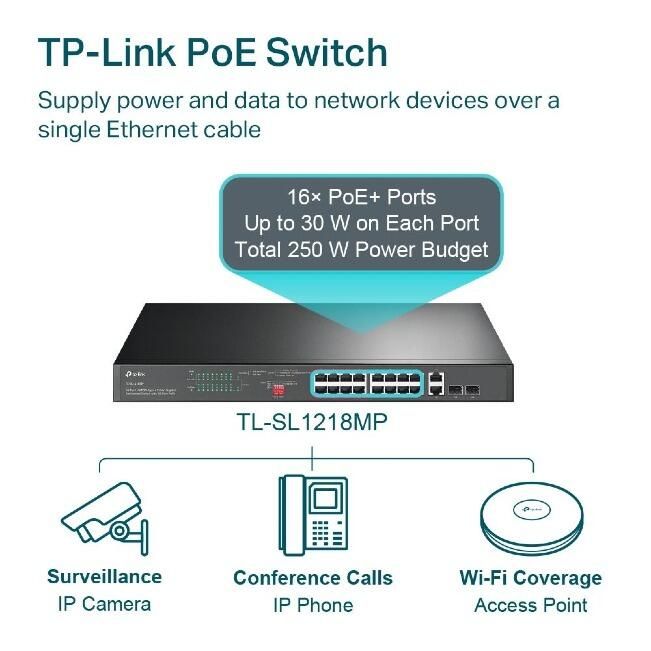

Featuring a 250W PoE power budget and up to 30W per PoE port, the TL-SL1218MP easily powers devices such as IP cameras, wireless access points, and VoIP phones without the need for additional power supplies.

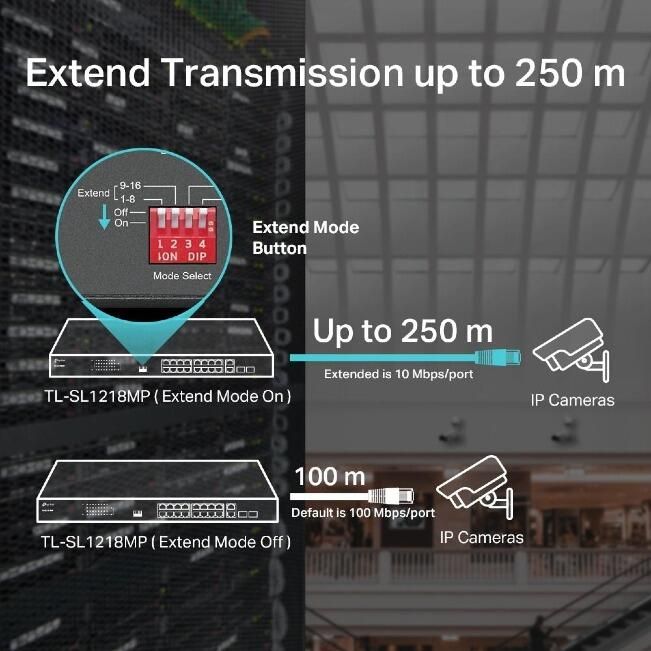

The switch also includes Extended Mode, enabling data and power transmission up to 250 metres, making it ideal for large surveillance installations where cameras are located far from the control room.

Features

16 × 10/100 Mbps PoE+ RJ45 Ports
2 × Gigabit RJ45 Uplink Ports
2 × Combo Gigabit SFP Slots for fibre connectivity
High 250W PoE Power Budget
Up to 30W per PoE+ port
Plug and Play Installation – No Configuration Required

Trade log in

£0.00
£141.60


TP-Link TL-SL1218MP 16-Port PoE+ Rackmount Switch | 250W Surveillance Switch

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

TP-Link TL-SL1218MP A network switch manufactured by TP-Link, a leading provider of networking devices.

Port Configuration: The TL-SL1218MP is an 18-port switch, including 16 Fast Ethernet PoE+ ports and 2 Gigabit Combo ports.

Power over Ethernet (PoE+): The switch supports PoE+ technology, which allows power and data to be transmitted over Ethernet cables. With PoE+, you can power devices such as IP cameras, wireless access points, and VoIP phones directly from the switch, eliminating the need for separate power adapters.

PoE Budget: The TL-SL1218MP has a PoE budget of up to 192 watts, meaning it can provide sufficient power to multiple PoE devices simultaneously.

Gigabit Combo Ports: The switch features two Gigabit Combo ports, which can be used to connect additional devices or uplink to other switches or network infrastructure.

VLAN Support: The TL-SL1218MP supports Virtual Local Area Networks (VLANs), allowing you to logically separate network traffic and improve network efficiency and security.

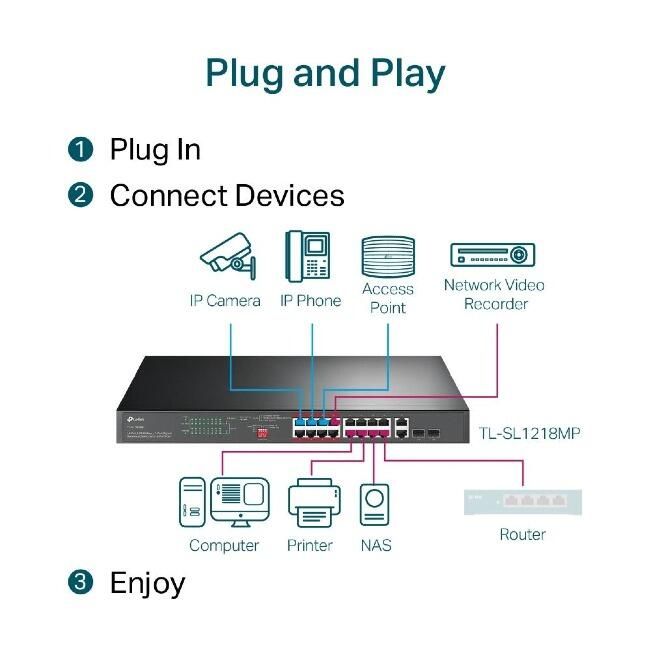

Plug-and-Play: The switch is designed for easy installation and configuration, offering a plug-and-play experience without the need for complex setup procedures.

Quality of Service (QoS): The TL-SL1218MP supports QoS features, enabling you to prioritize certain types of network traffic for better performance and bandwidth allocation.

Energy Efficiency: The switch incorporates energy-saving technologies to optimize power consumption and reduce operating costs.

Web Management Interface: The TL-SL1218MP typically includes a web-based management interface that allows you to configure and monitor the switch settings and connected devices through a web browser.

HARDWARE FEATURES

Interface

  • 16 PoE+ 10/100 Mbps RJ45 Ports
  •  2× 10/100/1000 Mbps RJ45 Ports
  •  2× Combo Gigabit SFP Slots

Network Media

  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-X MMF, SMF

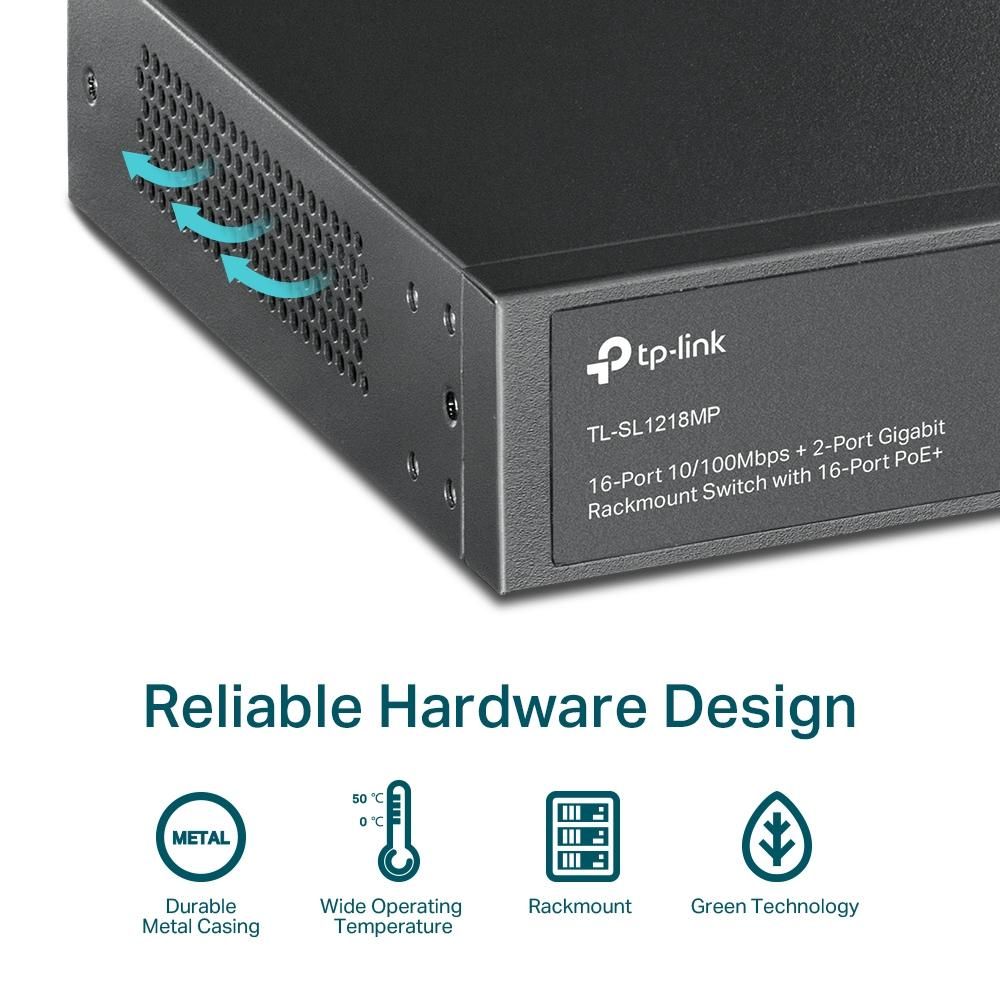

  • Fan Quantity         2 Fans
  • Physical Security Lock         Yes

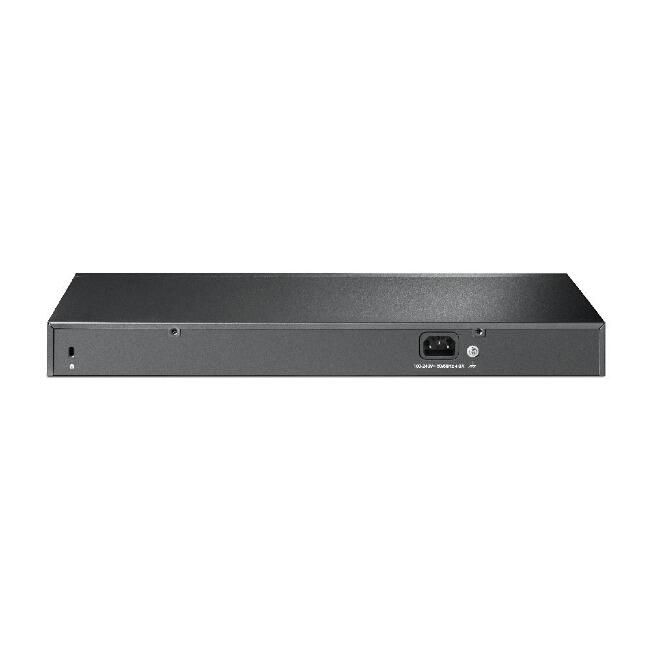

  • Power Supply       100–240V AC, 50/60 Hz

PoE+ Ports(RJ45)

  • Standard: 802.3at/802.3af compliant
  • PoE Ports: Ports 1–16
  • PoE Power Budget: 250 W

Dimensions

  • ( W x D x H )    17.3 × 7.1 × 1.7 in
  • (440 × 180 × 44 mm)
  • Max Power Consumption
  • • 15.0 W (no PD connected)
  • • 285.8 W (with 250 W PD connected)

Max Heat Dissipation

  • 51.1 BTU/h (no PD connected)
  • 974.6 BTU/h (with 250 W PD connected)
  • PERFORMANCE
  • Switching Capacity               7.2 Gbps
  • Packet Forwarding Rate     5.36 Mpps
  • MAC Address Table             8K
  • Jumbo Frame        10 KB

SOFTWARE FEATURES

Advanced Features

  • Compatible With IEEE 802.3at/af Compliant PDs
  • Extend Mode (Up to 250m PoE power supply and data transmission)
  • Priority Mode
  • Isolation Mode
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE802.3x Flow Control
  • Transmission Method         Store-And-Forward

OTHERS

  • Certification          CE, FCC, RoHS
  • Package Contents
  • TL-SL1218MP
  • Power Cable
  • Installation Guide
  • Two mounting brackets and the fittings

Environment

  • Operating Temperature: 0–50 °C (32–122 °F)
  • Storage Temperature: -40–70 °C (-40–158 °F)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing

PDFSpec Sheet
