Triax Standalone Multiswitch

TMS/CKR Quad+Quattro LNB support multiswitch for distributing satellite and terrestrial signals in small and medium sized systems.

Excellent performance

  • Low insertion loss
  • High isolation
  • Low power consumption
  • RED compliant
  • ESD Protection

Flexibility

  • All the functionality you need in a simplified, streamlined range:
  • Easier to select the right product
  • Fewer products to stock
  • Active/Passive Terrestrial Switch

Convenience

  • Designed with installer convenience in mind:
  • Equidistant F-connectors on all multiswitches
  • Colour-coded input labels
  • LED power indicator
  • Flexible power injection
  • Earth bars
£0.00
£84.00

QTY

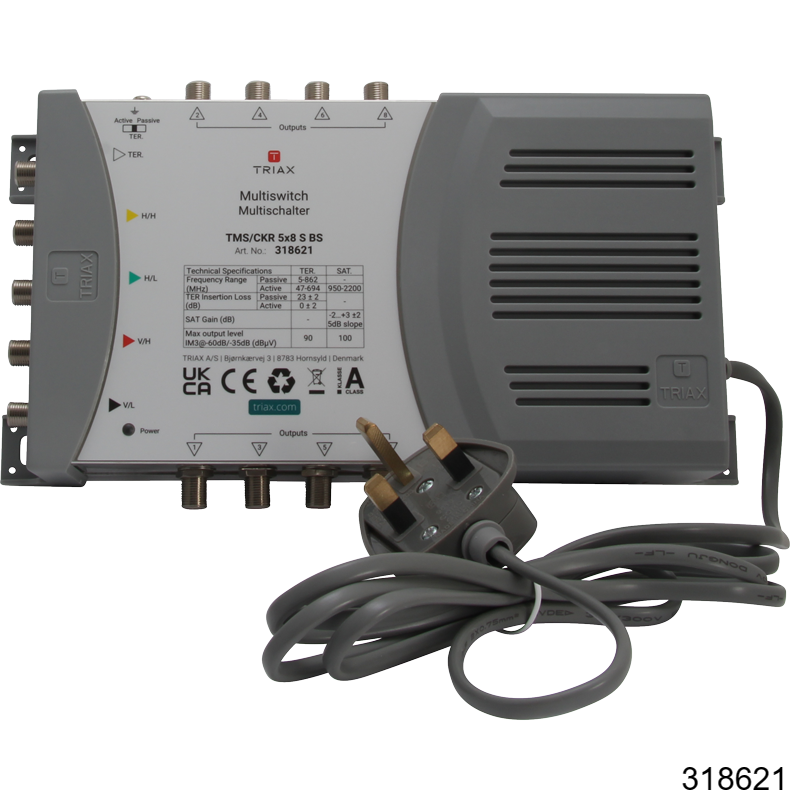

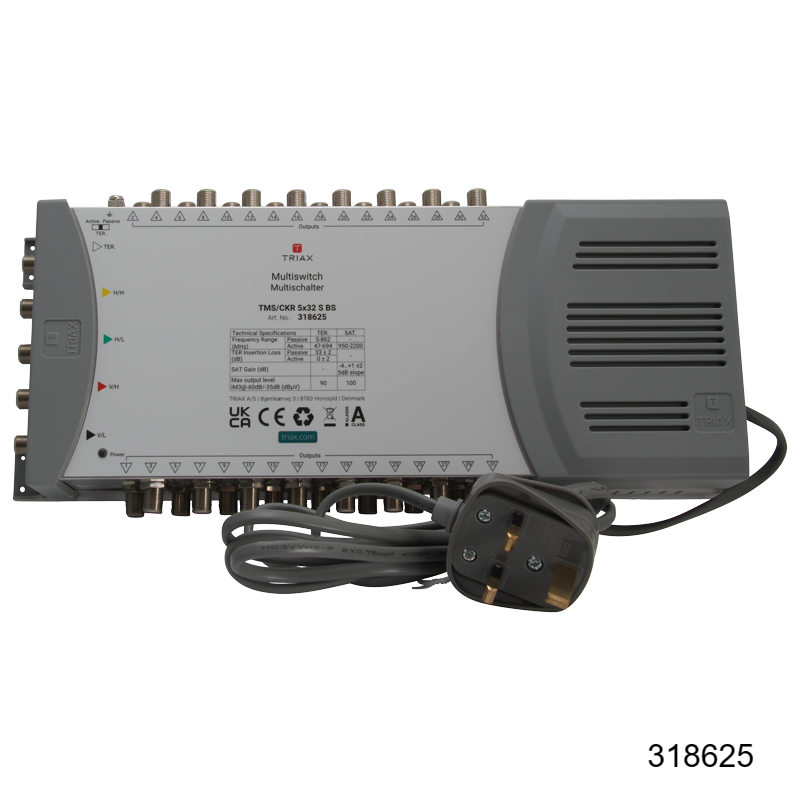

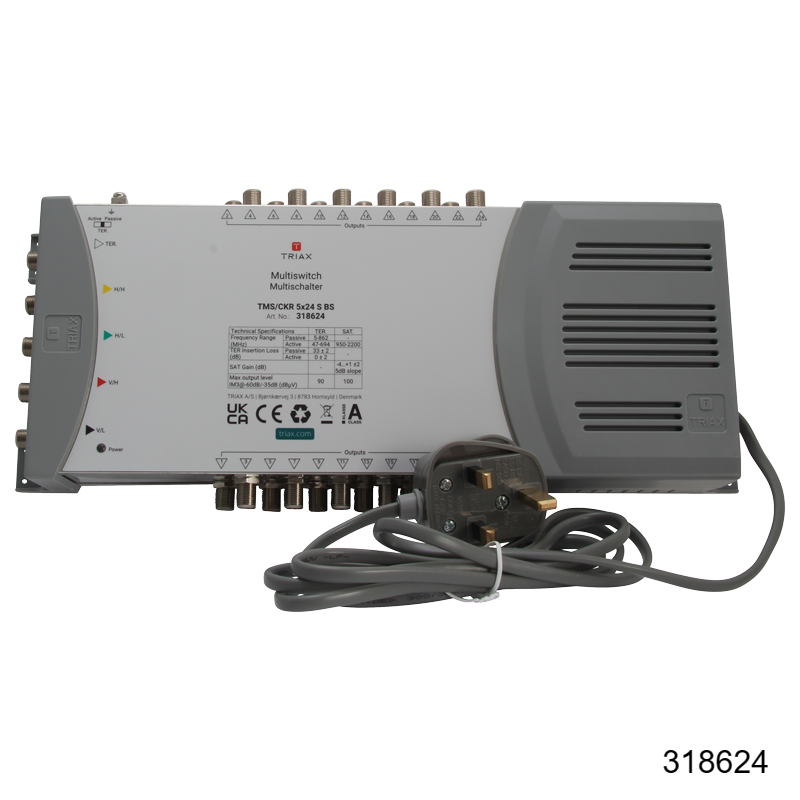

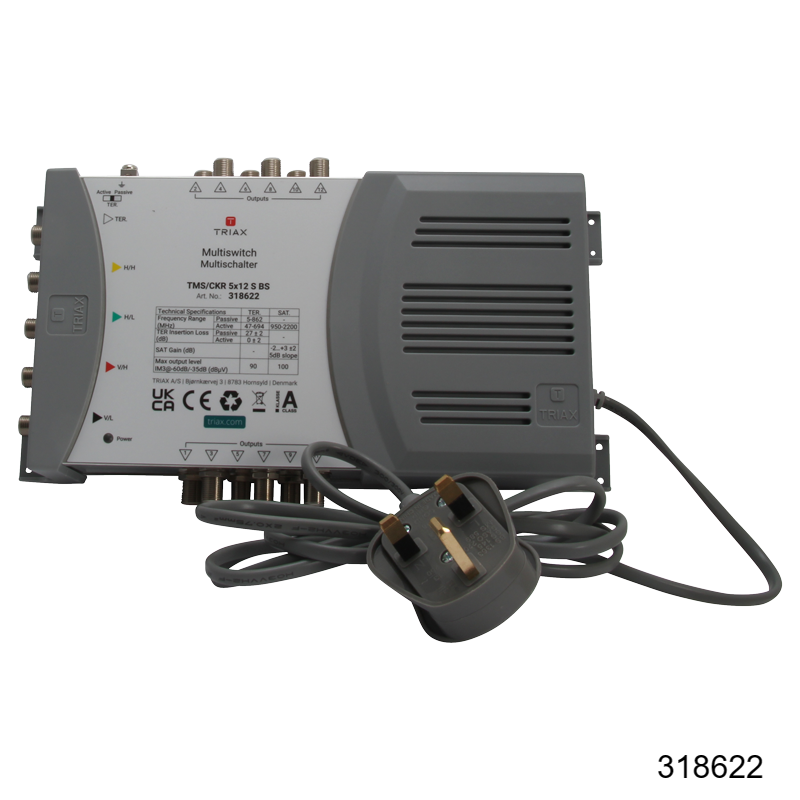

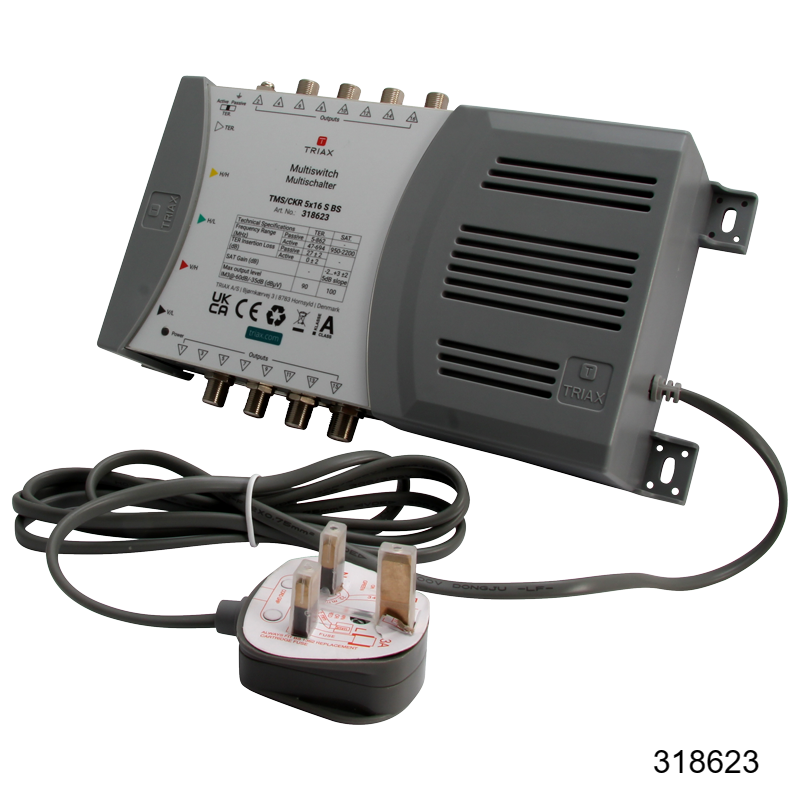

Triax Standalone multiswitch 5x8 || 318621

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Triax multiswitch'S that are designed to distribute satellite or terrestrial signals from a single input to up to eight separate receivers or TVs. It is commonly used in larger residential or commercial installations, such as apartment buildings, hotels, or offices, where multiple receivers or TVs need to be connected to a single satellite or terrestrial antenna.

The TMS/CKR S features five inputs and eight outputs, allowing you to connect up to five different satellite or terrestrial signals to the switch and distribute them to up to eight separate receivers or TVs. The switch is compatible with a wide range of satellite and terrestrial signals, and it supports both analogue and digital signals, including HD and 4K.

The Triax TMS/CKR 5x8 S is designed to be easy to install and use. It features F-type connectors for quick and easy connections, and it has a compact design that makes it easy to mount in any location. The switch also features a high-quality housing that is weather-resistant, making it suitable for use in both indoor and outdoor settings.

Triax Standalone Multiswitch.jpg

ELECTRICAL

  • Impedance         75 Ω

CONNECTORS

  • Connector Type F-female
  • Number of inputs             5
  • Subscriber outputs         Upto 32
  • Power connector             UK main plug
  • Colour coding @IF/TER inputs        VL=Black, VH=Red, HL=Green, HH=Yellow, White=TER

CHARACTERISTICS

  • LNB type              Quad/Quattro
  • Max. input level - SAT (IMD3 - 35dB)        99 dBµV
  • Max. input level - TER (IMD3 - 60dB)        90 dBµV
  • Max. output level SAT @ -35 dB IMD3     100 dBµV
  • Max. output level TER @ -60dB IMD3      90 dBµV
  • LNB current max.             1000 mA
  • Switch commands           DiSEqC 1.0/2.0, 13/18V, 0/22kHz

FREQUENCY RANGE

  • Frequency range TER      Active: 47…694 / Passive: 5...862 MHz
  • Frequency range SAT      950…2200 MHz

GAIN

  • Gain - SAT (with 5 dB slope)         -4…+1 ± 2 dB
  • Gain - TER            0 ± 2 dB

LOSS

  • Tap loss TER        33 ± 2 dB

ISOLATION

  • Isolation SAT to TER         30 dB
  • Isolation cross polarisation H/V  30 dB
  • Isolation out-out SAT      30 dB
  • Isolation out-out TER      25 dB

RETURN LOSS

  • Return loss SAT inputs   >10 dB
  • Return loss TER inputs   >10 dB
  • Return loss TAP outputs >10 dB

OPERATIONAL

  • AC Supply voltage            180…264 VAC
  • ESD protection  4KV inputs & sub outputs
  • Power Consumption (typ.)           3.5W max. TER active 2W max. TER passive W
  • Max. current pass per F-connector           2000 mA
  • Max. current to each output (supplied by set top box)     <50 mA
  • Control LEDs       Green LED (Power)
  • Temperature - operating              -20…+55 °C

MECHANICAL

  • Main material    Steel housing
  • Dimensions product (H x D x W) 140 x 65 330 mm

Packing QTY        1


Spec sheets

PDF5x8-318621
PDF5x12-318622
PDF5x16-318623
PDF5x24-318624
PDF5x32-318625

PDFData sheet
