Triax TMSA 5 Line Amp EB 318645

TMSA 5 Line Amp

Triax TMSA 5 Line Amp EB 318645

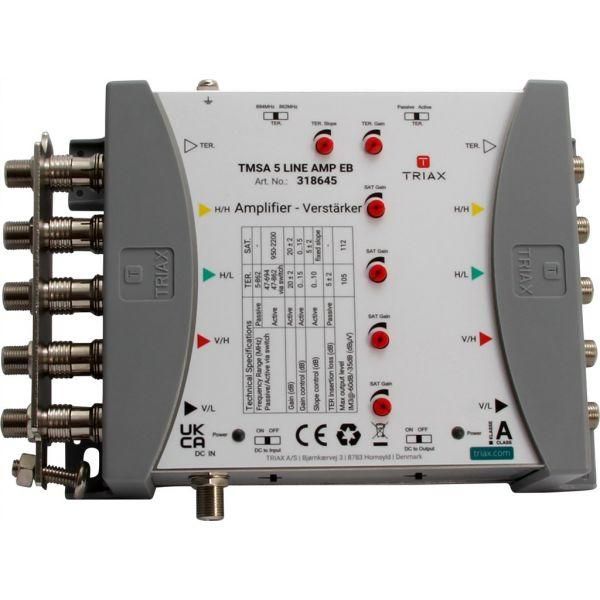

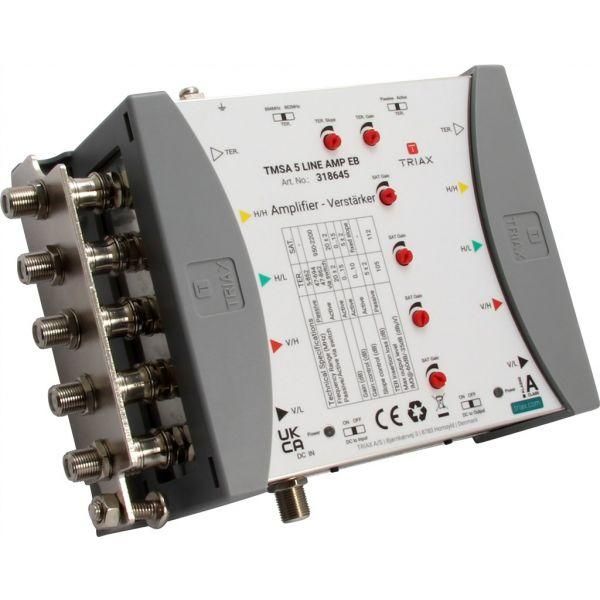

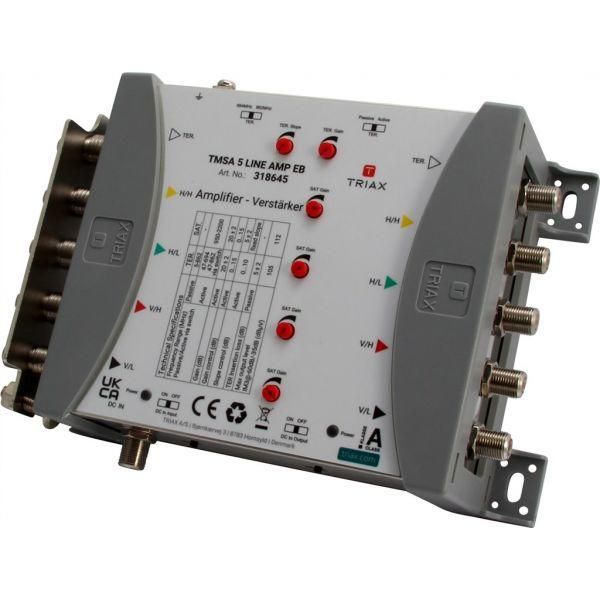

The TMSA 5 Line Amp EB, with 5 inputs and 20dB gain, compensates for the cable loss in your designed multiswitch systems.


Equipped with earth bars and powered directly via the DC input port, or line powered via all Sat lines.

  • ADDITIONAL INFORMATION

    PDFSpecs

  • SPECIFICATIONS

    ORDER INFORMATION

    EAN Number      5702663186453

    ELECTRICAL

    Impedance         75 Ω

    CONNECTORS

    Connector Type F-female

    Connector DC    F-female

    Number of trunk inputs 5

    Number of trunk outputs             5

    Colorcoding @IF/TER inputs        VL=Black, VH=Red, HL=Green, HH=Yellow, White=TER

    CHARACTERISTICS

    Input polarity gain control TER    0…15 dB

    Input polarity gain control SAT   0…15 dB

    Max. output level SAT @ -35 dB IMD3     112 dBµV

    Max. output level TER @ -60dB IMD3      105 dBµV

    LNB current max.             3000 mA

    FREQUENCY RANGE

    Frequency range TER      Active: 47…694 - 47...862 / Passive: 5...862 MHz

    Frequency range SAT      950…2200 MHz

    GAIN

    Gain - SAT           20 ± 2 dB

    Gain - TER            20 ± 2 dB

    LOSS

    Insertion loss - TER           5 dB

    ISOLATION

    Isolation SAT to TER         > 30 dB

    Isolation cross polarisation H/V  > 30 dB

    RETURN LOSS

    Return loss SAT > 10 dB

    OPERATIONAL

    LINE power DC voltage (max.)    15…20 VDC

    LINE power current (max.)           2000 mA

    PSU output DC voltage   18 VDC

    ESD protection  4KV inputs & sub outputs

    DC Current consumption              230mA max. @18V DC mA

    PSU/adapter Art number              318165, 318166, 318167

    Control LEDs       Green LED (Power)

    Temperature - operating              -20…+50 °C

    MECHANICAL

    Dimensions product (H x D x W) 140 x 65 x 175 mm

    Packing QTY        1

    Product Length 140 mm

    Product Width   175 mm

    Product Depth   65 mm

    Packaging Height              0.000 m

    Packaging Width               0.000 m

    Packaging Depth              0.000 m

    Packaging Volume           0.000 m3

    Net Weight         0.000 kg

    Tara Weight       0.000 kg

    Total Weight      0.000 kg

    Remarks              Earth Bars
