Whyte Technologies UK
Whyte Dscr Multiswitches
5-Wire dSCR Multiswitch
The Whyte WSCR 5-Wire dSCR Multiswitch range is designed for seamless integration with conventional IRS systems, delivering high output performance, low power consumption, and exceptional installation flexibility.
Part of the advanced Series D range, these multiswitches combine passive trunking, high-gain terrestrial amplification, and efficient fanless cooling to provide one of the most versatile and installer-friendly dSCR solutions available.
Available in 4-way, 6-way, 8-way, 12-way and 16-way output versions.
Features
High Output Power
- 89dBµV dSCR
- 85dBµV Legacy (with AGC)
Extremely Low Power Consumption
- Min: 0.1A
- Max: 0.15A
- 5-Wire Configuration – Designed for wideband and IRS integration
- Low-Loss Passive Trunks – Efficient signal distribution
- High Gain Terrestrial Path
- TERR Gain Control & Pro-Tap Attenuation Switch
- Switchable 12V DC to TERR Input
- Trunk EQ Built-In
- Comes with Earth Bars Fitted
- Compact Form Factor
- Fanless Cooling Technology – Highly efficient and silent
- Simple DC Powering Options
£0.00
From £171.60
Share the love with your friend
Complete the form below and we'll email your friend about this product
Be one of the first to know!
We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.
Whyte Dscr multiswitch is a device commonly used in satellite distribution systems, especially in multi-dwelling units like apartment buildings or condominiums, to distribute satellite signals from a single or multiple satellite dishes to multiple satellite receivers or set-top boxes.
Digital Satellite Channel Stacking (dSCR) is a technology used in satellite distribution systems to deliver multiple satellite signals over a single cable, reducing the need for multiple cables running from the satellite dish to each receiver. dSCR technology allows for more flexible and efficient distribution of satellite signals, and it can be cascaded or stacked to accommodate a larger number of receivers.
Cascading dSCR multiswitches typically means connecting multiple dSCR multiswitches together in a series to expand the number of available outputs for satellite receivers. This is often done to serve a large number of users in a shared satellite distribution system.
The new 2nd Generation Cascadable dSCR Multiswitch range from Whyte offers substantial enhancements such as higher power output, even lower power consumption, a small form factor and Trunk EQ. The range now boasts 4, 6, 8, 12 and 16-way models. This alongside low-loss trunks and high TERR gain make the Whyte Series D range the most versatile and easy to install dSCR Multiswitch available.
Clever cast aluminium housing design means the dSCR Multiswitch can be orientated horizontally without the risk of overheating.
Each subscriber output provides Sky Q, Legacy, TV and Radio services. Satellite subscriber signal levels in both Legacy and dSCR mode are automatically set to 89dBμV via AGC.
Terrestrial signal levels are controlled via a manual Gain Control and a selectable Pro-Tap™ which permits a wide range of TERR input signal levels from 50 to 108dBμV. The reception of 2 satellites can be facilitated with 2 Wideband LNB’s when WB mode is selected. The unit can be powered directly via the DC Input Port or be remotely powered via the trunk lines.

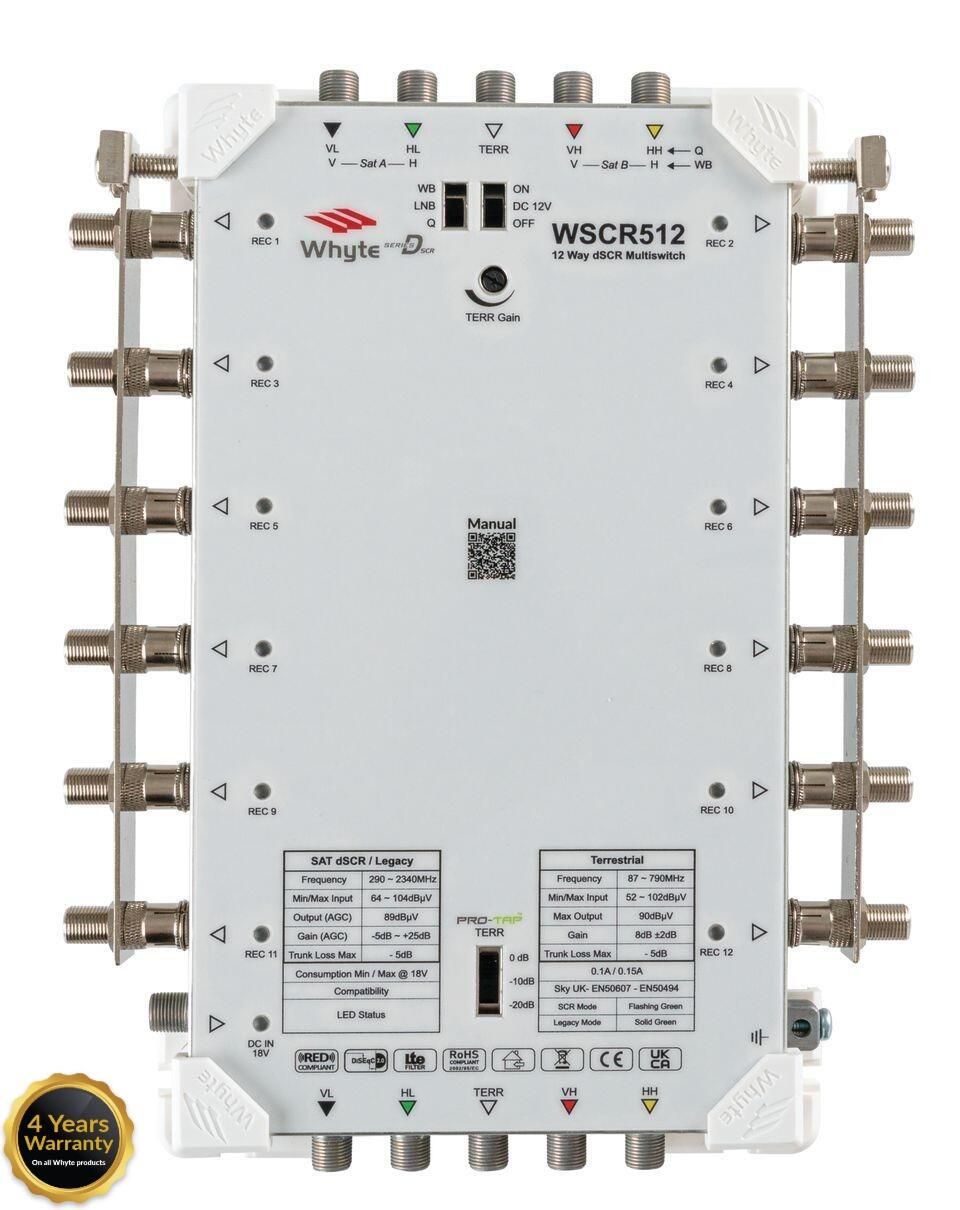

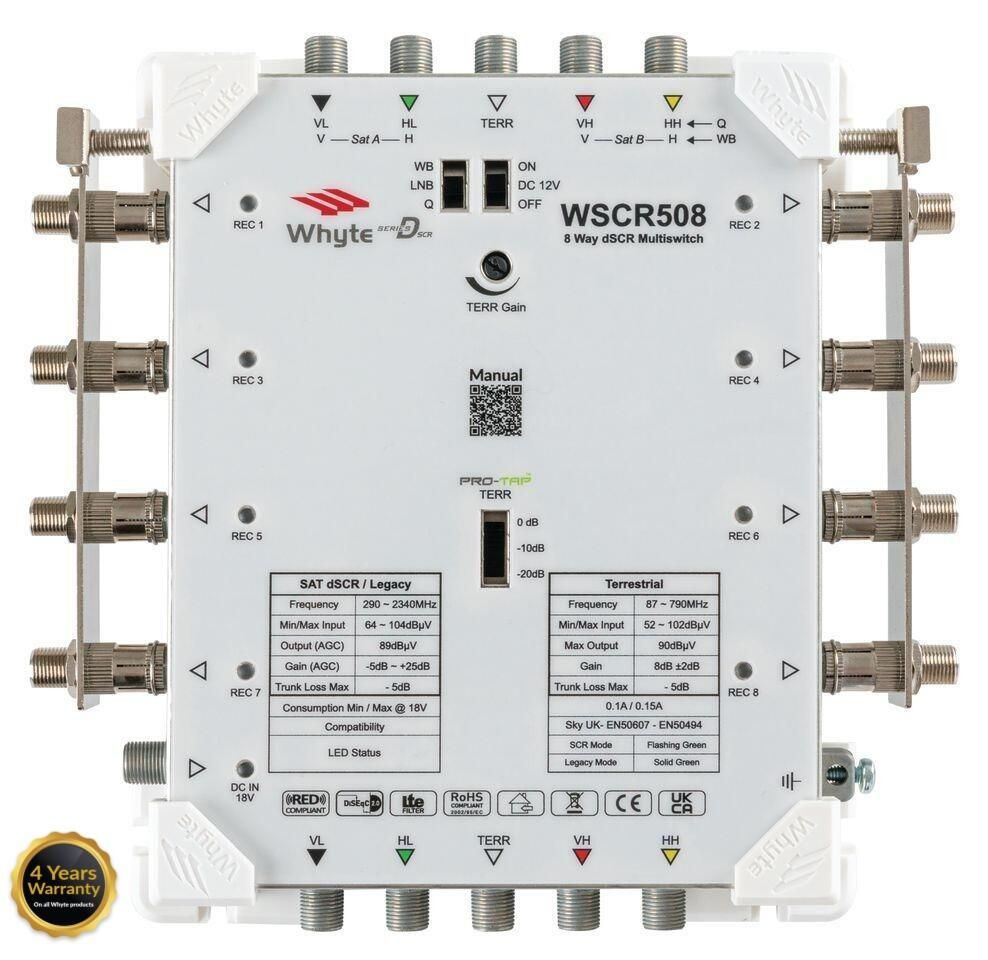

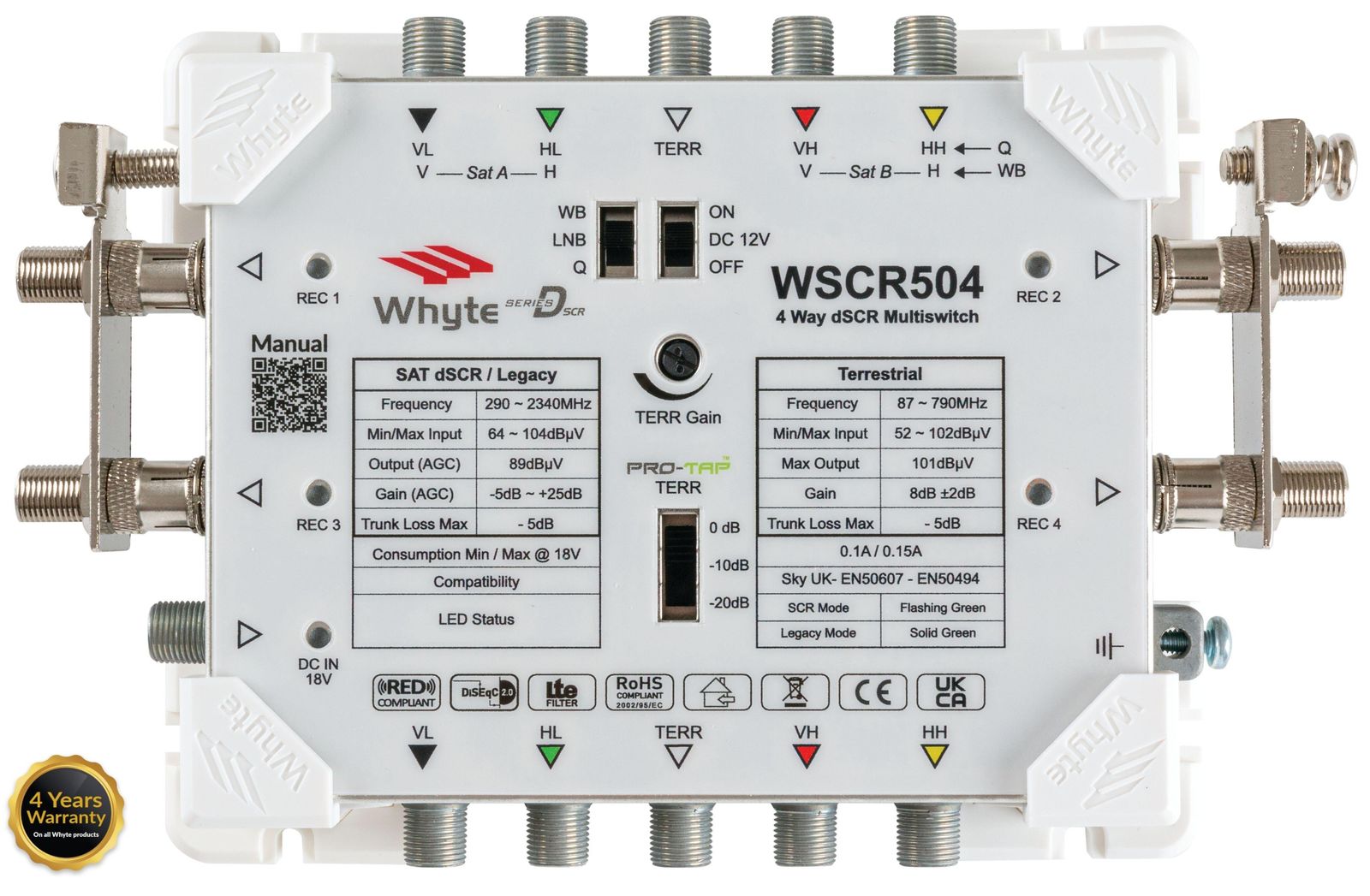

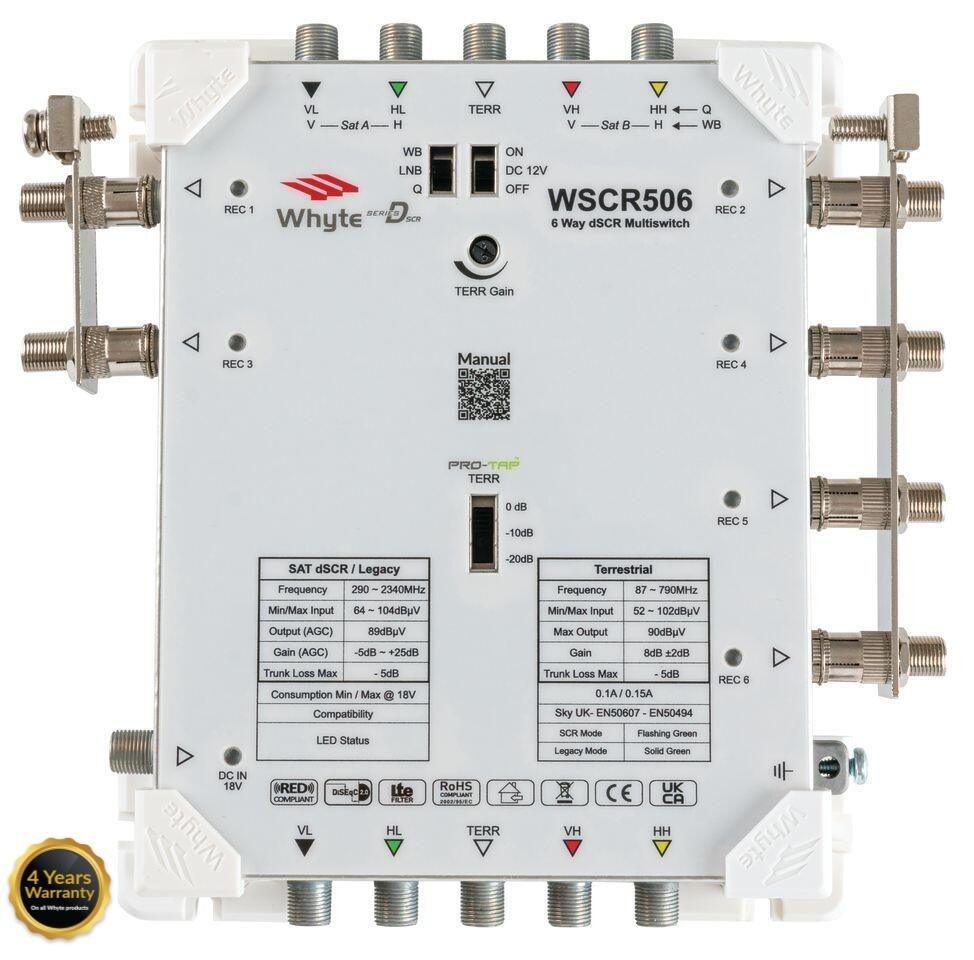

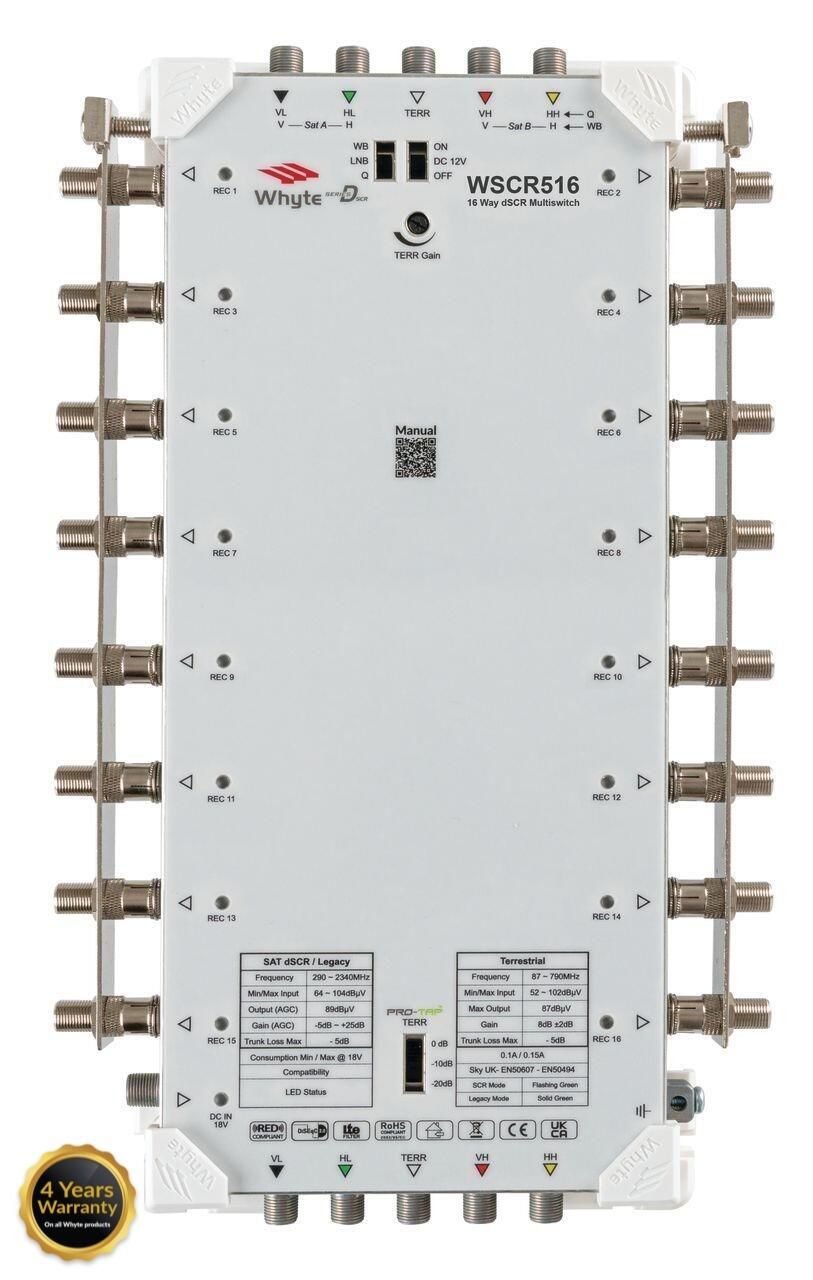

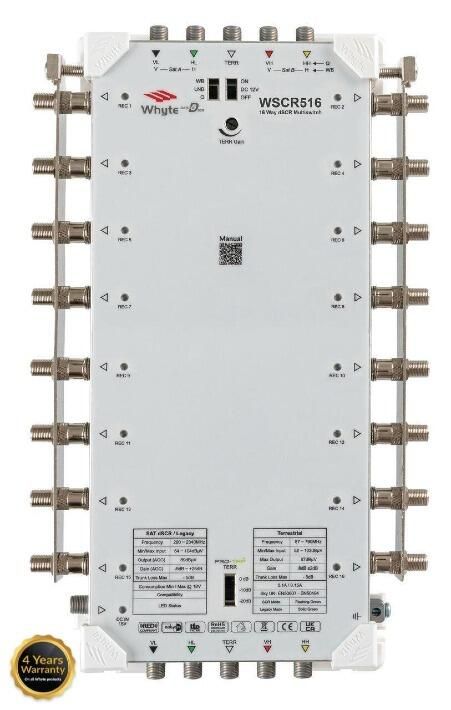

 General | WSCR504 | WSCR506 | WSCR508 | WSCR512 | WSCR516 |
| Manufacture Link Whyte Technologies |
| Delivery Details Our Delivery Options Track & Sign, Our cut off time for delivery next business day is 3pm **Free collection from our Trade Counter in Chester** Shipping information |
| 14 Days return policy |
| Contact Us 01244 682300 info@chesterdigitalsupplies.co.uk |
| Technical support |
