Labgear HD2-M44K - HD2-M88K Matrix

Name: Labgear HD2-M44K - HD2-M88K Matrix
Brand: Labgear Products Uk.
SKU: HD2-M44K
Price: 570.66 GBP
Availability: InStock

4K HDMI Matrix – Multi-Output HD Distribution with RJ45 Over CAT6/7

Labgear HD2-M44K and HD2-M88K are professional HDMI matrix switchers designed to distribute 4K2K@60Hz 4:4:4 signals from multiple sources to multiple displays. Available with four (HD2-M44K) or eight (HD2-M88K) HDMI outputs, each HDMI output is mirrored with an RJ45 output, enabling high-quality 4K video transmission up to 70m over individual CAT6/7 cables to included receivers.

Ideal for home cinemas, corporate AV systems, broadcast setups, and multi-display installations, these matrices combine advanced video, audio, and control features in one compact unit.

Key Features

Video & Audio Support

4K2K@60Hz 4:4:4 HDMI output on each channel
HD downscaling to 1080p per output
Supports HDR, HDR10, HDR10+, Dolby Vision, HLG high-definition formats
Compatible with HD digital audio formats, including LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio

Signal Distribution & Control

RJ45 mirrored outputs allow 4K HD signals to travel up to 70m over CAT6/7 cables
One-way IR matrix function enables control of source devices from display locations
Advanced EDID management and CEC control for seamless device communication
Multiple control options: front panel buttons, IR remote, RS-232, LAN, or Web GUI

Power & Convenience

POC (Power over Cable) allows receivers to be powered directly from the matrix unit
Flexible, professional-grade solution for complex multi-display setups
Delivers 4K HDR video with high-quality audio over long distances
Simplifies installation with mirrored RJ45 outputs and POC support
Full multi-control options including IR, RS-232, LAN, and web interface
Ideal for AV integrators, corporate AV, home cinema, and broadcast systems

£0.00

From £570.66

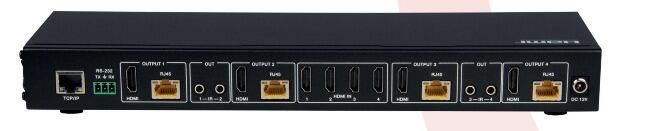

Labgear HDMI Matrix Kit is a device that allows you to connect up to 4 or 8 HDMI input sources (such as DVRs Nvrs, freesat, Blu-ray players, PS45, xbox sky q, etc.) to 4 or 8 HDMI output displays (such as TVs, projectors, etc.). Additionally, it comes with an extra 4 HDMI outputs that can be used as a loop out to additional displays or a local monitor for monitoring purposes.

With this device, you can switch between any of the connected HDMI input sources and output them to any of the connected displays. This is useful for applications such as home theatre systems, conference rooms, classrooms, and other setups that require multiple HDMI inputs and outputs.

The "4x4+4" or 8x8 designation refers to the number of inputs and outputs on the device. Specifically, it means that the device has 4 or 8 HDMI inputs, 4 or 8 HDMI outputs, and an additional 4 HDMI outputs that can be used for monitoring or loop-out purposes.

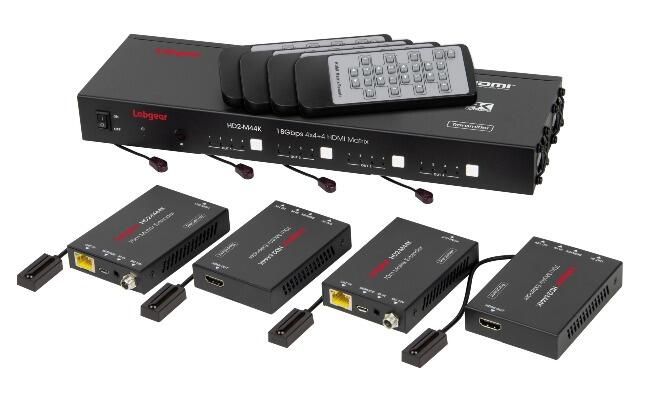

HD2-M44K 4x4 Kit Contains:

1 x Matrix Unit
1 x Matrix Remote Control
1 x 12V 2.5a Power Supply
1 x 1.5m RS-232 Serial Cable
1 x 3 pin Phoenix Connector
4 x 1.5m IR Emitter Cable
4 x 1.5 IR Receiver Cable
10 x Mounts for Matrix & Receiver
1 x User Manual

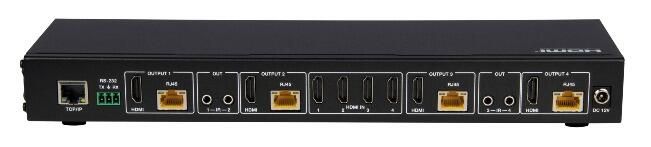

HD2-M88K 8x8 Kit Contains:

1 x 18Gbps 8 x 8 Matrix Unit
8 x Remote Control
1 x 12V 5A Power Supply
1 x 1.5m RS-232 Serial Cable
1 x 3-pin Phoenix Connector
8 x 1.5m IR Emitter Cable
9 x 1.5m IR Receiver Cable
18 x Mounts for Matrix & Receivers
1 x User Guide

Labgear 18Gbps HDMI Matrix Kits are devices that allow you to switch between multiple HDMI sources and send the signal to multiple displays. These matrix kits are designed to support the latest HDMI 2.0a standard with a bandwidth of 18Gbps, which enables them to transmit 4K Ultra HD video at 60 frames per second and support High Dynamic Range (HDR) content.

The Labgear 18Gbps HDMI Matrix Kits are available in different configurations, depending on the number of inputs and outputs required. For example, there are 4x4, 8x8, and 16x16 matrix kits, which allow you to switch between up to four, eight, or sixteen HDMI sources, respectively, and send the signal to up to four, eight, or sixteen displays.

Labgear matrix kits are ideal for use in commercial and residential applications where multiple sources need to be switched between multiple displays. They can be used in conference rooms, classrooms, home theatres, sports bars, and other similar environments.

One of the key features of these matrix kits is their ability to support advanced features such as 3D video, Deep Colour, and Dolby TrueHD and DTS-HD Master Audio. They also come with a remote control for easy operation and can be controlled using RS232 or IP commands.

Labgear 18Gbps HDMI Matrix Kits are high-quality devices that provide reliable and versatile HDMI switching and distribution solutions for a range of applications.

Labgear Matrix 4x4 Spec Sheet

Labgear Matrix 8x8 Spec Sheet
