Lindy 60m USB 1.1 Cat.6 Extender

Name: Lindy 60m USB 1.1 Cat.6 Extender
Brand: Lindy Electronics
SKU: 43365
Price: 23.844 GBP
Availability: InStock

Extend USB Over Network Cable

Extend your USB device up to 60 metres with the Lindy USB 1.1 Cat.6 Extender. This cost-effective solution uses standard Cat5e or Cat6 network cable (not included) to connect the transmitter and receiver units, allowing reliable long-distance USB connectivity.

Ideal for CCTV systems, printers, keyboards, mice, and other USB 1.1 devices, this extender supports data transfer speeds up to 12Mbps. With plug-and-play installation and USB bus power, setup is quick and hassle-free.

Features

Extends USB up to 60m over Cat5e/Cat6 cable
USB 1.1 compliant – supports speeds up to 12Mbps
Plug & Play – no drivers required
OS Independent – compatible with Windows, macOS, Linux
USB Bus Powered – no external power supply required

Quick Specs

Maximum Distance: 60 metres
Cable Type Required: Cat5e / Cat6 (not included)
Data Transfer Rate: Up to 12Mbps
Power Source: USB bus powered
Warranty: 2 years

SKU :- 43365

Trade log in

£0.00

£23.84

Ideal for situations where you need to connect USB devices over a long distance, such as in conference rooms, classrooms, or industrial settings.

Cost-effective: Uses Cat.6 cabling instead of specialised USB cables.

Easy installation: Simple plug-and-play setup with no need for drivers or software.

Wide compatibility: Works with most USB 1.1 devices, including mice, keyboards, printers, and flash drives.

How it works:

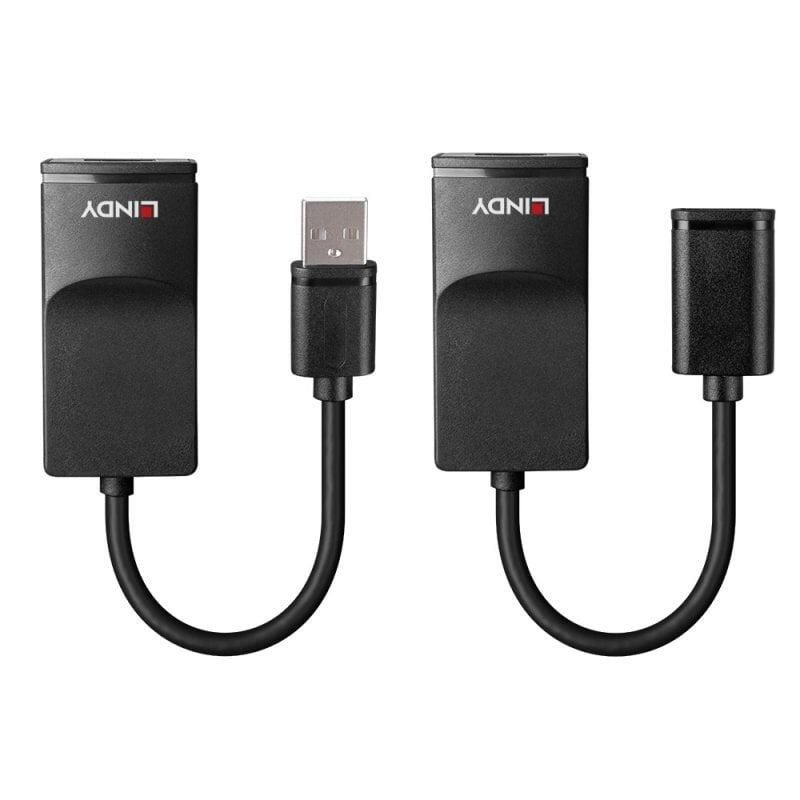

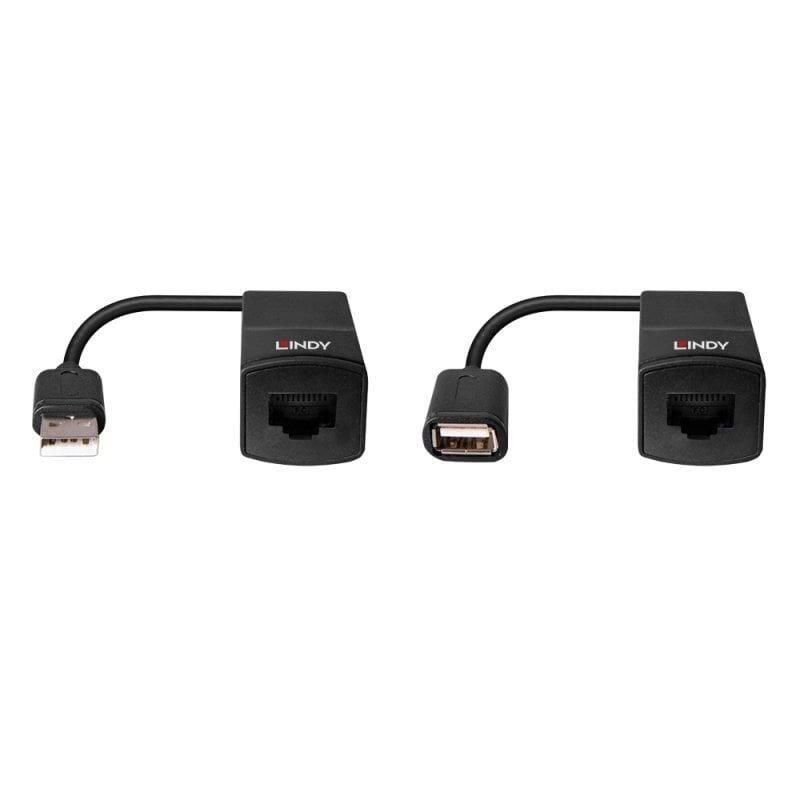

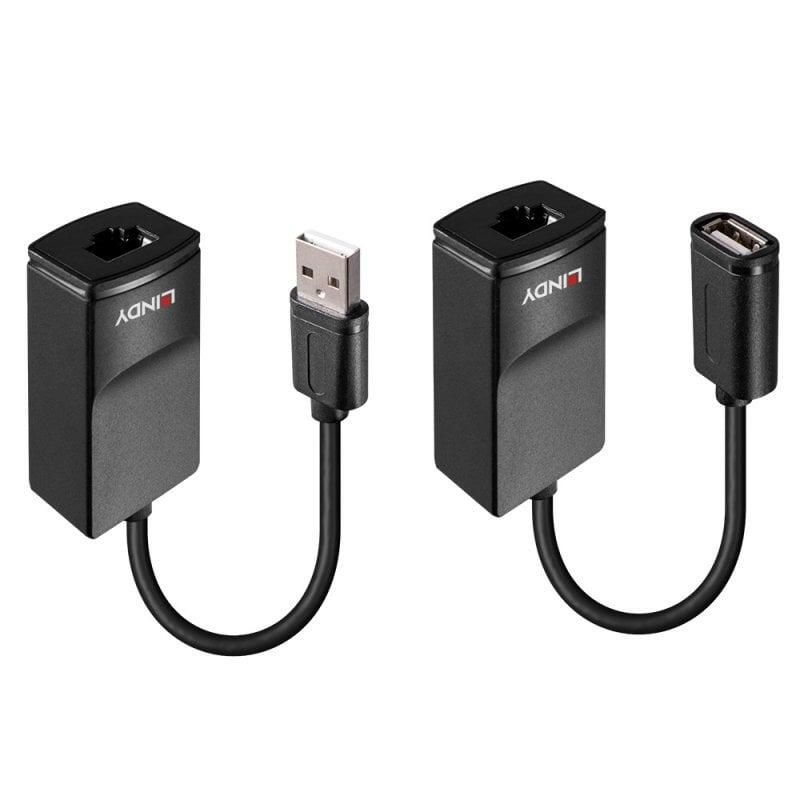

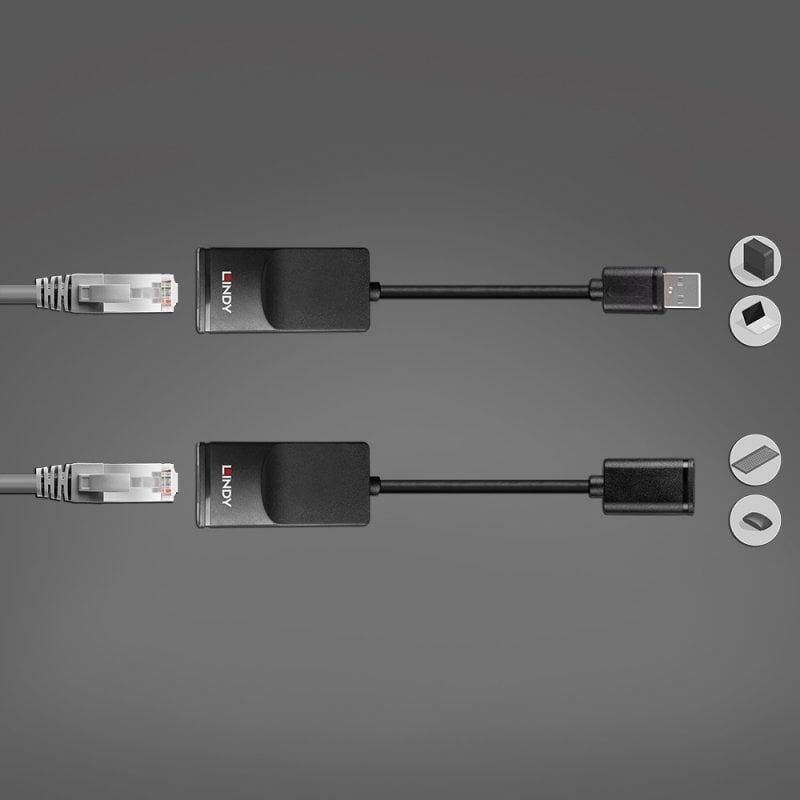

Lindy 60m USB 1.1 Cat.6 Extender consists of two units: a transmitter and a receiver. The transmitter connects to your computer's USB port, while the receiver connects to the USB device you want to extend.

The two units are connected by a Cat.6 cable, which carries the USB signal over the long distance.

Specifications

USB Standard: USB 1.1
Supported Bandwidth: 12Mbps
Maximum Distance: 60m (196ft)
Transmission Medium: Cat.5e/6 or higher network cable
Chipset: BCH4105G
Special Features: Supports control, bulk, interrupt and synchronous data transfer

Connectors

Transmitter Input: USB Type A (Male)
Transmitter Output: RJ45 (Female)
Receiver Input: RJ45 (Female)
Receiver Output: USB Type A (Female)

Physical Properties

Dimensions WxDxH:
Transmitter: 53x26x20mm (2.09x1.02x0.79in)
Receiver: 53x26x20mm (2.09x1.02x0.79in)
Housing Material: Plastic
Net Weight: 0.054kg (0.12lb)
Operating Temperature: 0° - 70°C (32°F - 158°F)
Storage Temperature: -20°C - 80°C (-4°F - 176°F)
Humidity: 0 - 90% RH (non-condensing)
Power Requirements: -
Colour: Black

Miscellaneous

Packaging Type: Carton Box
Packaging Dimensions: 180x105x30mm (7.09x4.13x1.18in)
Gross Weight: 0.113kg (0.25lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH, CP65

Package Contents

Transmitter unit
Receiver unit
Lindy Manual

Data Sheet

Manufacture
Lindy Electronics
