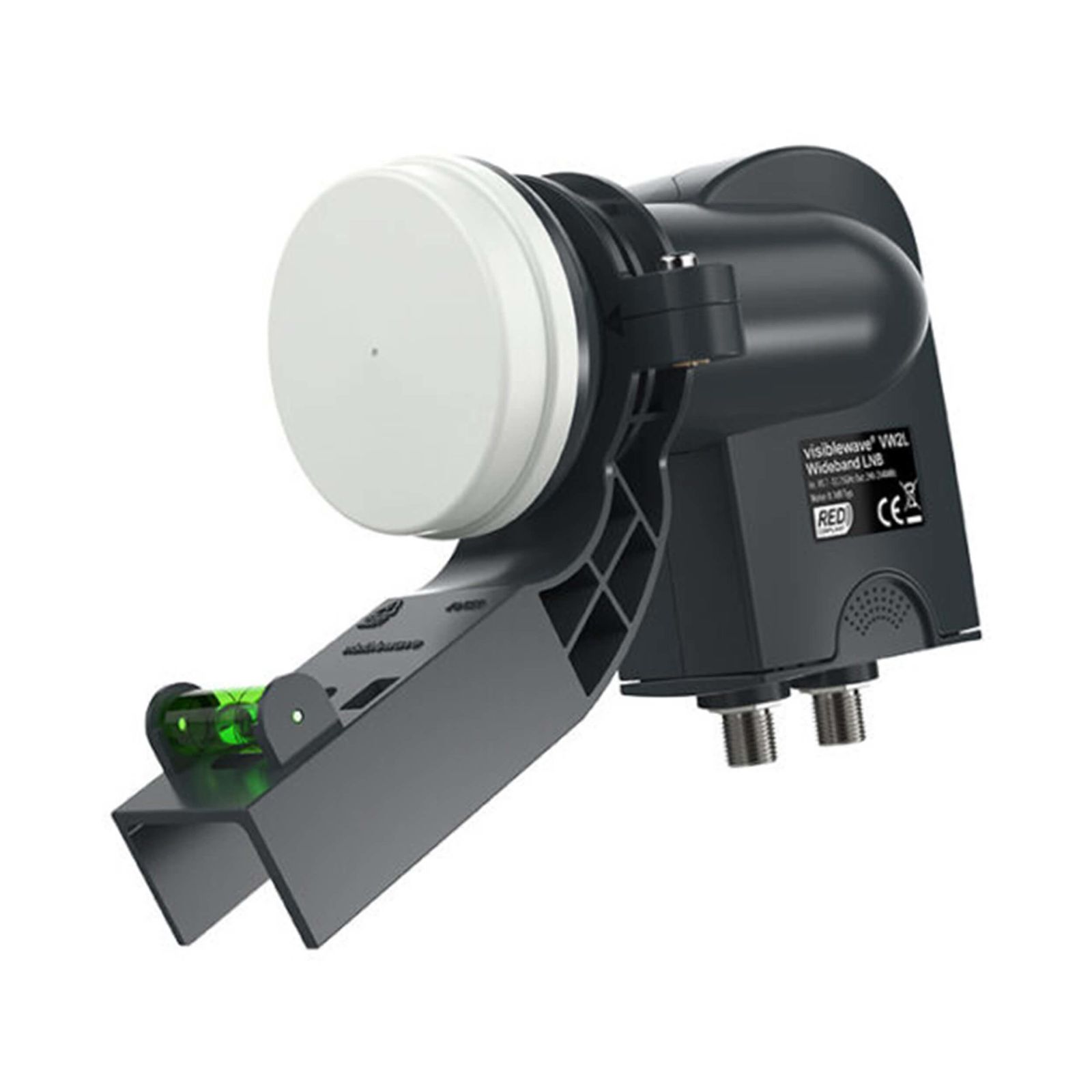

Labgear VW2L

Sky Q 2-Output Wideband LNB with Bracket

This wideband LNB is a device used in satellite TV installations to receive and down convert satellite signals from the Sky Q satellite and distribute them to multiple receivers.

Finished in grey
Supplied with a SkyTM-compatible bracket
Built-in spirit level

Works with Zone 1 or Zone 2 satellite dish, for Sky Q, Freesat, Sky HD

Trade log in

£0.00

£15.47

Labgear VW2L (Low Noise Block) is the device mounted on the satellite dish that captures the satellite signal and converts it into a lower frequency signal that can be carried over coaxial cables to the receiver.

The Sky Q 2 output wideband LNB features two output ports and is designed to work specifically with the Sky Q satellite system. The wideband design of the LNB allows it to receive a wide range of satellite frequencies from the Sky Q satellite, enabling it to provide signals for multiple Sky Q receivers at once.

The LNB is typically installed on the satellite dish using a mounting bracket and is connected to the satellite receiver or a multiswitch using coaxial cables. The LNB is powered by the receiver or multiswitch, which provides the necessary voltage to operate the LNB and switch between the different frequency bands.

Additional information

Packaging Length (cm)

Packaging Width (cm)

11.5

Packaging Height (cm)

7.4

Product Weight (grams)

160

Outputs

2x Wide (H & V)

Output Frequencies

290-2340MHz

Input Frequencies

Low 10.7-11.7GHz High 11.7-12.75GHz

Product & Packaging Weight (grams)

203

Gain Conversion @ 25⁰C

50-60dB

Noise Figure

<1dB

Cross Polar Isolation

Typ. 25dB

Compatibility SkyQ™

Spec Sheet

Manufacture
Labgear
