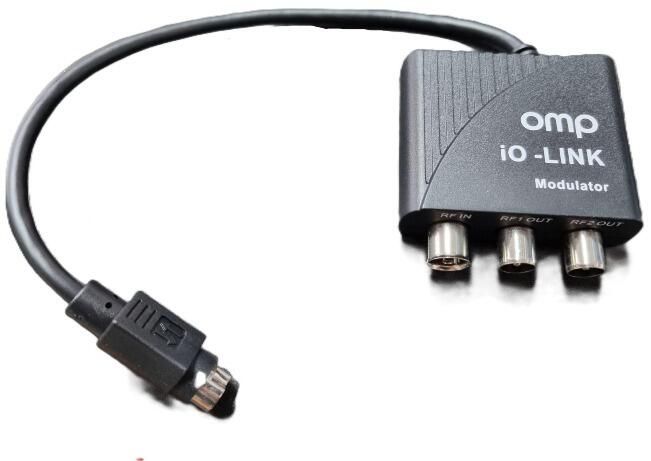

OMP M7004 Satellite I.O Link for Sky HD RF Distribution front

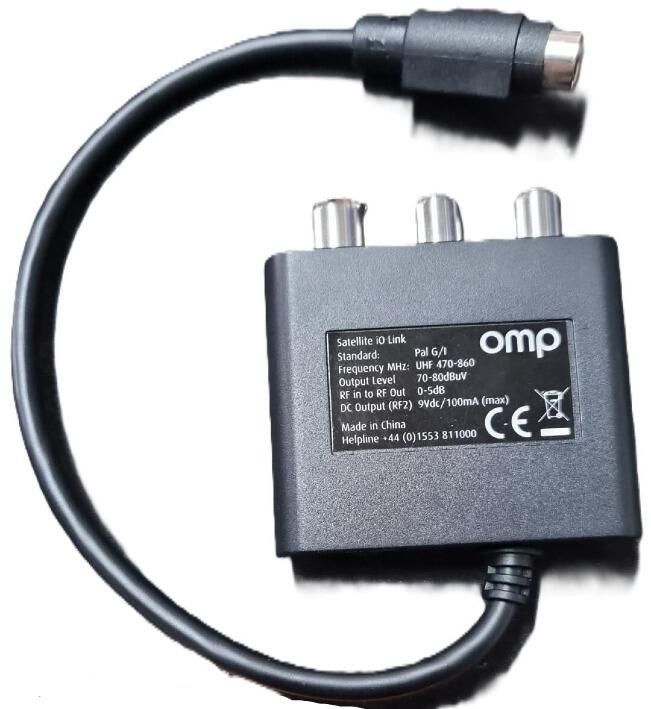

OMP M7004 Satellite I.O Link for Sky HD RF Distribution rear

OMP TV Wall Mounts

OMP IO Link PSU

Name: OMP IO Link PSU
Brand: OMP TV Wall Mounts
SKU: m7004
Price: 11.34 GBP
Availability: InStock

Sky I/O Link – RF Output Adapter for Sky HD Boxes

OMP M7004 Sky I/O Link is designed to restore RF output functionality to compatible Sky HD set-top boxes that do not feature a built-in RF output. It provides a convenient solution for distributing Sky TV signals through an existing coaxial TV system, allowing Sky channels to be viewed on additional televisions around the property.

Designed for straightforward installation, the M7004 connects to the I/O port on compatible Sky HD receivers and provides an RF output for connection to a TV distribution system. It is ideal for residential and commercial installations where existing coaxial cabling is already in place.

The OMP M7004 is compatible with Sky TV Link and Magic Eye systems, enabling remote control of the Sky receiver from another television location when installed as part of a compatible distribution setup.

Features

Restores RF output functionality to compatible Sky HD boxes
Enables Sky TV distribution through existing coaxial cabling
Suitable for multi-room Sky TV installations
Compatible with Sky TV Link and Magic Eye remote-control systems
Simple plug-and-play installation
Ideal for domestic and commercial TV distribution systems
Connects directly to the compatible Sky I/O port
Requires a compatible PSU/IO I/O Link Power Supply Unit (Not Supplied)
Compact design for neat and convenient installation

Trade log in

£0.00

£11.34

The OMP M7004 is intended for compatible legacy Sky HD receivers fitted with the appropriate I/O connection. Compatibility may vary depending on the Sky receiver model and the existing TV distribution system.

Please check the Sky box model and installation requirements before purchase. A compatible PSU/IO I.O Link Power Supply Unit is required for operation and is not included unless stated otherwise.

The OMP M7004 provides a straightforward way to retain RF distribution and remote-control functionality when using compatible Sky HD boxes without a conventional RF output. It is an ideal solution for installers and homeowners looking to make use of existing coaxial cabling and compatible TV Link systems.

Please note: This product is designed for legacy Sky HD RF distribution installations and may not be suitable for newer Sky Q or Sky Glass systems.

Satellite Dish

│

Satellite Cable

│

┌──────────────┐

│ Sky HD Box │

└──────────────┘

│ │

HDMI │ │ I/O Port

│ │

│ ┌─────────────┐

│ │ OMP M7004 │

│ │ I.O Link │

│ └─────┬───────┘

│ │ RF Out

│ │

Main TV │

│

12V PSU/IO │

┌────────┘

│

Existing Coax Cable

│

Distribution Amplifier

(with TV Link/Magic Eye pass)

│

┌────────────┴─────────────┐

│ │

Room 1 Room 2

Sky Magic Eye Sky Magic Eye

│ │

TV 1 TV 2

OMP M7004 Sky I.O Link – Quick Setup

Turn off the Sky HD box.

Connect the OMP M7004 to the I/O port on the back of the Sky HD box.

Connect the RF output from the M7004 to your coax distribution system.

Fit the PSU/IO power supply to the coax cable.

Turn the Sky box back on.

If the remote room Magic Eye doesn't work:

Go to Services > 0 > 0 > 1 > Select (Installer Menu).

Turn RF Outlet Power Supply to ON (if the option is available).

Save the settings.

Tune the remote TV to the RF channel carrying the Sky picture.

Before You Start

✔ Compatible with Sky+HD boxes only.

✔ Requires a PSU/IO power supply (sold separately).

✔ Your TV distribution amplifier or splitter must support DC pass for the Magic Eye to work.

✖ Not compatible with Sky Q, Sky Glass, or Sky Stream.
