MERCURY Launch Amplifier - 1 Input - VHF/UHF

• Wideband MATV Amplifier

• Variable Gain Control 0-20 B on All Inputs

• Masthead Line Power Supply with Short Circuit Protection

• Test Output -30dB

• Earth Bonding Point

SKU :371006

Need extra coax cable ?

£0.00
£65.58

QTY


TRIAX MERCURY LTE700 AMPLIFIER - 371006

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

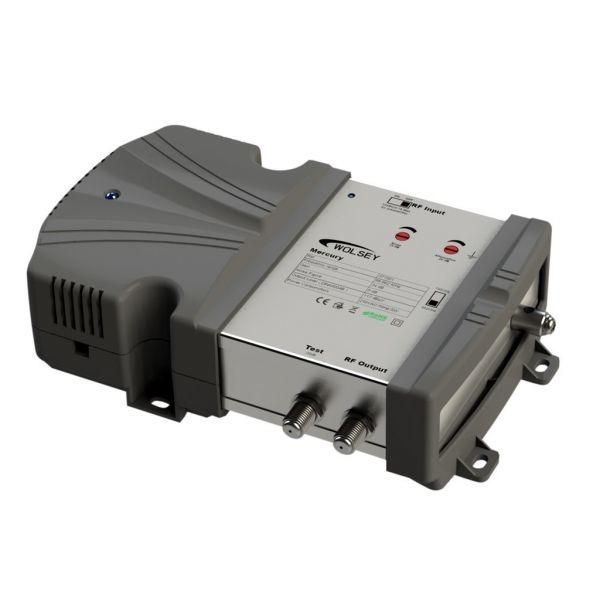

Wolsey Mercury LTE700 Amplifier is a signal booster designed to improve the quality of digital TV and radio signals in areas with poor signal reception. It works by amplifying weak signals to improve picture and sound quality. The LTE700 model is specifically designed to filter out interference caused by the 4G LTE mobile network, which can often interfere with TV and radio signals.

This amplifier features a compact and weather-resistant design, making it suitable for both indoor and outdoor installation. It has a frequency range of 47-790MHz, which covers both the VHF and UHF frequency bands used for digital TV and radio broadcasts. It also has a built-in 4G filter to minimize interference from mobile networks.

The Wolsey Mercury LTE700 Amplifier is easy to install and comes with all the necessary components, including a power supply and F connectors. It is a cost-effective solution for improving signal quality and is ideal for use in areas with weak or intermittent TV and radio signals.

SPECIFICATIONS


ORDER INFORMATION

EAN Number

5702663710061

FREQUENCY RANGE

Frequency range

88...694 MHz

Frequency Range DAB

217...230 MHz

Frequency Range FM

88...108 MHz

Frequency range UHF

470-790 MHz

LOSS

Attenuation - adjustable

0-20 dB

GAIN

Gain

34 dB

Noise figure

<7 dB

CONNECTORS

Number of inputs

1

Number of outputs

2 (Full and Test)

CHARACTERISTICS

Max. Output level (@ full dig. load)

117 dBµV

Test Point

- 30 dB

OPERATIONAL

LED indicator

Yes

LINE power current (max.)

100 mA

MECHANICAL

Product Length

190 mm

Packaging Height

0.060 m

Packaging Width

0.200 m

Packaging Depth

0.190 m

Packaging Volume

0.002 m3

Net Weight

0.775 kg

Tara Weight

0.095 kg

Total Weight

0.870 kg

Remarks

Screened Amplifier
