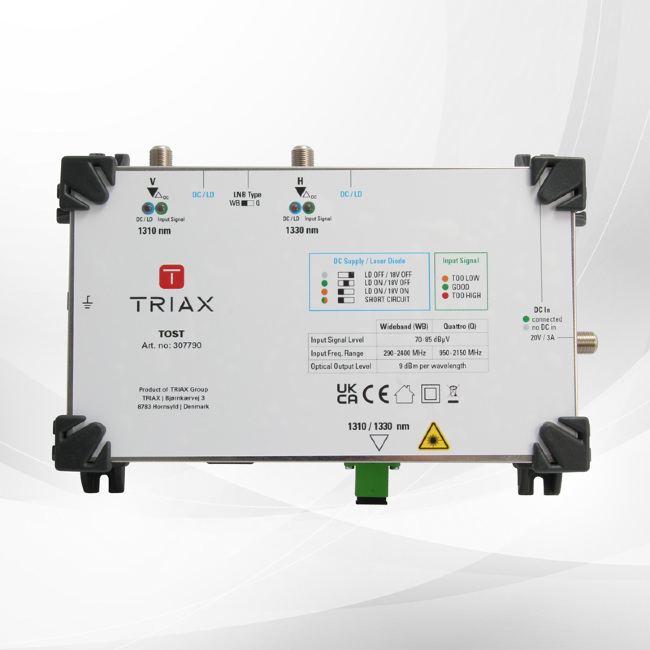

Triax TOST Optical Satellite Transmitter

Integrated services on a single fibre with AGC

SAT-IF distribution over fibre optics (FO) can supply many households over larger distances, with feed from a central satellite dish station.
Almost lossless transmission of satellite, DVB-T and DAB signals. Attenuation per 1000 m only about 0.3 dB.
Future-proof and widest possible variety of channels.
Space-saving installation - a 3 mm optical fibre replaces five 7 mm coaxial cables.
TOST - TRIAX Optical Satellite Transmitter is the core component on the headend side of the TOF (Triax Optical Fibre) system. This unit converts RF Wideband or Quatro SAT-IF for transmission over a PON (Passive Optical Network).
The transmitter is an installer-friendly plug-and-play solution thanks to built-in Automatic Gain Control (AGC) and Automatic Slope Control (ASC) of the RF inputs.
The TOST consists of two separate optical transmitters 1310 and 1330nm for wideband SAT-IF LOW and HIGH bands. They are combined to a WDM signal at the TOST output for transmission over single-mode fibre cabling.
The optical output signal of this headend unit can drive up to 64 optical splits directly.
Up to 128 splits can be deployed when using the TWOC optical wideband receivers.

SKU: 307790

2-3 Days delivery

Trade log in

£0.00

£449.94

Triax TOST Optical Satellite Transmitter with AGC (Automatic Gain Control) is a cutting-edge device designed for high-performance satellite communication systems. This innovative transmitter combines advanced optical technology with intelligent signal processing capabilities to ensure reliable and efficient data transmission.

At its core, the Triax TOST transmitter utilizes state-of-the-art optical components to convert electrical signals into optical signals, which are then transmitted through a fiber-optic cable to a satellite for onward relay. This optical transmission method offers several advantages over traditional radio frequency (RF) transmission, including higher data rates, lower signal loss, and increased security.

One of the key features of the Triax TOST transmitter is its integrated AGC system. AGC continuously monitors the strength of the incoming electrical signal and automatically adjusts the gain of the transmitter to maintain optimal signal quality. This dynamic adjustment helps to compensate for fluctuations in signal strength caused by factors such as atmospheric conditions or equipment variations, ensuring consistent and reliable performance in diverse operating environments.

The Triax TOST transmitter is designed for easy integration into existing satellite communication systems and can be configured to meet the specific requirements of various applications, including telecommunication networks, remote sensing, earth observation, and scientific research. Its compact design, robust construction, and advanced functionality make it an ideal choice for demanding satellite communication applications where performance, reliability, and versatility are paramount.

Spec Sheet
