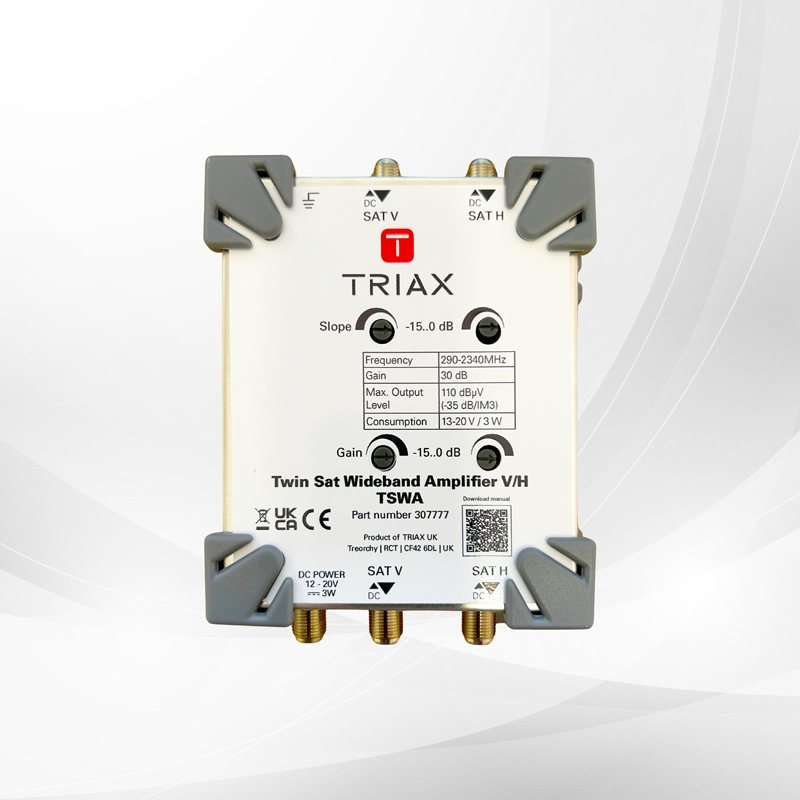

Triax TSWA

Name: Triax TSWA
Brand: Triax United Kingdom
SKU: 307777
Price: 75 GBP
Availability: InStock

Efficient Wideband Signal Amplification

Triax TWSA Satellite Wideband Amplifier is engineered for wideband satellite applications, handling frequencies from 290 MHz to 2340 MHz. With two inputs — one for the vertical feed and one for the horizontal feed — this amplifier efficiently combines low and high bands into a single feed.

It is fully compatible with wideband LNBs, making it ideal for modern satellite distribution setups where multiple frequency bands are used.

Compact and robust, the TWSA ensures high-quality signal amplification across the wideband spectrum for homes, commercial buildings, and satellite installations.

Features

Wideband Frequency Range: 290 MHz – 2340 MHz
Two Inputs: Vertical and horizontal satellite feeds
Combined Output: Low and high bands on a single feed
Wideband LNB Compatible: Supports modern satellite systems
High-Quality Amplification: Boosts weak satellite signals efficiently
Compact and Robust: Easy to install and durable
PSU Not supplied (318165)
SKU: 307777

Allow 2/3 day delivery

Trade log in

£0.00

£75.00

Triax TSWA stands for Triaxial Screened Wideband Amplifier. It is a type of amplifier used in the telecommunications and broadcasting industries to boost and amplify signals for transmission over long distances.

The Triax TSWA amplifier is designed to provide superior performance in high-frequency applications, with a frequency range typically ranging from 5 MHz to 2.4 GHz. It is commonly used in applications such as satellite broadcasting, cable television, and CCTV systems.

The triaxial screened design of the TSWA helps to prevent electromagnetic interference (EMI) and radio frequency interference (RFI) from affecting the signal quality, which is critical in high-frequency applications. This ensures a clean and clear signal transmission over long distances, without any loss or degradation of signal quality.

The Triax TSWA amplifier typically features a low noise figure, which helps to improve the signal-to-noise ratio and maintain high signal quality. It also features a high gain, which allows for the amplification of weak signals, making it an essential component in long-distance signal transmission.

Triax TSWA is a reliable and high-performance amplifier that is widely used in the telecommunications and broadcasting industries. Its triaxial screened design, low noise figure, and high gain make it an essential component in high-frequency applications where signal quality is critical.

EAN Number	5702663077775
Type	Amplifier - wideband
Max. output level SAT @ -35 dB IMD3	117 dBµV
Frequency range SAT	290...2340 MHz
Gain	30 dB
Gain Adjustment	15
Slope	15 dB
Impedance	75 Ω
Power Consumption (typ.)	3 W
Number of inputs	2
Number of outputs	2
Dimensions product (H x D x W)	177x133x51 mm
Packing QTY	1
Product Height	130 mm
Product Width	115 mm
Product Depth	50 mm
Packaging Height	0,140 m
Packaging Width	0,120 m
Packaging Depth	0,060 m
Packaging Volume	0,001 m3
Net Weight	0,230 kg
Tara Weight	0,045 kg
Total Weight	0,275 kg

307777 Spec Sheet
