TRIAX

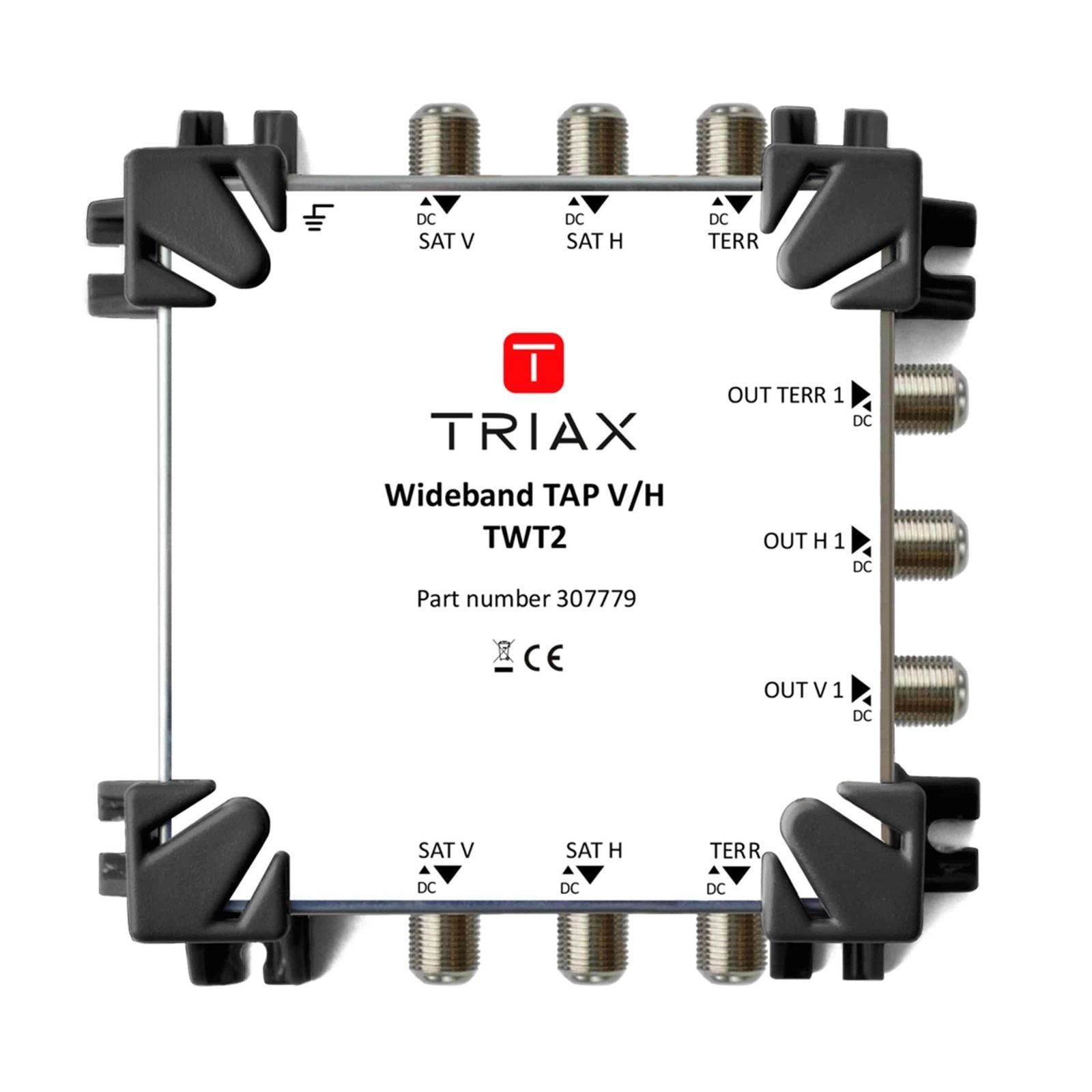

TRIAX TWT2 Wideband Tap H/V

TWT2 Wideband Tap H/V

TRIAX TWT2 Wideband Tap H/V

Designed to be used with Wideband systems with Satellite IF frequencies from 290 MHz to 2340 MHz, and Terrestrial frequencies between 5 MHz and 862 MHz.

  • ADDITIONAL INFORMATION
    EAN Number5702663077799
    TypeTap
    Frequency range SAT290...2340 MHz
    Frequency range TER5...862 MHz
    Tap loss SAT11.0 dB
    Tap loss TER13.0 dB
    Through loss - Trunk SAT2.0 dB
    Through loss - Trunk TER1.5...2.0 dB
    Impedance75
    Number of inputs3
    Number of outputs6
    Dimensions product (H x D x W)130x130x50 mm
    Packing QTY1
    Product Height130 mm
    Product Width130 mm
    Product Depth50 mm
    Packaging Height0,055 m
    Packaging Width0,255 m
    Packaging Depth0,235 m
    Packaging Volume0,003 m3
    Net Weight0,250 kg
    Tara Weight0,160 kg
    Total Weight0,410 kg
