Part of the ever-expanding life safety range

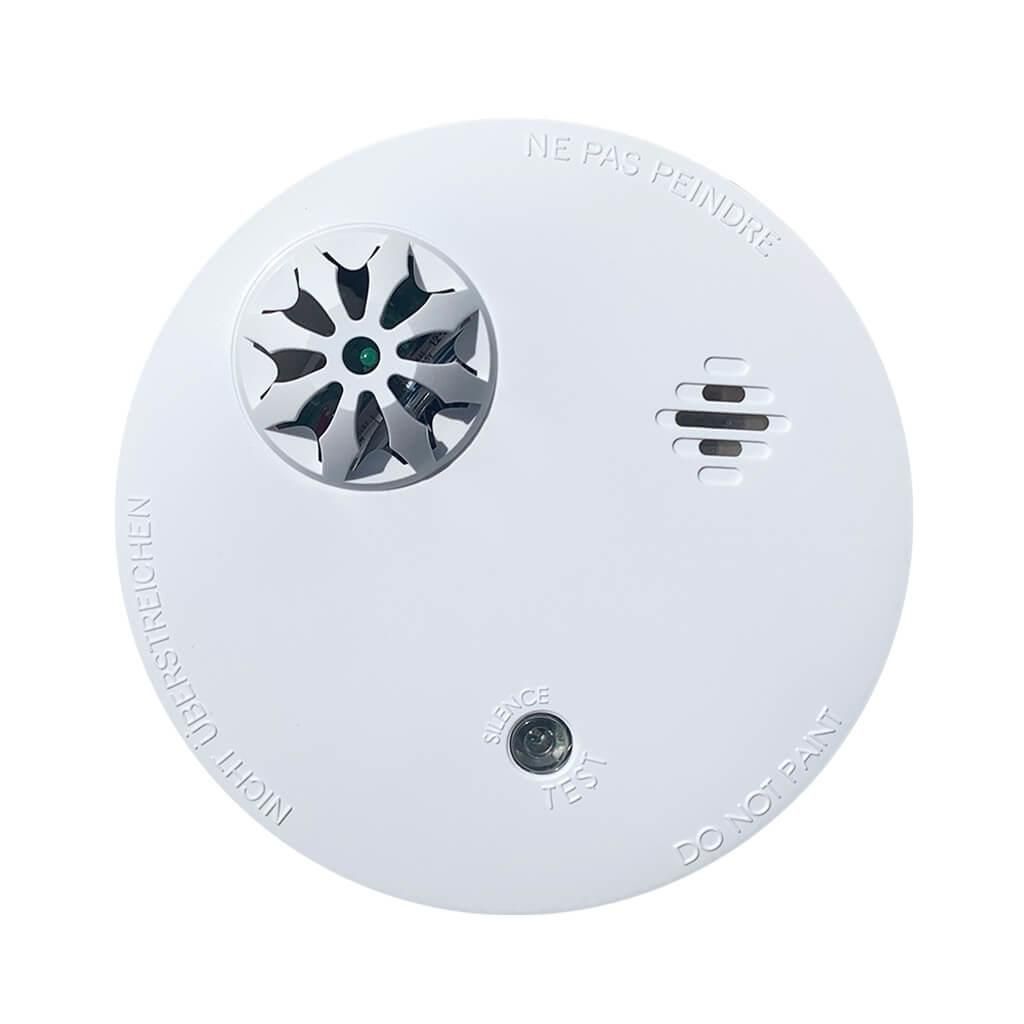

Adding another dimension to systems, the HEAT-WE raises the alarm if the room temperature reaches 57°C and above.
Perfect for areas such as kitchens, the HEAT-WE provides accurate and dependable fire detection, with prompt notification of any alarms via the always-connected app.
Fixed heat detection
With a fixed detection heat of 57°C, the two-way wireless heat detector provides continuous and reliable safety sensing which can be easily and efficiently added to any Pyronix system.
Loud and obvious alarms
The HEAT-WE has a built-in 85dB local sounder and flashing LED lights; providing a clear and obvious alarm when the environmental temperature reaches 57°C.
Be in control with full low-battery supervision
When the battery is running low on the radio module of the HEAT-WE, the detector will send a signal to the control panel to report the issue. If the user has the smart device app connected to the system, they’ll also receive a push notification to draw their attention to the fault.
Stay safe with tamper protection
If the housing of the HEAT-WE is dislodged, the rear tamper will trigger to alert that it is not fitted correctly.
Pyronix High Security Wireless Encryption Protocol
The two-way wireless protocol has been developed by Pyronix to ensure that the communication between all wireless system components are encrypted.
The Enforcer two-way wireless protocol allows easy learning of all its peripherals – with the push of a button you can add any of the detectors or sensors to Enforcer wireless compatible control panels.
Signal Strength Indicator (SSI) on the Device
SSI in all Enforcer wireless devices allow them to be optimally positioned during installation, without the need to refer back to the panel.
Security and safety sensors technical characteristics
Heat sensor Yes
Tamper protection Yes
Button sensor test Yes
LED sensor test Yes
Sound level 85dB/3M
Enforcer two-way wireless technology
Signal Strength Indicators (SSI) Yes
Instant two way device control (ITDC) Yes
Pyronix high security two way wireless data encryption protocol (TDE) Yes
Pyronix intelligent jamming detection Yes
Programmable wireless supervision time Yes
868MHz transceiver FM technology Yes
Tranmission method Fully encrypted rolling code
Environmental and operating features
Certified operating temperature -10°C to +50°C
Heat alarm temperature 57ºC
Humidity 5 - 90%
Sensitivity range Derived from EN54-5, Temp class: A2
Physical dimensions (ø x D) 120 x 52.45mm
Weight (including battery) 172g
Electrical & battery
RF power supply 1 x 3V CR123A (replaceable)
RF battery life 2 years
Sensor power supply 2 x 1.5V AA (non-replaceable)
Sensor battery life 10 years
Sensor low voltage alert 2.6 - 2.7VDC
RF low voltage alert 2.5V +/-5% @ 25C
Certifications and warranty
BSI certified BS 5446-2:2003
Electrical conformity CE
Environmental class II
