Triax TMB UK 2500 Terrestrial Channel Processor

Triax United Kingdom

Triax TMB UK 2500 Terrestrial Channel Processor

Triax 360238 The state of the art Programmable Multiband Amplifiers

Unleash the best experience with TMB 2500.

The programmable Terrestrial Channel Processor is able to receive TV signals from multiple terrestrial antennas.

It combines filtering, converting, level equalization and amplifying of broadcast channels - all this within a very compact unit in order to boost the sum signal into the coaxial TV distribution network in large multi-dwellings or hospitality premises.

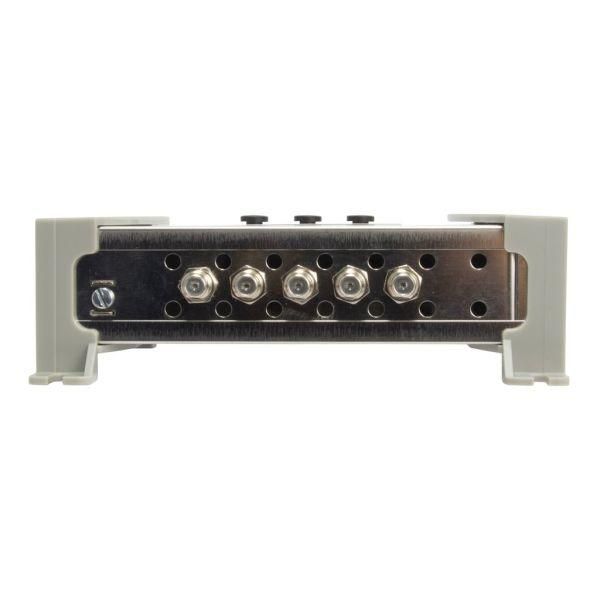

  • 5 antenna inputs: FM / 4xVHF/UHF
  • Very high max output level for big distribution networks
  • Flex matrix with 32 filters per 1…6 MUX enables individual channel processing to any output channel
  • Real-time AGC separately on all multiplexes
  • 50 dB suppression of adjacent channels
  • Automatic switch between LTE 700-5G and 800-4G rejection
  • Slope to compensate frequency-dependent tilt of the coax cable network
  • Setup locking with security code
  • Switchable remote feeding for pre-amplifiers 0/12/24 VDC
  • SD card slot for saving and reloading individual

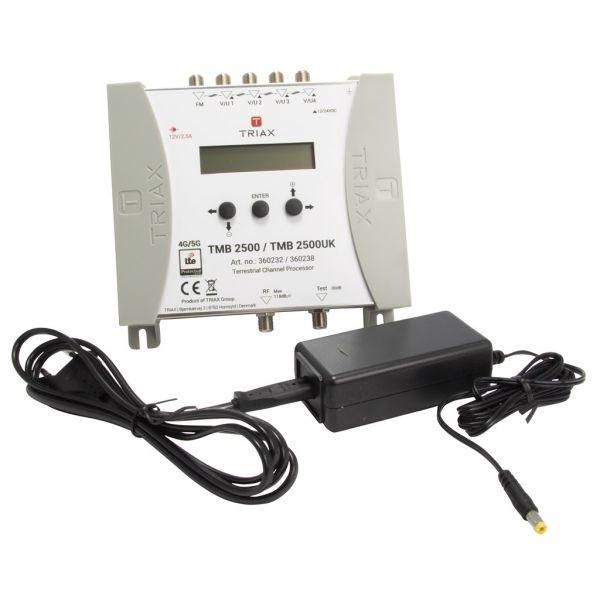

  • Desktop PSU with UK mains plug
  • Allow 2/3 day deliver on this item

CDS SPECIAL ORDER


£0.00
£275.87

QTY


TMB UK 2500 Terrestrial Channel Processor

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Triax TMB UK 2500 Terrestrial Channel Processor is a device used in the context of television signal processing and distribution. Specifically, it is designed to process and manage terrestrial television signals for various applications. Here are some common use cases for the Triax TMB UK 2500:

Signal Distribution: The Triax TMB UK 2500 can be used to distribute terrestrial TV signals to multiple televisions within a building or facility. This is useful in environments like hotels, apartment complexes, hospitals, and large residential buildings where you want to provide access to terrestrial TV channels to multiple rooms.

Signal Management: The device can help manage and organize the available TV channels. It can allow you to customize the channel lineup and block certain channels if needed.

Commercial Installations: In commercial settings such as bars, restaurants, waiting rooms, and fitness centers, the Triax TMB UK 2500 can help provide entertainment to customers by distributing TV channels on various screens.

Integration with MATV/SMATV Systems: The Triax TMB UK 2500 can be integrated into Master Antenna Television (MATV) or Satellite Master Antenna Television (SMATV) systems to incorporate terrestrial TV channels into larger distribution networks.

Customization and Configuration: The device might offer options for configuration and customization, allowing you to set up the system to match the requirements of the specific installation.

Compatibility and Conversion: In some cases, the device might support the conversion of signals to different formats or standards, ensuring compatibility with various types of TVs and devices.

Signal Amplification: The device might include amplification capabilities to ensure that the TV signals remain strong and clear even when distributed across a larger area.

ORDER INFORMATION

EAN Number5702663602380

CHARACTERISTICS

MER35 dB
Input Level - FM37...77 dBµV
Input Level - VHF40...109 dBµV
Input Level - UHF40...109 dBµV
Output level FM113 dBµV
Output level @ 60dB IMR3 - UHF120 dBµV
Output level @ 60dB IMR3 - VHF120 dBµV
Output Level VHF/UHF 1MUX118 dBµV
Output Level VHF/UHF 6MUX114 dBµV
Selectivity50 dB/1MHz
Test Point- 30 dB

ELECTRICAL

Impedance75 Ω

CONNECTORS

Number of inputs1xFM 4xVHF(DAB)/UHF
Number of outputs1x FM/DAB/VHF/UHF + 1x Test port

FREQUENCY

Frequency Range FM88...108 MHz
Frequency Range DAB174...240 MHz
Frequency range VHF174...240 MHz
Frequency range UHF470...862 MHz
Number of channels> 50 by 32 filters

GAIN

Gain FM35 dB
Gain - VHF75 dB
Gain - UHF75 dB
Slope15 dB

LOSS

Attenuator FM0...20 dB
Attenuator Sum Output0...20 dB

OPERATIONAL

AC Supply voltage100...240 VAC
Power Consumption (typ.)15 W
Remote Voltage Preamp12/24 VDC
Temperature - operating-5...50 °C

MECHANICAL

Dimensions product (H x D x W)165 x58 x165 mm
Packing QTY1
Packaging Height0.230 m
Packaging Width0.270 m
Packaging Depth0.075 m
Packaging Volume0.005 m3
Net Weight0.815 kg
Tara Weight0.155 kg
Total Weight0.970 kg

PDFSpec Sheet
