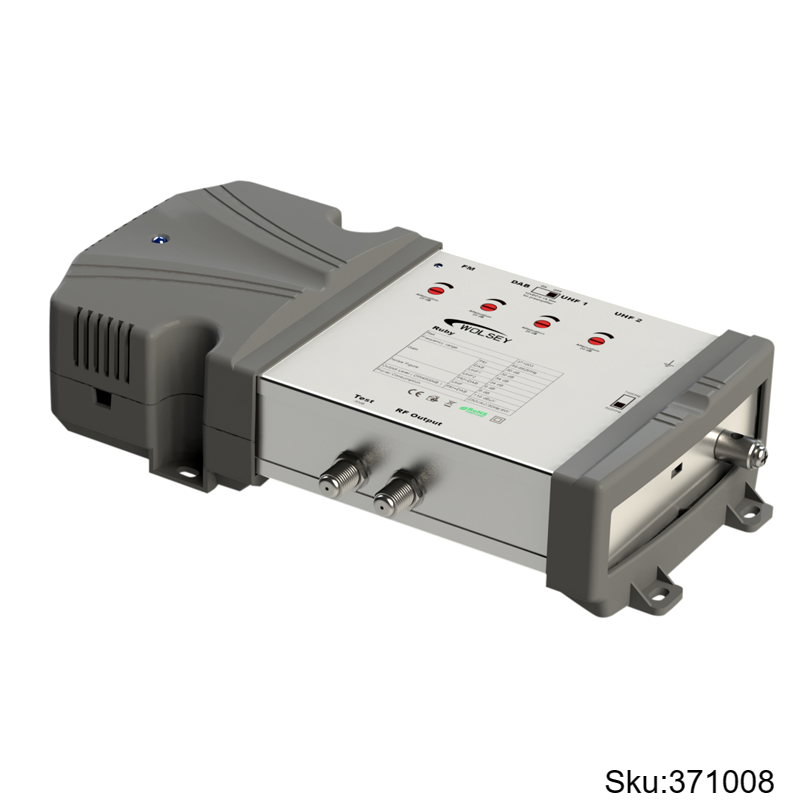

Wolsey Ruby LTE700

Name: Wolsey Ruby LTE700
Brand: Triax United Kingdom
SKU: 371008
Price: 77.868 GBP
Availability: InStock

4-Input Multiband Amplifier – FM / DAB / UHF1 / UHF2

Wolsey Ruby LTE700 4-Input Multiband Amplifier is a high-quality signal booster designed to improve TV and radio reception while mitigating interference from LTE700 cellular networks. Perfect for residential or small commercial installations, this amplifier handles multiple frequency bands with independent variable gain control to optimise signal quality.

Features

Multiband Amplifier: FM, DAB, UHF1, and UHF2 inputs
LTE700 Protected: Reduces interference from 700 MHz LTE signals
Variable Gain Control: 0–20 dB adjustment on all inputs for precise signal tuning
Masthead Line Power Supply: Built-in power with short circuit protection
Test Output: -30 dB for easy signal monitoring
Earth Bonding Point: For secure and safe installation
Durable Construction: Weatherproof and long-lasting for outdoor use

SKU :- 371008

Trade log in

£0.00

£77.87

LTE is a wireless communication standard used by many mobile network operators.

In some cases, the signals transmitted by LTE networks can cause interference with television and radio reception.

The TRIAX RUBY LTE700 Amplifier is engineered to filter out and minimise this interference, ensuring optimal signal quality for television and radio broadcasts.

The amplifier operates within the LTE700 frequency band, which typically ranges from 698 MHz to 806 MHz. By incorporating advanced filtering and amplification technologies, the TRIAX RUBY LTE700 aims to enhance signal strength and reduce the impact of LTE interference, thereby improving the overall performance of the TV and radio reception.

ORDER INFORMATION

EAN Number

5702663710085

FREQUENCY RANGE

Frequency range	88...862 MHz
Frequency Range DAB	217...230 MHz
Frequency Range FM	88...108 MHz
Frequency range UHF	470-694 MHz

LOSS

Attenuation - adjustable

0-20 dB

GAIN

Gain	30 (FM/DAB) dB
Gain - UHF	34 (UHF1 and 2 ) dB
Noise figure VHF	<7 dB
Noise figure UHF	<7 dB

CONNECTORS

Number of inputs	4
Number of outputs	2 (Full and Test)

CHARACTERISTICS

Max. Output level (@ full dig. load)	115 dBµV
Test Point	- 30 dB

ELECTRICAL

Impedance

75 Ω

OPERATIONAL

LED indicator	Yes
AC Supply voltage	230/50Hz VAC
Power Consumption (typ.)	9 W
LINE power DC voltage (max.)	12 Switchable VDC
LINE power current (max.)	100 mA

MECHANICAL

Product Length	232 mm
Product Width	135 mm
Product Depth	55 mm
Packaging Height	0.060 m
Packaging Width	0.240 m
Packaging Depth	0.190 m
Packaging Volume	0.003 m3
Net Weight	0.865 kg
Tara Weight	0.105 kg
Total Weight	0.970 kg
Remarks	Screened Amplifier

Spec Sheet

Manufacture Link
Triax
