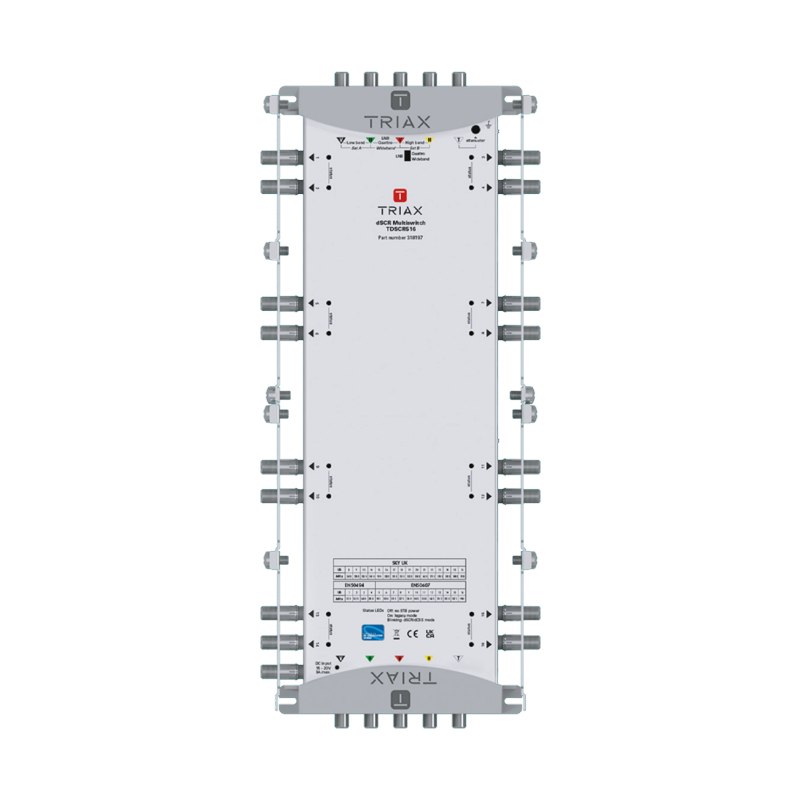

TRIAX TDSCR 516 - Multiswitch

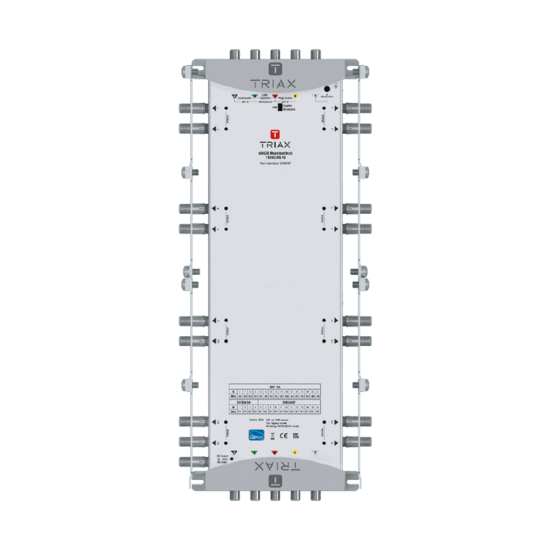

TRIAX TDSCR 516 - Multiswitch
The only switch you need
Independent outputs for legacy or dSCR mode; the TRIAX TDSCR 516 can be used as cascade, standalone or terminated.
European IRS Certification Scheme
The full range of dSCR multiswitches are certified to the EICS scheme demonstrating the high quality of the solution and compatibility with all major satellite and TV platforms.
Ultimate flexibility
With your choice of 4, 8, 12 or 16 outputs, TRIAX multiswitches are compatible with Quattro and Wideband LNBs and support 1 or 2 satellite positions.
Trust TRIAX
With 70 years of reliability and innovation, we ensure you live up to your own customer promises.
Reduce costs
Market-leading low power consumption means you can build large, cascadable systems with a single PSU connected at any point in the system.
Easy planning and installation
Simple integration with existing TRIAX solutions; 5x Quick F connectors included.
Safety first
Earth Bars included for all subscriber outputs.
- ADDITIONAL INFORMATION
ORDER INFORMATION
EAN Number
5702663181885
CHARACTERISTICS
Input level
70...100 (-38 to -8dBm) dBµV
Output level
83 (-26dBm)/ 83 (-26dBm) with 2 carriers dBµV
LNB power supply max.
15...20 V/DC
LNB current max.
1000 mA
FREQUENCY
Frequency range TER
40...790, active MHz
Frequency range SAT
dSCR/legacy: 950...2150 - Wideband: 290...2340 MHz
LOSS
Through loss TER
-7 +/-2dB dB
Through loss SAT
-9 +/-5dB dB
Insertion loss - TER
1 +/-5dB dB
Attenuation TER
0...20 dB
ISOLATION
Isolation cross polarisation H/V
25 dB
RETURN LOSS
Return Loss
10 dB
ELECTRICAL
Impedance
75 Ω
OPERATIONAL
DC Current consumption
160 mA
PSU/adapter INFO
Optional
Temperature - operating
-20...50 °C
CONNECTORS
Number of inputs
4 SAT (1x quattro + 2x wideband) + 1 TERR
Number of outputs
16
MECHANICAL
Dimensions carton (H x D x W)
191x446x52 mm
Packing QTY
1
Packaging Height
0,058 m
Packaging Width
0,260 m
Packaging Depth
0,466 m
Packaging Volume
0,007 m3
Net Weight
2,030 kg
Tara Weight
0,330 kg
Total Weight
2,360 kg
Remarks
SKY UK, EN50607, EN50494 (automatic selection)
- DOWNLOADS
Spec Sheet
