Armoured Cat6 UTP

Name: Armoured Cat6 UTP
Brand: Chester Digital Supplies Ltd
SKU: CDSCAT6ARMOURED
Price: 2.52 GBP
Availability: InStock

Specialised Cat 6 Ethernet cable designed for networking and data transmission in harsh or demanding environments.

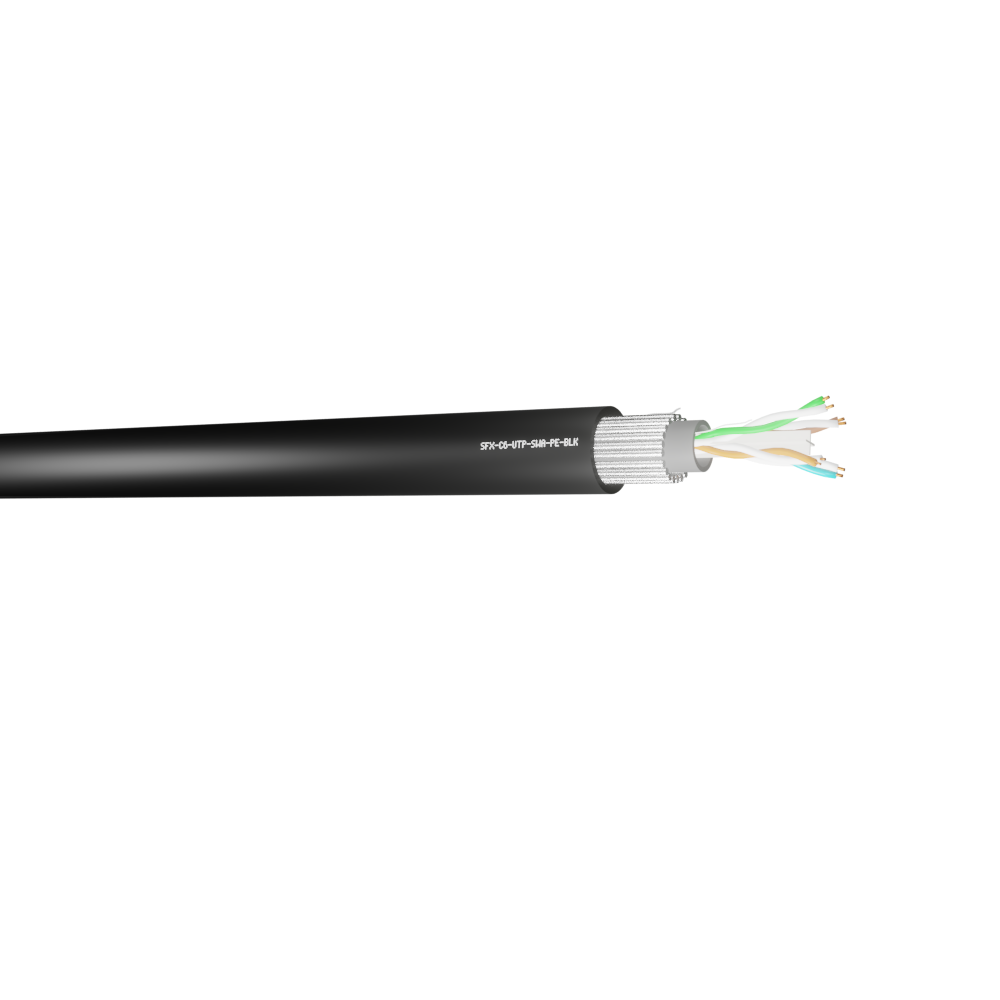

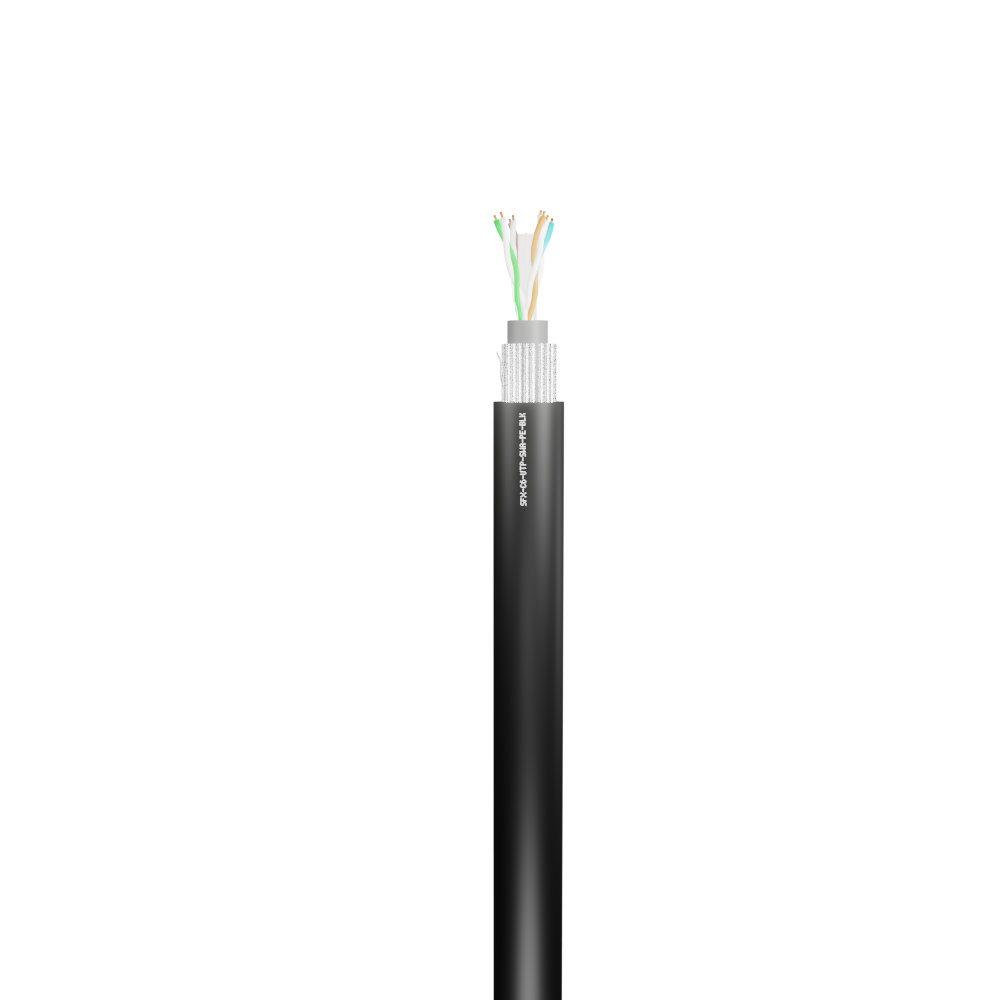

Armoured Cat 6 UTP Ethernet Cable is a specialised networking solution designed for environments where cables are exposed to physical stress, abrasion, or potential rodent damage. Ideal for industrial facilities, outdoor installations, and underground wiring, this cable ensures reliable data transmission in harsh and demanding conditions.

Constructed with bare copper conductors and HDPE insulation, the cable provides excellent electrical performance, supporting high-speed Gigabit Ethernet and other Cat 6 networking standards. The polyethylene (PE) outer sheath offers additional protection against environmental factors, while the armoured layer safeguards against mechanical damage, ensuring long-term durability and reliability.

Fully compliant with international and European standards including ISO/IEC 11801, ANSI/TIA 568-C.2, CE 2014/30/EU, LVD 2014/35/EU, and RoHS2 2011/65/EU, this cable is a professional-grade solution for demanding networking applications.

Features

Specialised Cat 6 UTP cable for harsh environments
Armoured for protection against physical damage, abrasion, and rodents
Bare copper conductors for superior signal quality
HDPE insulation with PE outer sheath for environmental protection
Supports Gigabit Ethernet and high-speed data transmission
Ideal for industrial, outdoor, and underground installations
Compliant with ISO/IEC 11801, ANSI/TIA 568-C.2, CE, LVD, and RoHS2 standards
Durable and reliable for long-term use
Colour: Black

SOLD PER METRE

Trade log in

£0.00

£2.52

Protection in Harsh Environments:

Networking and Data Transmission:

Like standard Cat 6 cables, they are used to transmit data in Ethernet networks, supporting speeds up to 10 Gbps (over shorter distances) and bandwidths of up to 250 MHz.

Security Applications:

Commonly used in areas requiring additional protection for cables that run through unsecured or high-risk locations.

Underground or Outdoor Installations:

The armoured layer makes these cables suitable for direct burial or external use without additional conduit protection.

Industrial and Commercial Use:

Ideal for factories, warehouses, and outdoor installations where exposure to elements or mechanical forces is a concern.

Key Features

Armoured Layer:

Provides protection from crushing, impacts, and cuts.

Typically made from materials like steel wire or aluminium tape.

Durability:

Resistant to environmental factors like moisture, temperature extremes, and chemical exposure.

UTP Design:

Lacks additional shielding inside the cable (e.g., foil or braiding), relying on the twisting of wire pairs to minimise electromagnetic interference (EMI).

Compliance:

Often adheres to industry standards like ANSI/TIA-568, ensuring compatibility with network devices.

Considerations

Flexibility:

Armoured cables are less flexible than non-armoured cables due to the protective layer, which may limit their use in tight spaces or complex routing.

Installation:

Requires tools or expertise to properly handle and terminate the armoured layer.

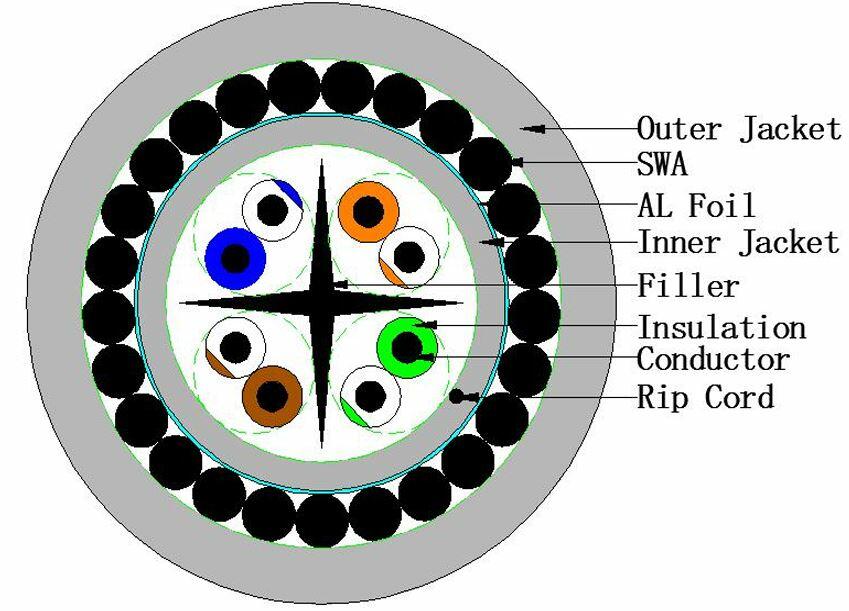

4 PAIR UTP CAT6 SWA CABLE

Spec Sheet
