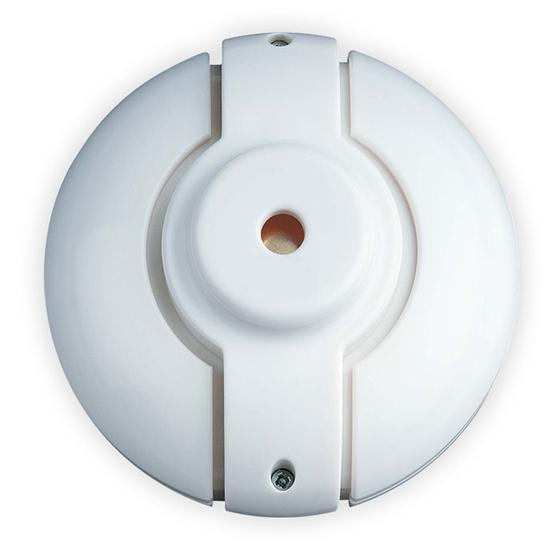

Pyronix FP10800 - Twin Alert Internal Sounder

Pyronix FP10800 - Twin Alert Internal Sounder

Pyronix FP10800 - Twin Alert Internal Sounder

The Twin Alert combines both a speaker and sounder in a single unit, eliminating the need for two separate products situated in different locations.

The speaker element of the Twin Alert mimics keypad tones and the sounds associated with the setting and unsetting of a system. The volume of the tones can also be adjusted to suit individual requirements. The primary purpose of the speaker is to enable users to hear confirmation that the system has set correctly upon leaving the property.

The internal sounder will only activate on alarm and will override the pre-set speaker volume level, providing a siren output of 100 decibels at 1m. This high volume internal siren acts as a deterrent to intruders and will also alert any inhabitants.

  • Tamper protection
  • 100dB loudness
  • Engineer hold off
  • Compatible with any panel featuring a speaker output

    Sounders technical characteristics

    • Loudness : 100dB @ 1m
    • Engineer hold off: No
    • Number of Piezos: 1
    • Tamper protection: Yes
    • For internal use: Yes

    Environmental and operating features

    • Storage temperature : -20°C to +60°C
    • Certified operating temperature: -10°C to +40°C
    • Nominal operating temperature: -10°C to +40°C
    • Physical dimensions (H x W x D): 90 x 90 x 46mm
    • Weight: 100g

    Electrical & battery

    • Operating voltage: 9-14.5V (13.5V nominal)
    • Alarm current: 160mA
    • Quiescent current consumption: 30mA 12V

    Certifications and warranty

    • Electrical conformity: CE
    • EN Certificate: EN50131-4:2009, EN50131-1:2006+A1:2009, PD6662:2010
    • Certification type: Self certified
    • Environmental class : II
    • Warranty: 2 years
    • Security Grade: Grade 2
