SC570 Surface Magnetic Contact Grade 2

SC570 Surface Magnetic Contact Grade 2

SC570 Surface Magnetic Contact Grade 2

Magnetic surface contacts and other magnetic contacts are known throughout the security industry for their quality.

The Multi contacts come with selectable resistors to allow installers to stock one contact that can be used with any panel.

Many of the contacts have been independently certified to meet EN50131 grade 2 and grade 3, so you can be confident in using them.



SC570 Surface Magnetic Contact Grade 2

Share the love with your friend

Complete the form below and we'll email your friend about this product

You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

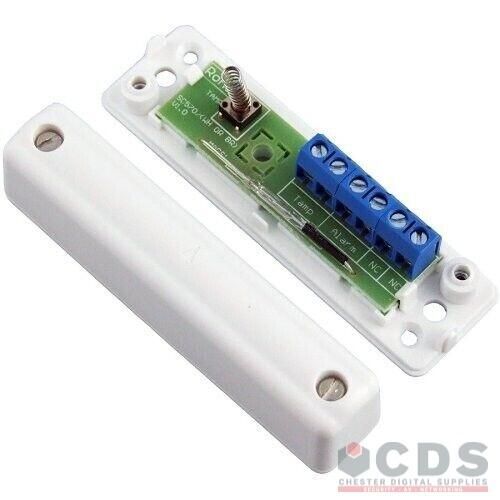

CQR SC570 Surface Magnetic Contact is a type of sensor used in security systems. It is designed to detect the opening or closing of doors, windows, or other access points. The "Grade 2" designation typically refers to the device's compliance with certain industry standards for reliability and performance.

Grade 2 generally indicates that the magnetic contact meets specific requirements for functionality, durability, and resistance to environmental factors. These standards ensure that the device can reliably detect changes in magnetic fields when doors or windows are opened or closed, while also minimizing false alarms caused by external factors such as vibrations or temperature fluctuations.

The SC570 Surface Magnetic Contact, being a Grade 2 device, is typically used in commercial or residential security systems where a higher level of reliability and performance is desired. It can be connected to an alarm system or control panel to trigger an alert or activate certain actions when the monitored access point is breached.

Connections 6 Terminals

Switches 1

Pull-in Gap 27mm

Material High Impact Polystyrene

Contact Size 85 x 25 x 21mm

Magnet Size 85 x 18 x 21mm

Contact Form SPST form A

rev. 2-7/2018

Product codes

• 6 Terminals

• Cover and wall tamper

• Available in white or brown

• EN50131-2-6 Grade 3

• Environmental Class II

Voltage Range 12Vdc

Switching Current 500mA @ 12Vdc

Contact Material Rhodium

Colours White or Brown

Tamper Cover & optional RFMS

Standards EN50131-2-6 Grade 2

Environmental Class II

PDFSpec Sheet
