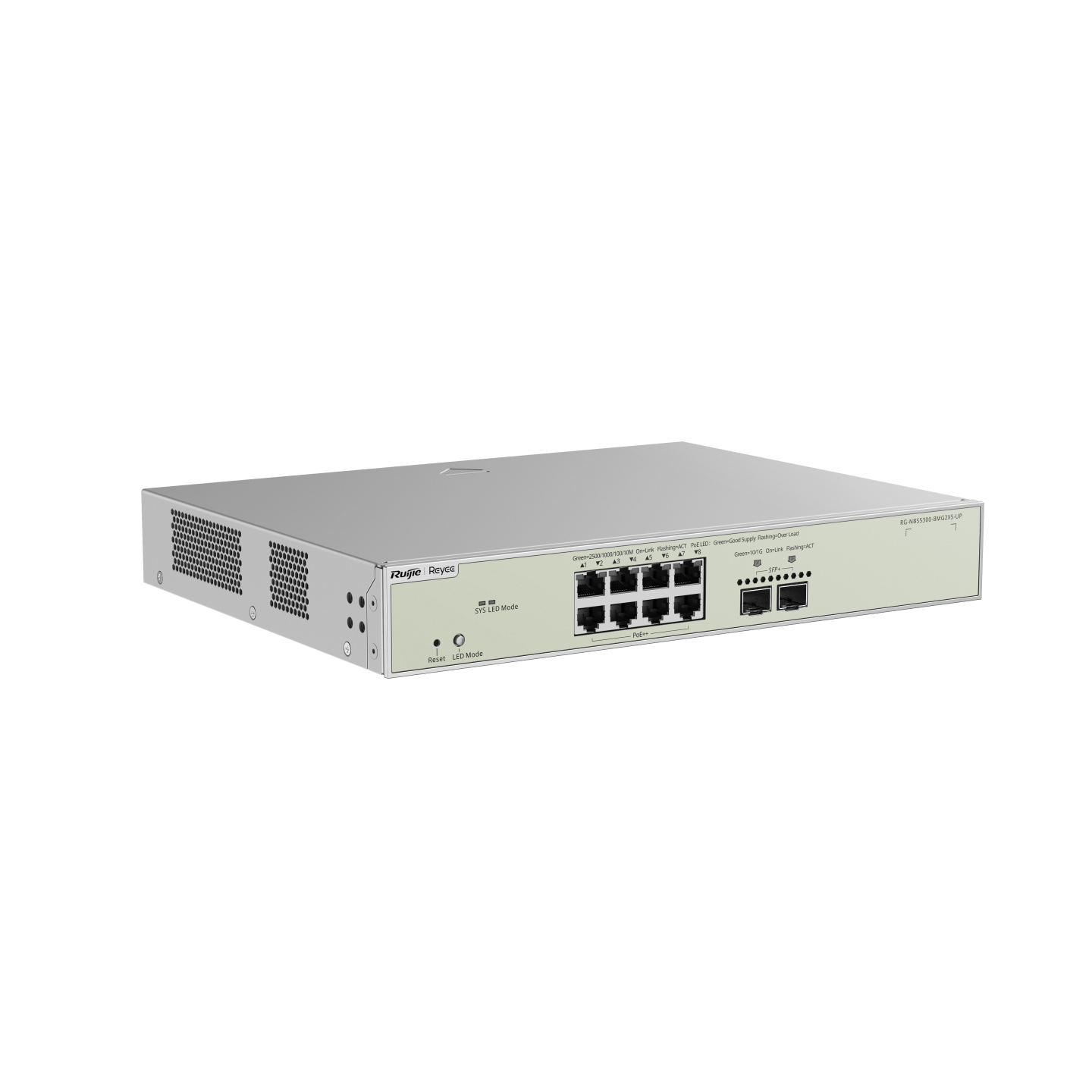

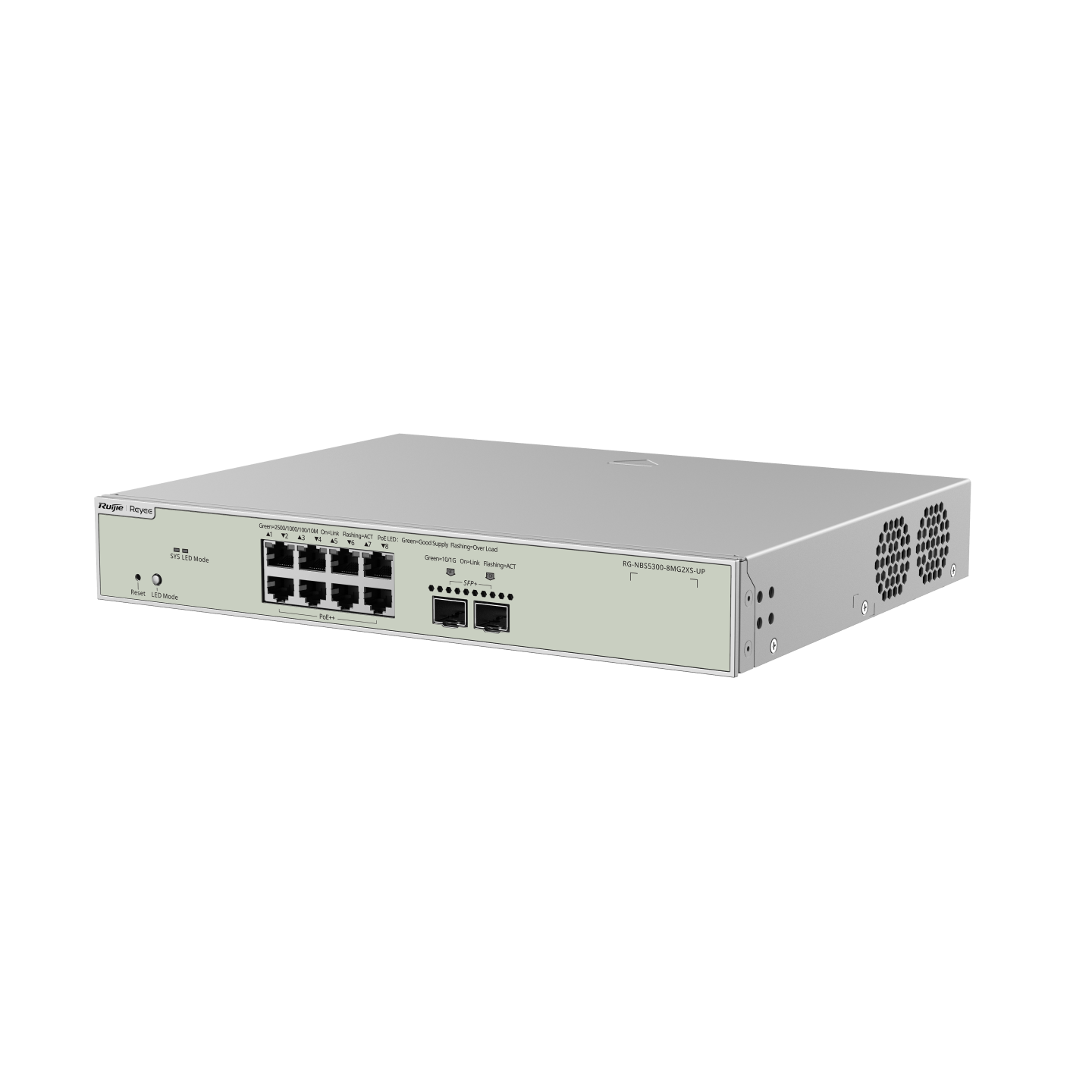

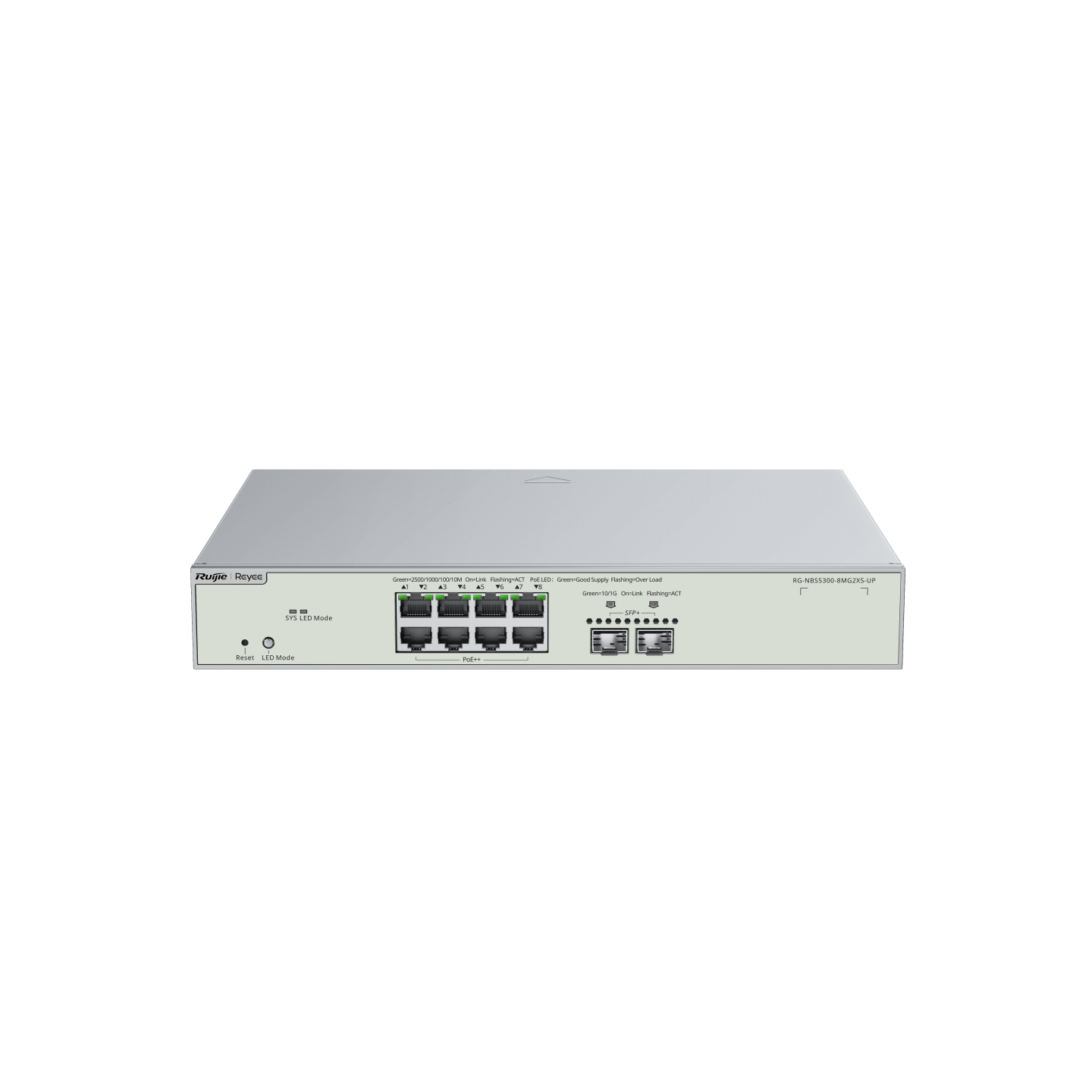

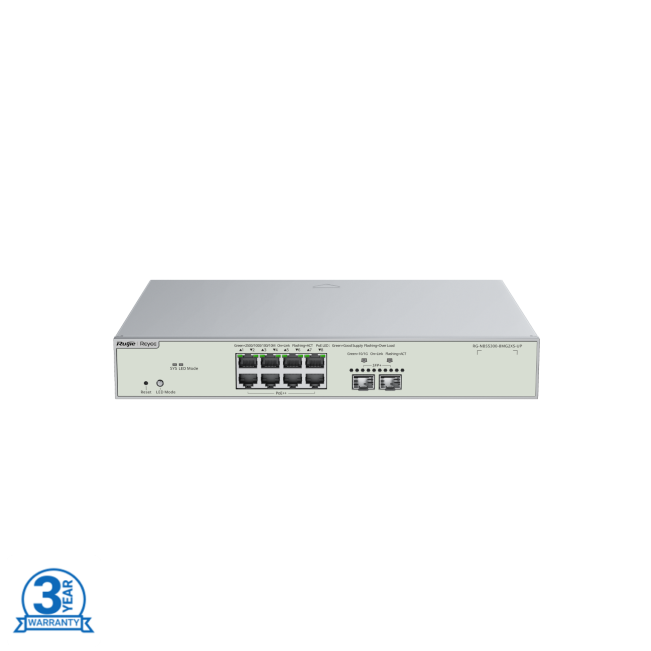

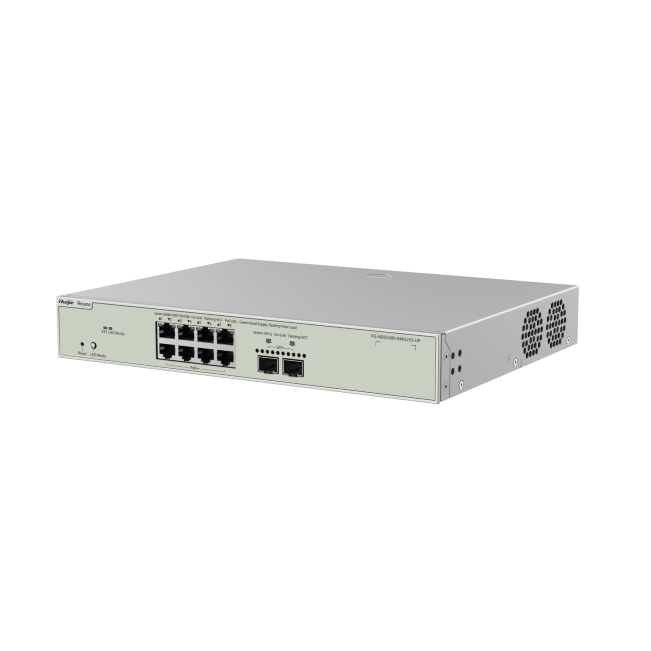

Ruijie Reyee RG-NBS5300-8MG2XS-UP

Ruijie Reyee RG-NBS5300-8MG2XS-UP is a powerful and versatile switch ideal for businesses and organizations that require high-speed connectivity, robust PoE capabilities for modern devices like Wi-Fi 6 APs, advanced network management features (especially cloud-based), and comprehensive security

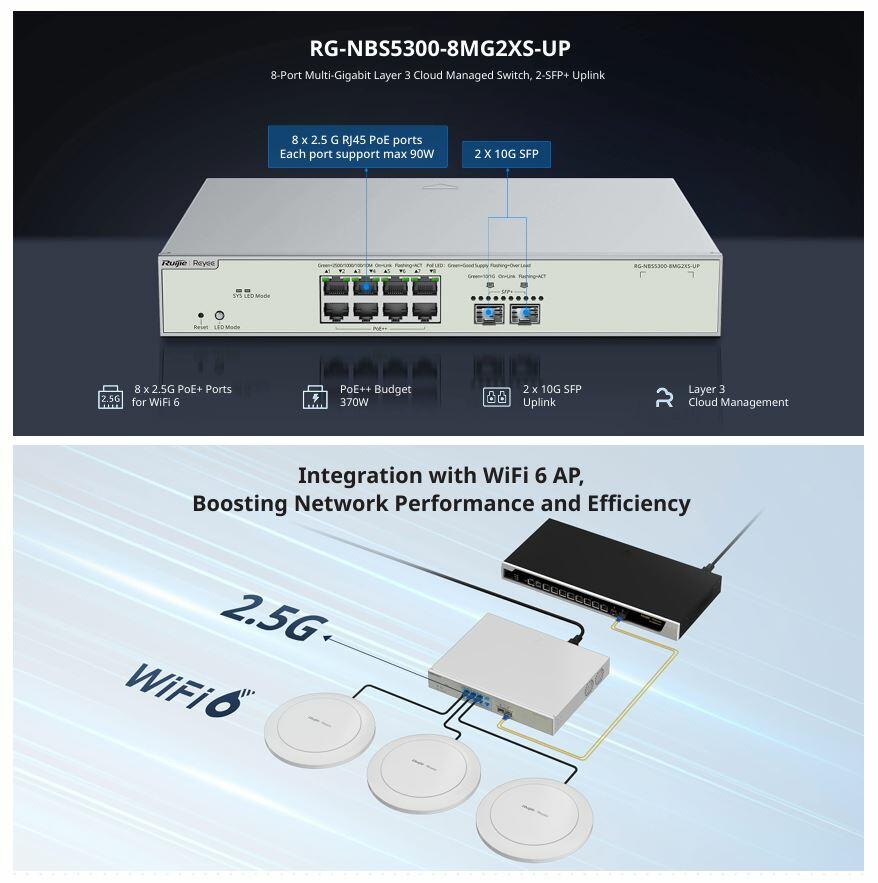

Multi-Gigabit Connectivity: It features 8 ports that support 10/100/1000/2500Base-T (2.5 Gbps) speeds. This is crucial for unleashing the full potential of Wi-Fi 6 access points, which can generate more traffic than traditional Gigabit Ethernet can handle.

Power over Ethernet (PoE++): All 8 multi-gigabit ports support PoE++, meaning they can deliver power to connected devices (like Wi-Fi 6 access points, IP cameras, VoIP phones) over the Ethernet cable itself. It has a substantial total PoE budget of 370W, with each port capable of providing up to 90W.

10 Gigabit SFP+ Uplinks: It includes 2 SFP+ ports that support 10 Gigabit Ethernet (10Gbps). These ports are used for high-speed connections to other network devices, such as core switches or servers, providing ample bandwidth for network uplinks.

Layer 3 Management: Being a Layer 3 switch, it can perform routing functions, which means it can intelligently forward traffic between different VLANs and IP subnets without needing to send it to a dedicated router, improving network efficiency. It supports static routing, RIP, RIPng, OSPFv2, and OSPFv3.

Cloud Management: A significant feature is its "lifetime management on Ruijie Cloud." This allows for remote configuration, monitoring, and maintenance of the switch from anywhere, simplifying network management and reducing the need for on-site presence.

Advanced Security Features: It incorporates various security measures to protect the network, including:

IP-MAC-Port Binding: Binds specific IP addresses and MAC addresses to certain ports to prevent unauthorised access.

Access Control Lists (ACLs): Filters network traffic based on defined rules.

Port Security: Restricts the number of MAC addresses that can be learned on a port.

DoS Defend (Denial of Service Defense): Protects against various DoS attacks.

Storm Control: Prevents broadcast, multicast, or unknown unicast storms from overwhelming the network.

DHCP Snooping: Prevents rogue DHCP servers from issuing IP addresses.

802.1X and Radius Authentication: Provides centralised user authentication for network access.

VLAN Support: It supports up to 4094 VLANs (Virtual Local Area Networks), allowing network administrators to segment the network for improved security, performance, and management.
