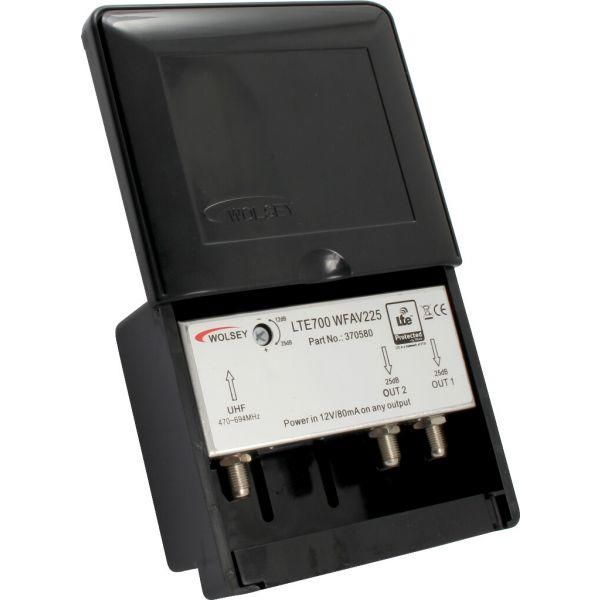

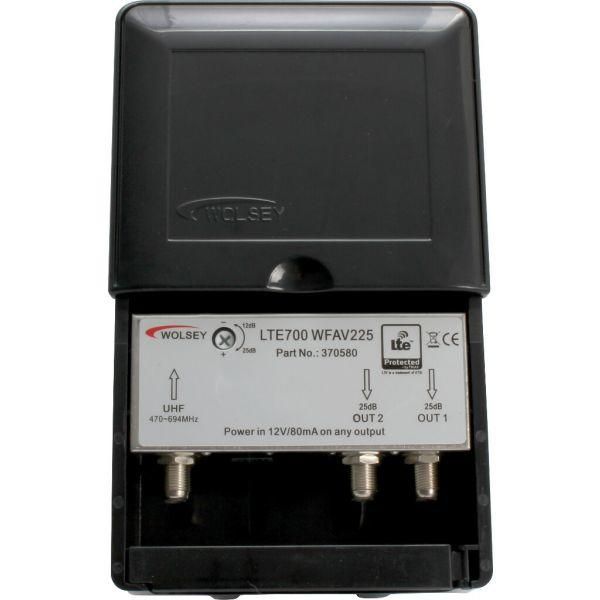

1 Input - 2 output Wideband Masthead Amplifier & Power Supply Kit

LTE 700 WFAV 225

  • Wolsey LTE 700 Masthead Amplifier Kit
  • F-Connector Masthead Amplifier and Power Supply Kit
  • 1 Input 2 Output • 10-25 dB Variable Gain
  • Weatherproof Housing
  • Fully screened enclosure
  • SKU 370580

Need extra coax cable ?

£0.00
£25.08
  • Add 5 x F Type Twist-on Connector with O-ring

QTY


Triax LTE700 WFAV 225 370580

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

Be one of the first to know!

We’re sorry we’re out of stock but we can let you know as soon as it's available if you enter your email address below.

Wolsey masthead amplifier kit is a device used to boost the signal of a TV aerial. It is typically mounted on the mast of the aerial, close to the digital antenna, and is designed to amplify weak signals before they reach the TV set.

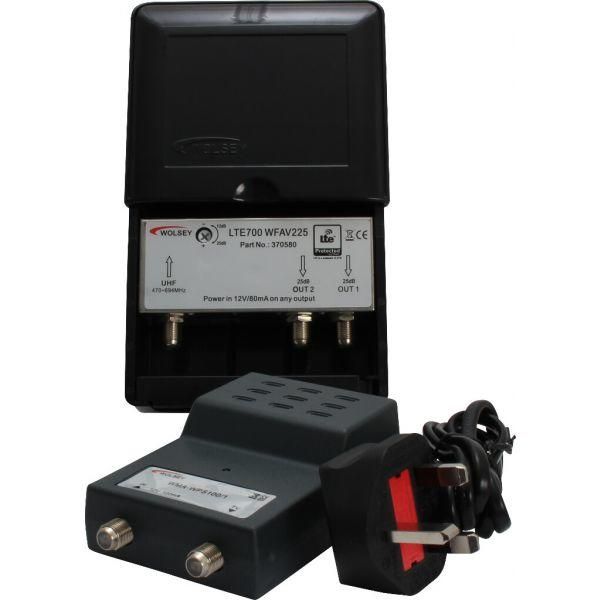

The kit consists of several components, including an amplifier unit, power supply. The amplifier unit is housed in a weatherproof enclosure and is designed to be installed at the top of the aerial mast. It receives the signal from the aerial, amplifies it, and then sends it down the coaxial cable to the TV set.

The power supply is used to power the amplifier unit, and is located inside the house near the TV set. It plugs into a standard electrical outlet and then connects to the amplifier unit using a low-voltage cable. The coaxial cable connects the amplifier unit to the TV set, and the connectors are used to attach the various components together.

Aerial masthead amplifier kits are particularly useful in areas with weak TV signals or where the aerial is located far from the TV set. They can help improve the quality and strength of the signal, resulting in clearer and more reliable TV reception.

ORDER INFORMATION

EAN Number    5702663705807

CONNECTORS

Number of inputs    1

Number of outputs    2

ELECTRICAL

Impedance    75 Ω

FREQUENCY RANGE

Band    UHF

Input 1 - frequency    470...694 MHz

Input 1 - channels    21...48

LTE protection    @ 700Mhz

GAIN

Input 1 - gain    10...25 dB

Input 1 - noise figure    3,1 dB

RETURN LOSS

Return Loss    10 Typ dB

CHARACTERISTICS

Max. Output level (@ -60dB IMD)    97 dBµV

OPERATIONAL

DC Operating voltage    12 VDC

DC Current consumption    100 mA

MECHANICAL

Colour    Black

Product Height    215 mm

Product Width    120 mm

Product Depth    60 mm

Packaging Height    0.060 m

Packaging Width    0.220 m

Packaging Depth    0.120 m

Packaging Volume    0.002 m3

Net Weight    0.540 kg

Tara Weight    0.065 kg

Total Weight    0.605 kg

Remarks    Kit includes WPS 100 Power Supply, 12VDC, 100mA Max Fully screened
